Memory Seat Switch Connector End View
Memory Seat Switch Connector End View

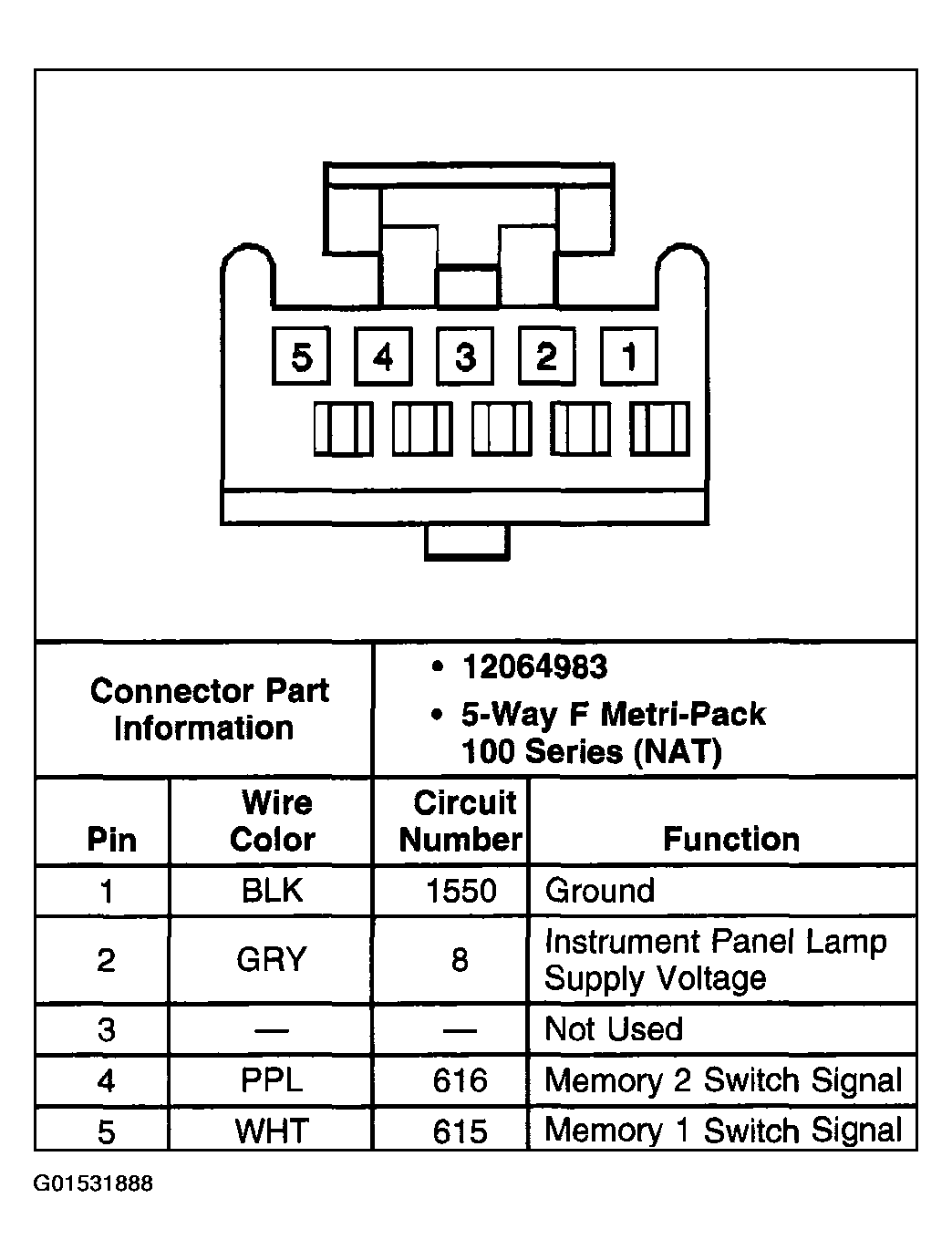

Fig 1: Memory Seat Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
