Component Locator
›
Seat Belt Connector End Views
Seat Belt Connector End Views

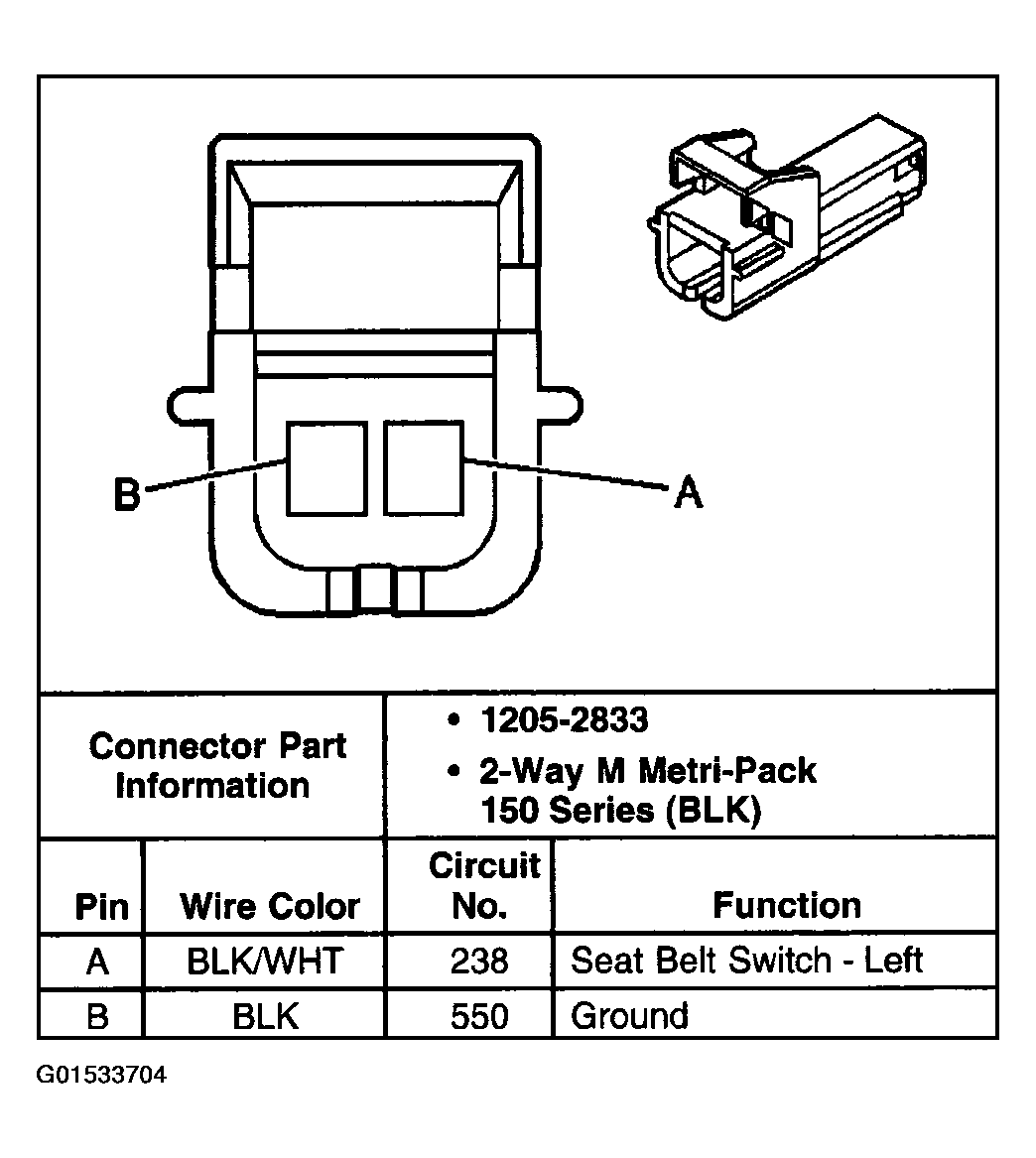

Fig 1: Seat belt Switch-Driver Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
