Power Steering Pump Disassembled View (CB Series Pump)

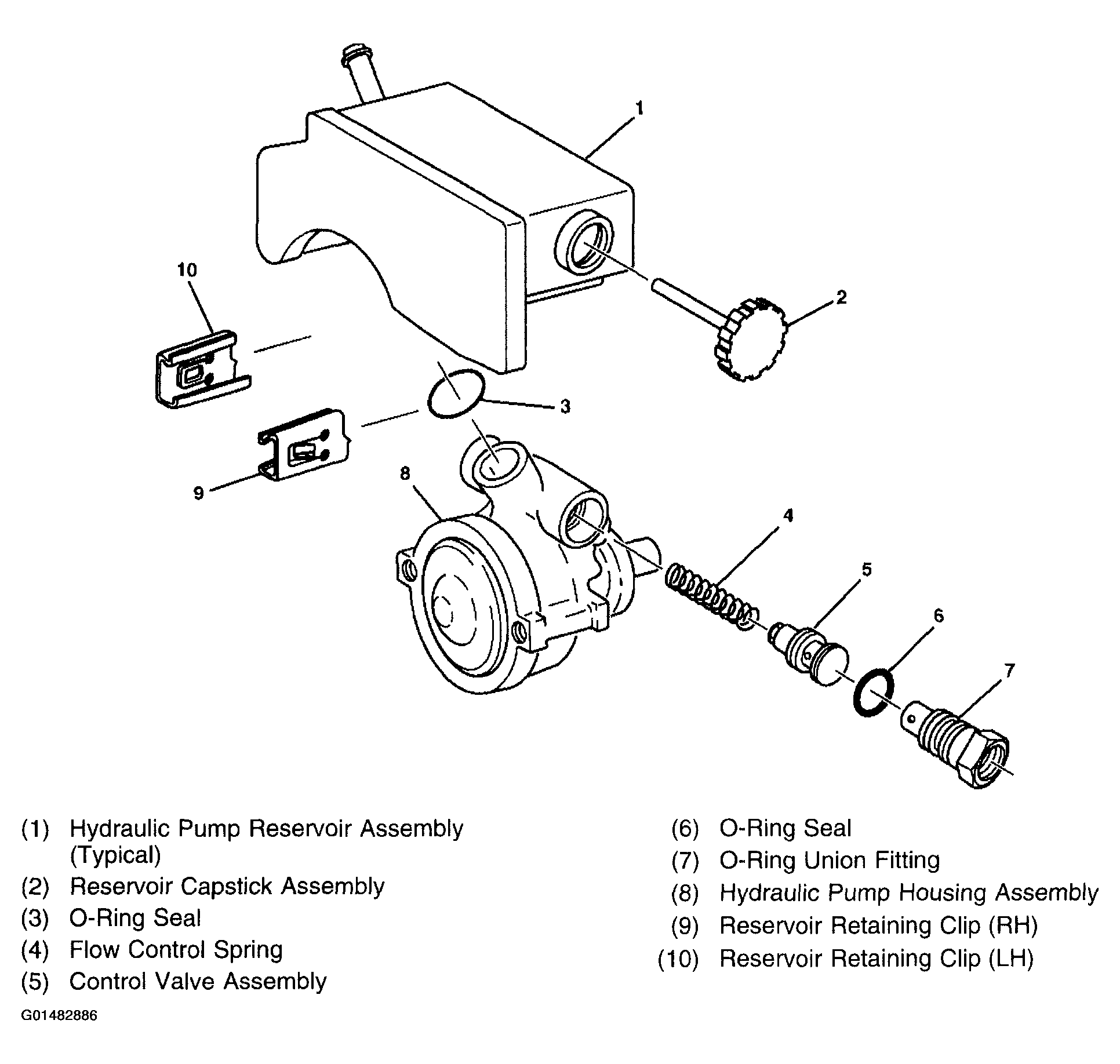

Fig 1: Power Steering Pump Disassembled View - CB Series
G01482886Courtesy of GENERAL MOTORS CORP.
