Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Airbag.
Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT
Remove the shift lever assembly. Refer to SHIFT LEVER REPLACEMENT .
With a screwdriver carefully pry the automatic transmission shift lock control away from the steering column jacket.

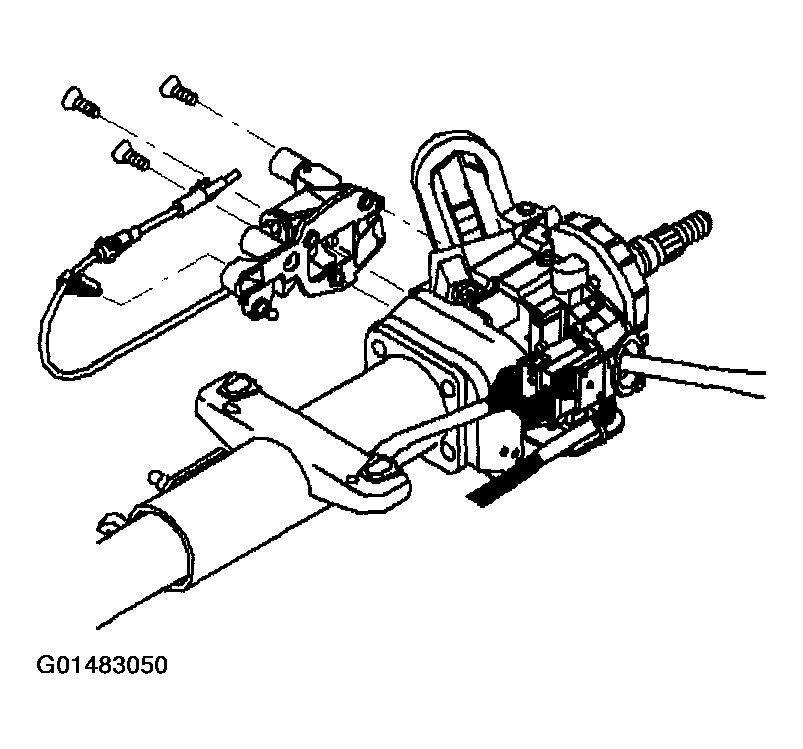

Fig 1: Replacing Linear Shift Assembly
Courtesy of GENERAL MOTORS CORP.
The lock cylinder should be in the OFF-LOCK position.
Important: Do not remove the tape on the park lock cable. If so, the liner shift assembly must be replaced.
Insert a small screwdriver into the slot on the ignition lock cylinder case and push against the locking tab to remove the park lock cable assembly(1).

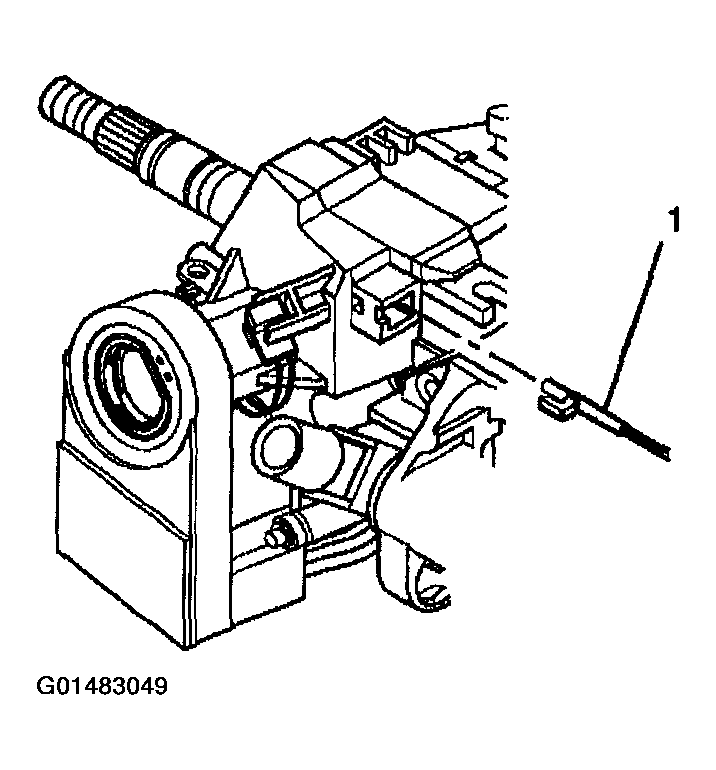

Fig 2: Removing Park Lock Cable Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the 3 flat head 6-lobed socket tap screws from the linear shift assembly.
Remove the linear shift assembly.

Fig 3: Removing 3 Flat Head 6-Lobed Socket Tap Screws From Linear Shift Assembly
Courtesy of GENERAL MOTORS CORP.
