Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

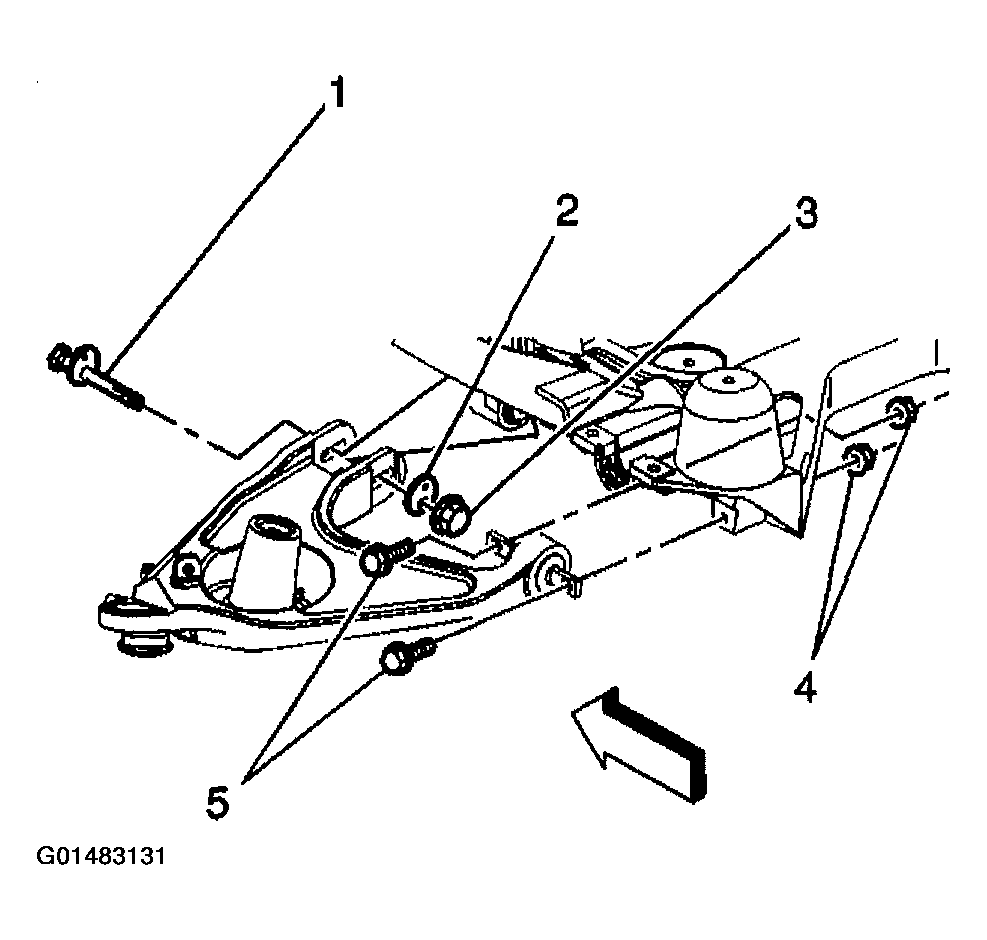

- Tighten the lower control arm mounting nuts (3, 4).
Tighten
- Tighten the nut (3) to 125 N.m (107 lb ft).
- Tighten the nut (4) to 50 N.m (37 lb ft).
- Test drive the vehicle.
