Wheel Alignment Specifications

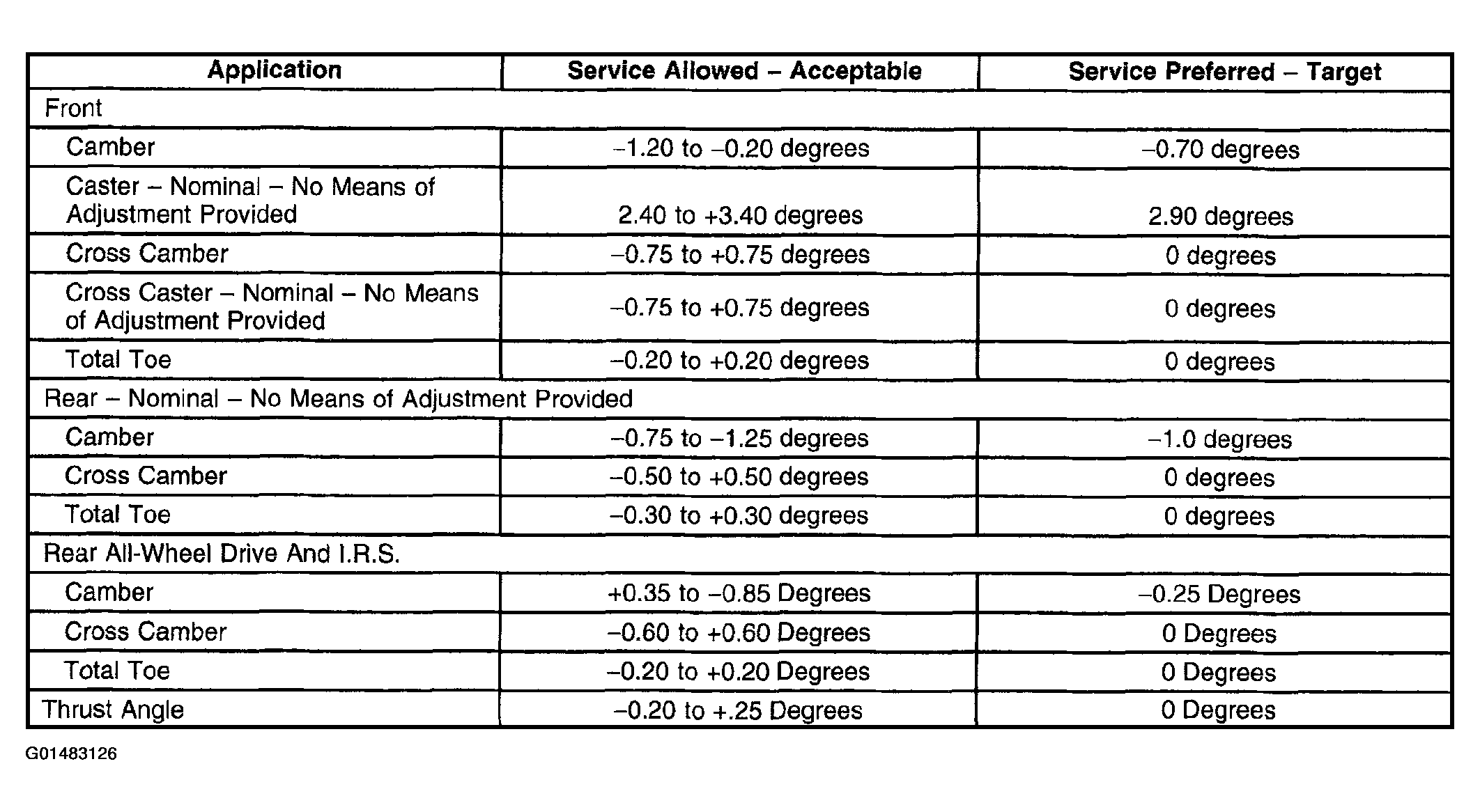

Fig 1: Wheel Alignment Specifications
G01483126Courtesy of GENERAL MOTORS CORP.
