Installation Procedure

  1. Install the O-ring to the speed sensor, if removed.
  2. Install the speed sensor (1) to the transfer case.

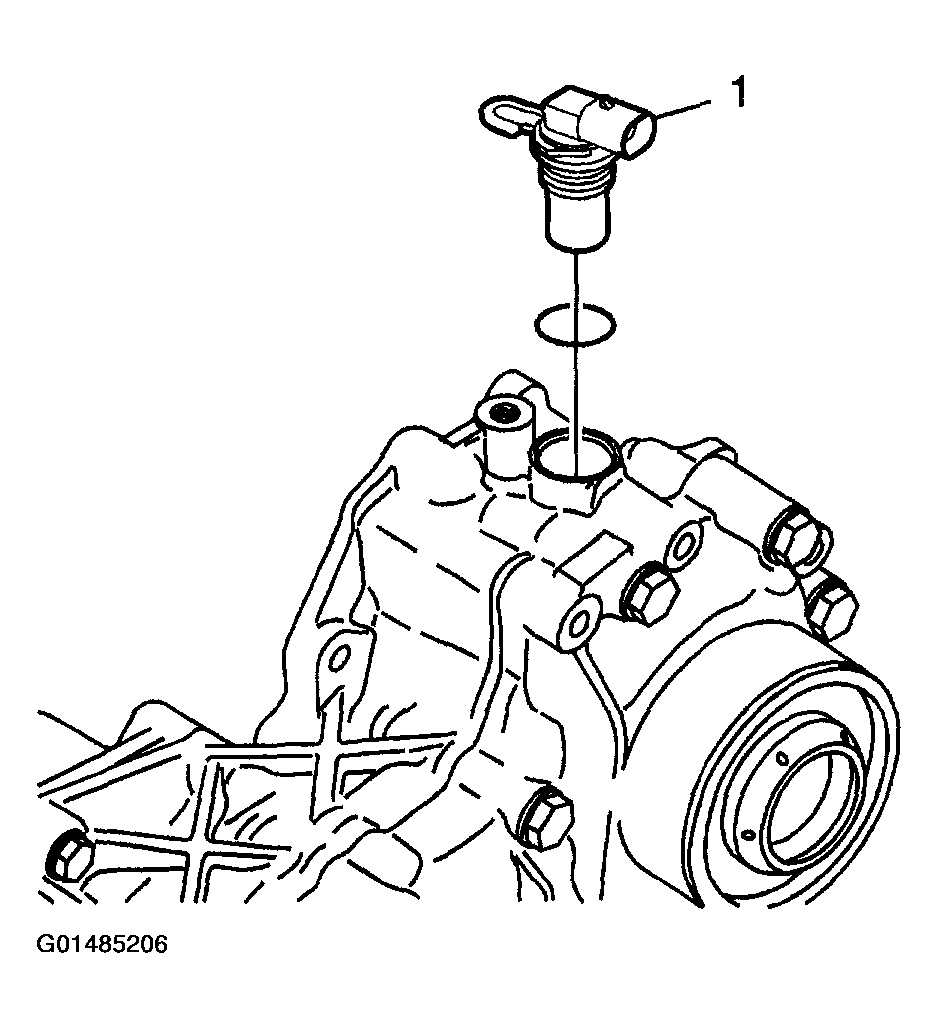

    Fig 1: Installing Speed Sensor To Transfer Case
    G01485206Courtesy of GENERAL MOTORS CORP.
  3. Position the pinion housing vent hose (2) and mounting bracket to the speed sensor bolt boss.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the speed sensor bolt (3) to the transfer case.

    Tighten

    Tighten the bolt to 30 N.m (22 lb ft).

  5. Connect the electrical connector to the speed sensor.
  6. Lower the vehicle.

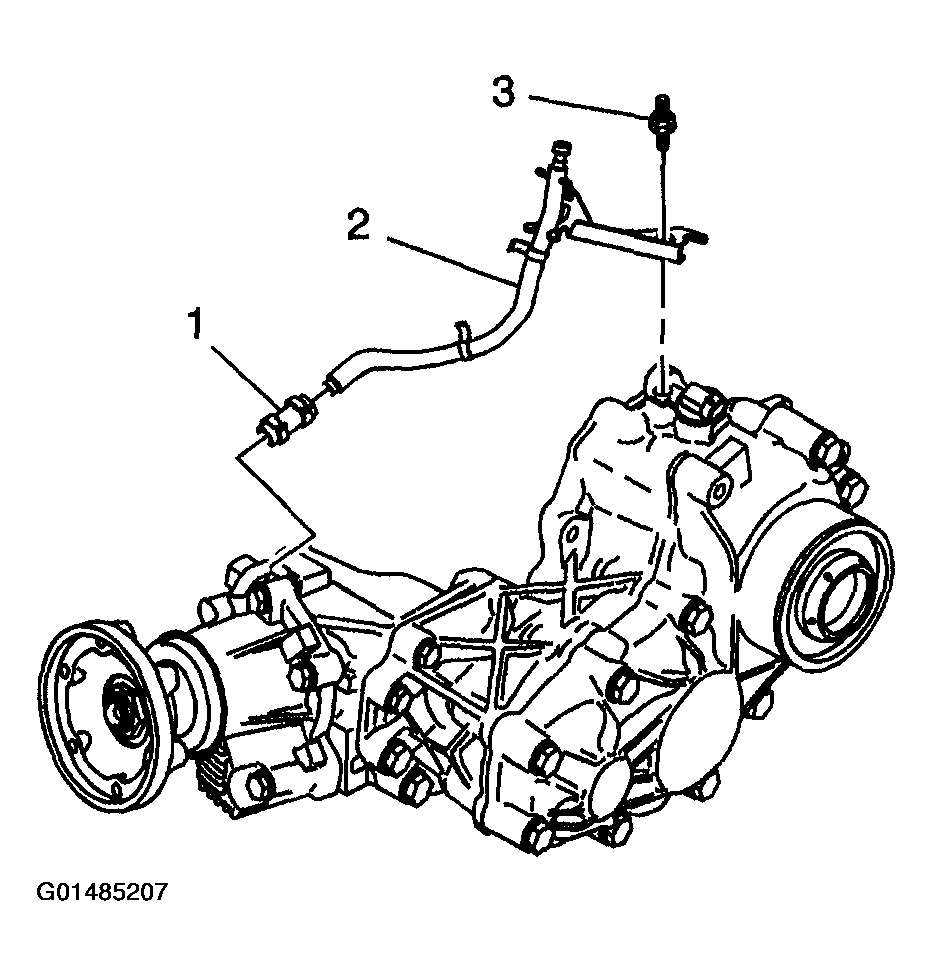

    Fig 2: Installing Speed Sensor Vent Hose Bolt To Transfer Case
    G01485207Courtesy of GENERAL MOTORS CORP.
