Installation Procedure

  1. Install the transaxle brace.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transaxle brace bolts.

    Tighten

    Tighten the bolts to 47 N.m (35 lb ft).

  3. Lower the vehicle.

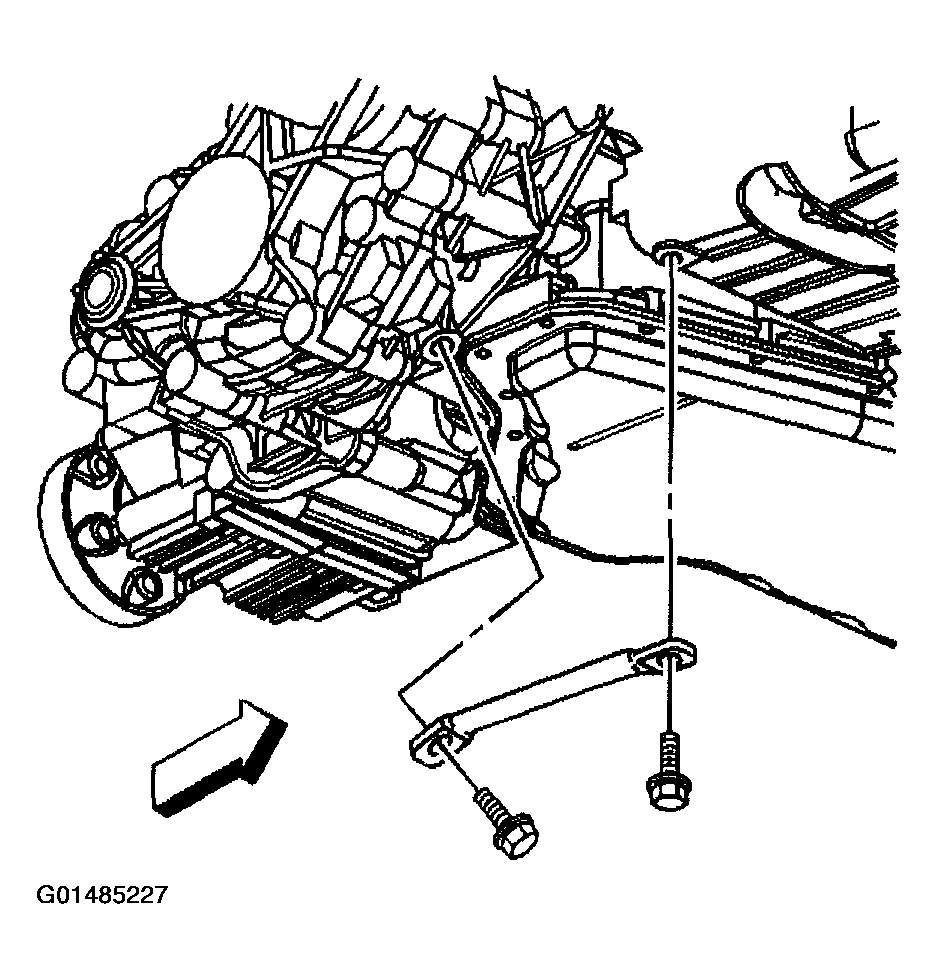

    Fig 1: Installing Transaxle Support Brace
    G01485227Courtesy of GENERAL MOTORS CORP.
