Rear Video/Audio/HVAC Module Connector End View - C2

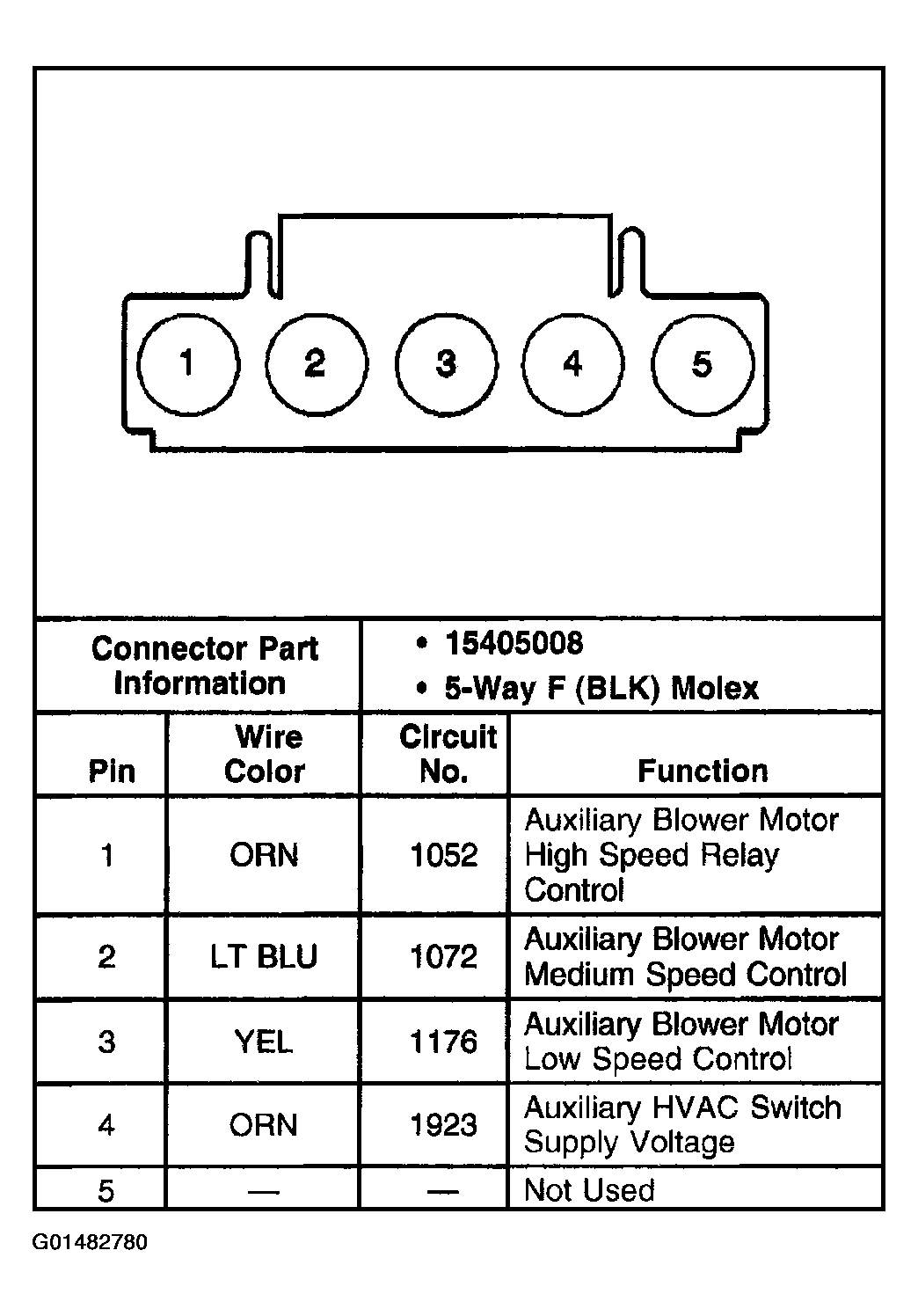

Fig 1: Rear Video/Audio/HVAC Module Connector End View - C2
G01482780Courtesy of GENERAL MOTORS CORP.


Fig 1: Rear Video/Audio/HVAC Module Connector End View - C2
G01534248Courtesy of GENERAL MOTORS CORP.
