Blower Motor Connector End View
Blower Motor Connector End View

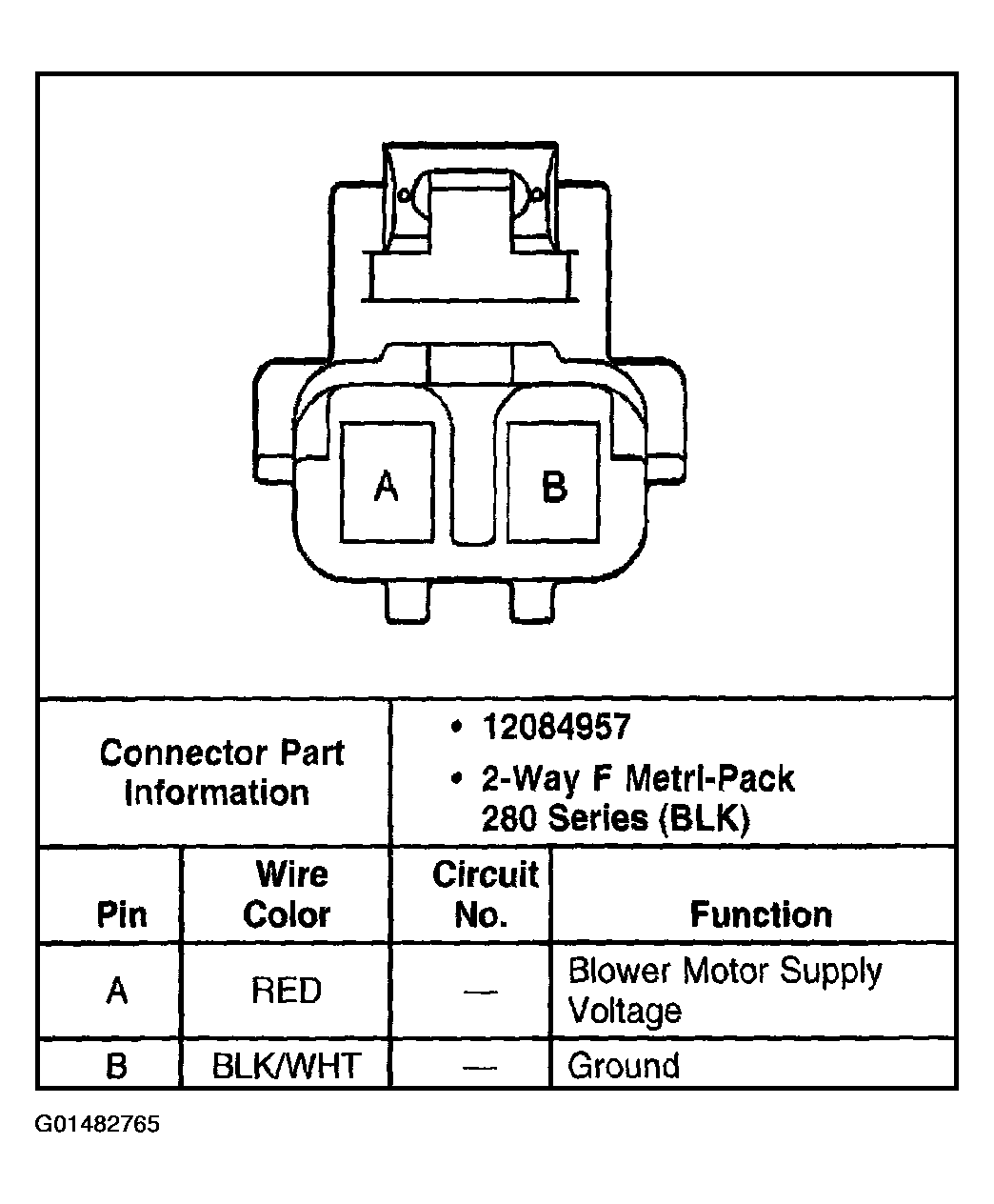

Fig 1: Blower Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
