Installation Procedure

  1. If removed, install the coolant pump to the engine front cover. Refer to WATER PUMP REPLACEMENT  in Engine Cooling.
  2. If removed, install the crankshaft position sensor to the engine front cover. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  or ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  3. If removed, install the drive belt shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the drive belt shield bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

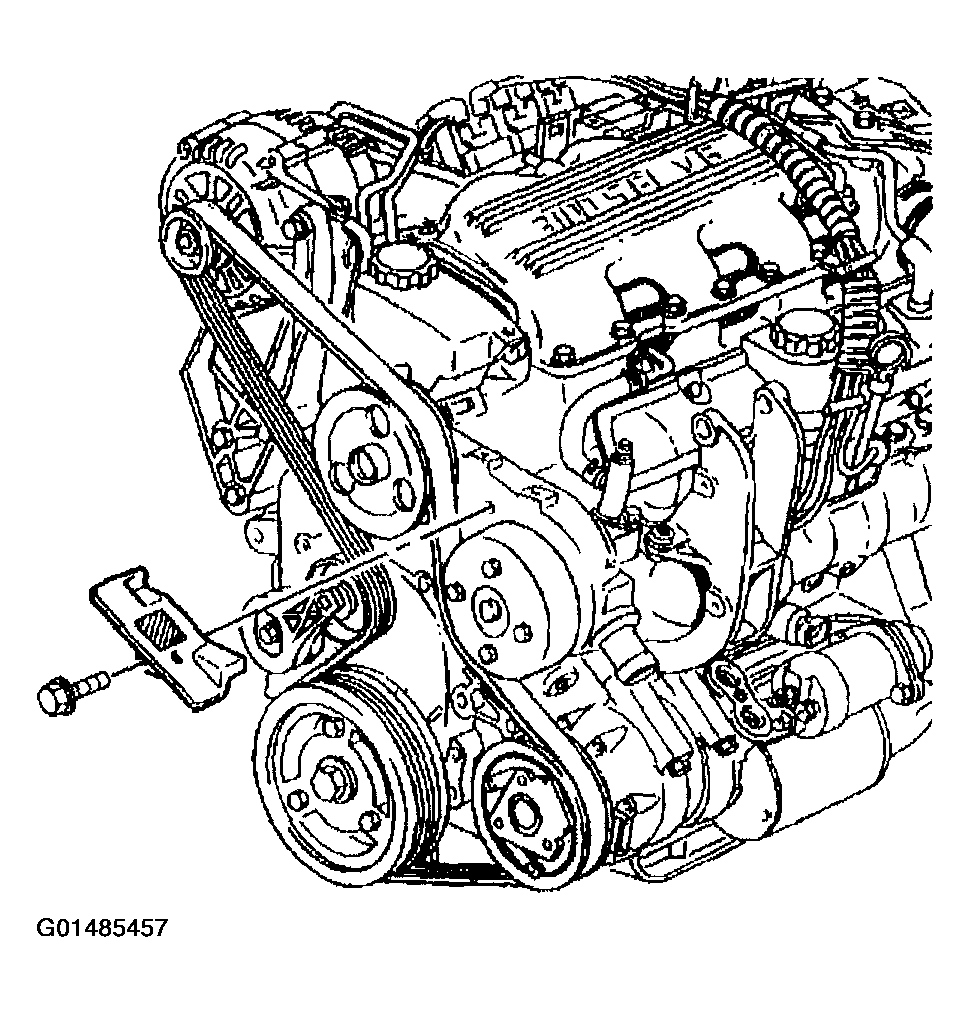

    Fig 1: Installing Drive Belt Shield And Bolt
    G01485457Courtesy of GENERAL MOTORS CORP.
  5. Install the engine front cover gasket.
  6. Apply sealer GM P/N 12346004 or the equivalent to both sides of the lower tabs of the engine front cover gasket.
    Fig 2: Identifying Engine Front Cover Gasket
    G01485458Courtesy of GENERAL MOTORS CORP.
  7. Install the engine front cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the engine front cover bolts (3).

    Tighten

    Tighten the bolts (3) to 55 N.m (41 lb ft).

  9. Install the engine front cover bolt (1).

    Tighten

    Tighten the bolt (1) to 47 N.m (35 lb ft).

  10. Install the engine front cover bolts (2).

    Tighten

    Tighten the bolts (2) to 21 N.m (16 lb ft).

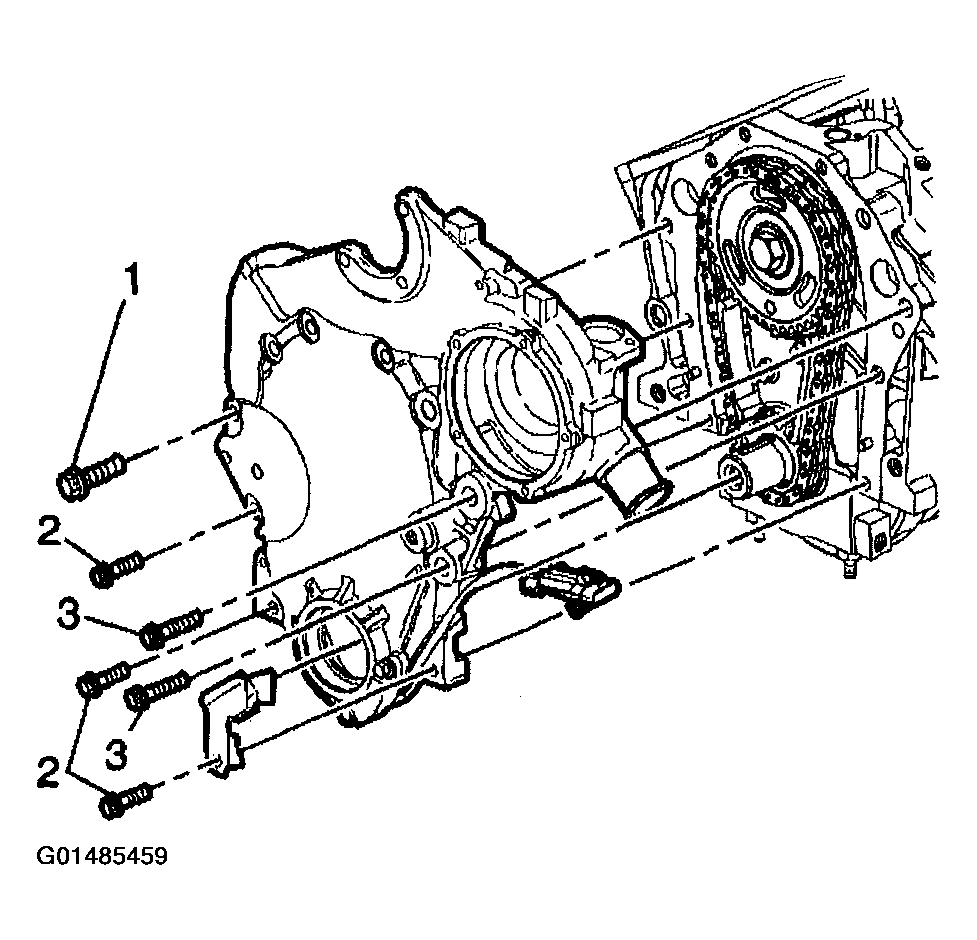

    Fig 3: Installing Engine Front Cover Bolts
    G01485459Courtesy of GENERAL MOTORS CORP.
  11. Install the lower crankshaft position sensor wiring harness bracket to the engine front cover

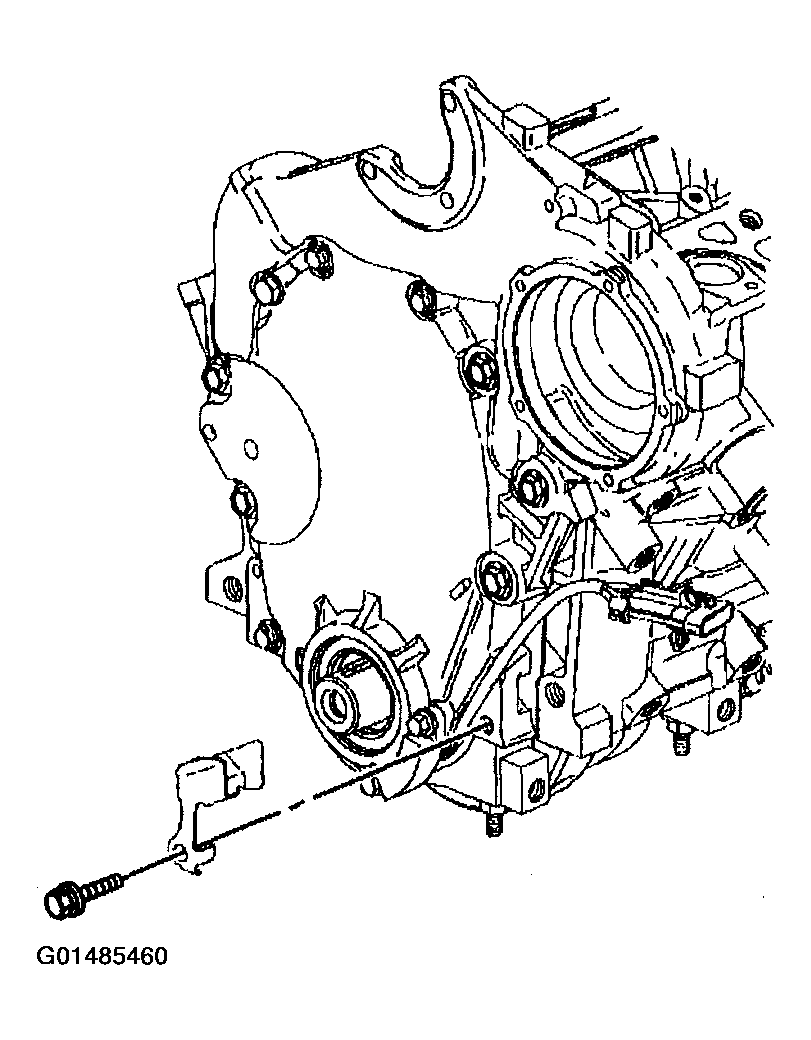

    Fig 4: Installing Lower Crankshaft Position Sensor Wiring Harness Bracket
    G01485460Courtesy of GENERAL MOTORS CORP.
  12. Install the upper crankshaft position sensor wiring harness bracket to the engine front cover
  13. Install the coolant pump pulley. Refer to WATER PUMP REPLACEMENT  in Engine Cooling.
  14. Connect the radiator outlet hose to the coolant pump. Refer to RADIATOR HOSE REPLACEMENT - OUTLET  in Engine Cooling.
  15. Connect the thermostat bypass pipe to the engine front cover. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT  in Engine Cooling.
  16. Install the power steering pump with lines. Refer to POWER STEERING PUMP REPLACEMENT  in Power Steering System.
  17. Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT   .
  18. Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT   .

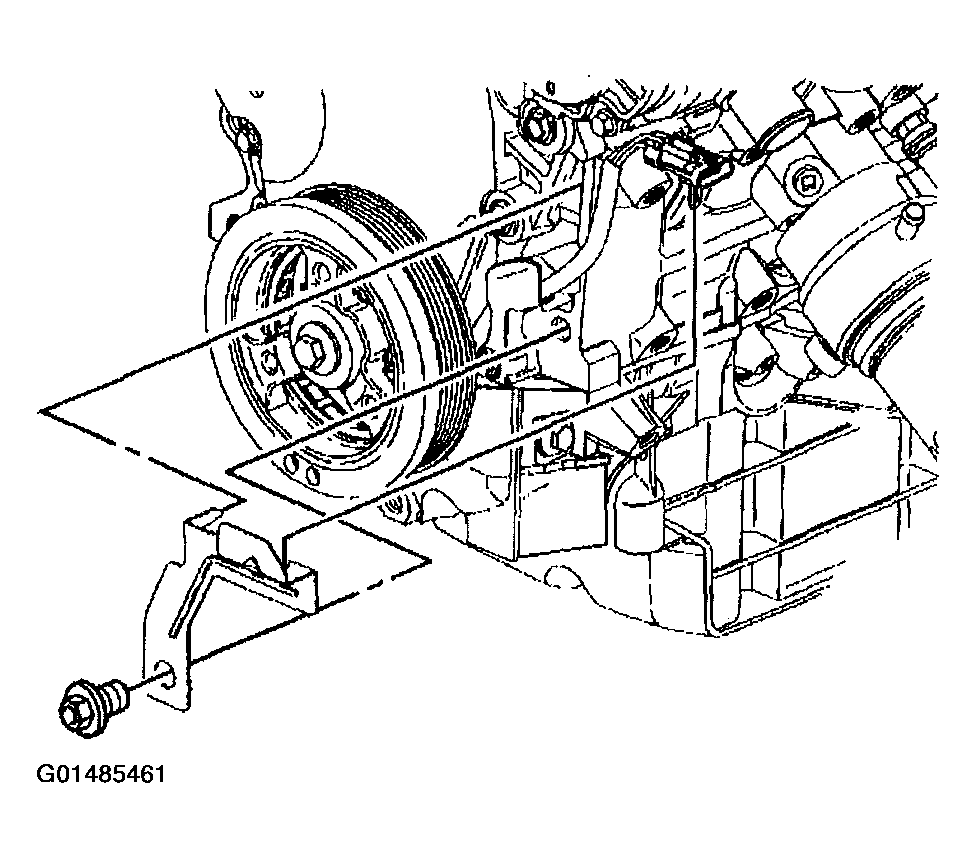

    Fig 5: Installing Upper Crankshaft Position Sensor Wiring Harness Bracket
    G01485461Courtesy of GENERAL MOTORS CORP.
  19. Fill the engine with NEW engine oil. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT   .
  20. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM  in Engine Cooling.
