Schematic and Routing Diagrams

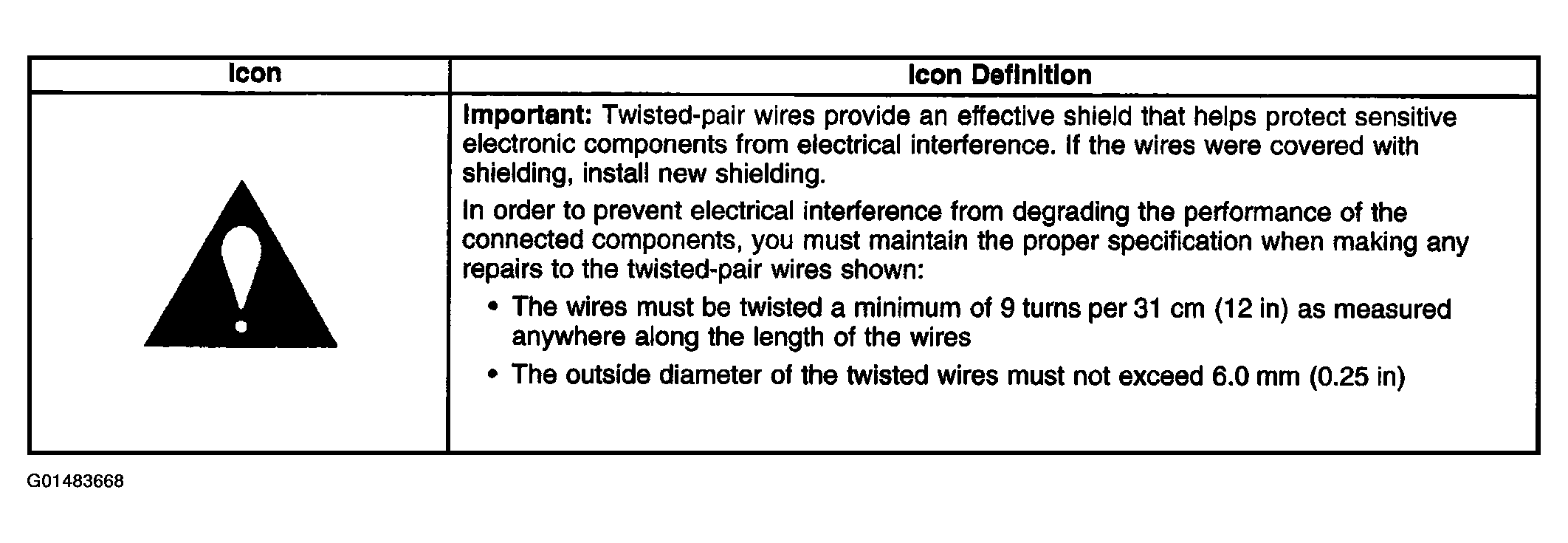

Fig 1: ABS Schematic Icons

Courtesy of GENERAL MOTORS CORP.

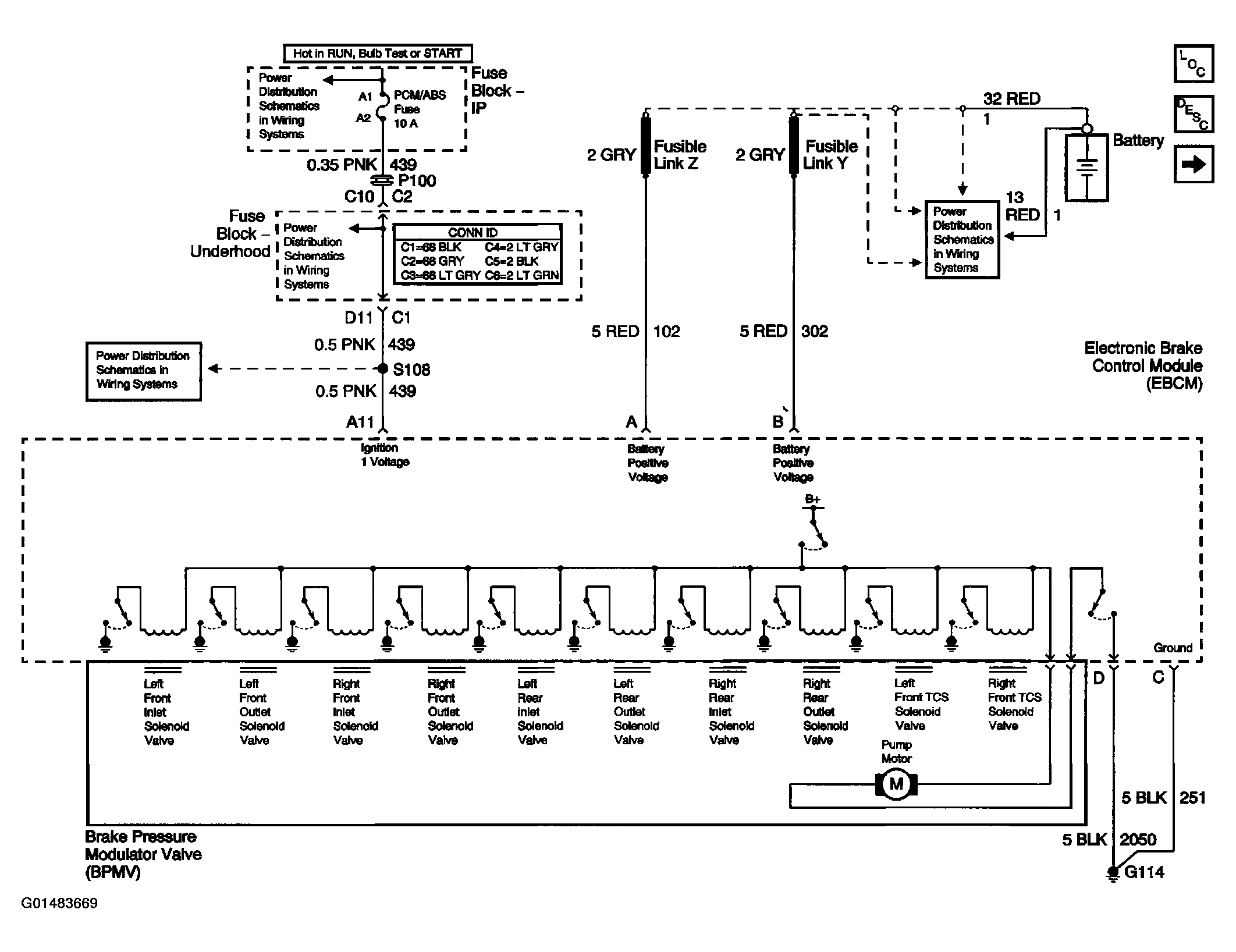

Fig 2: EBCM, Power and Ground Schematics

Courtesy of GENERAL MOTORS CORP.

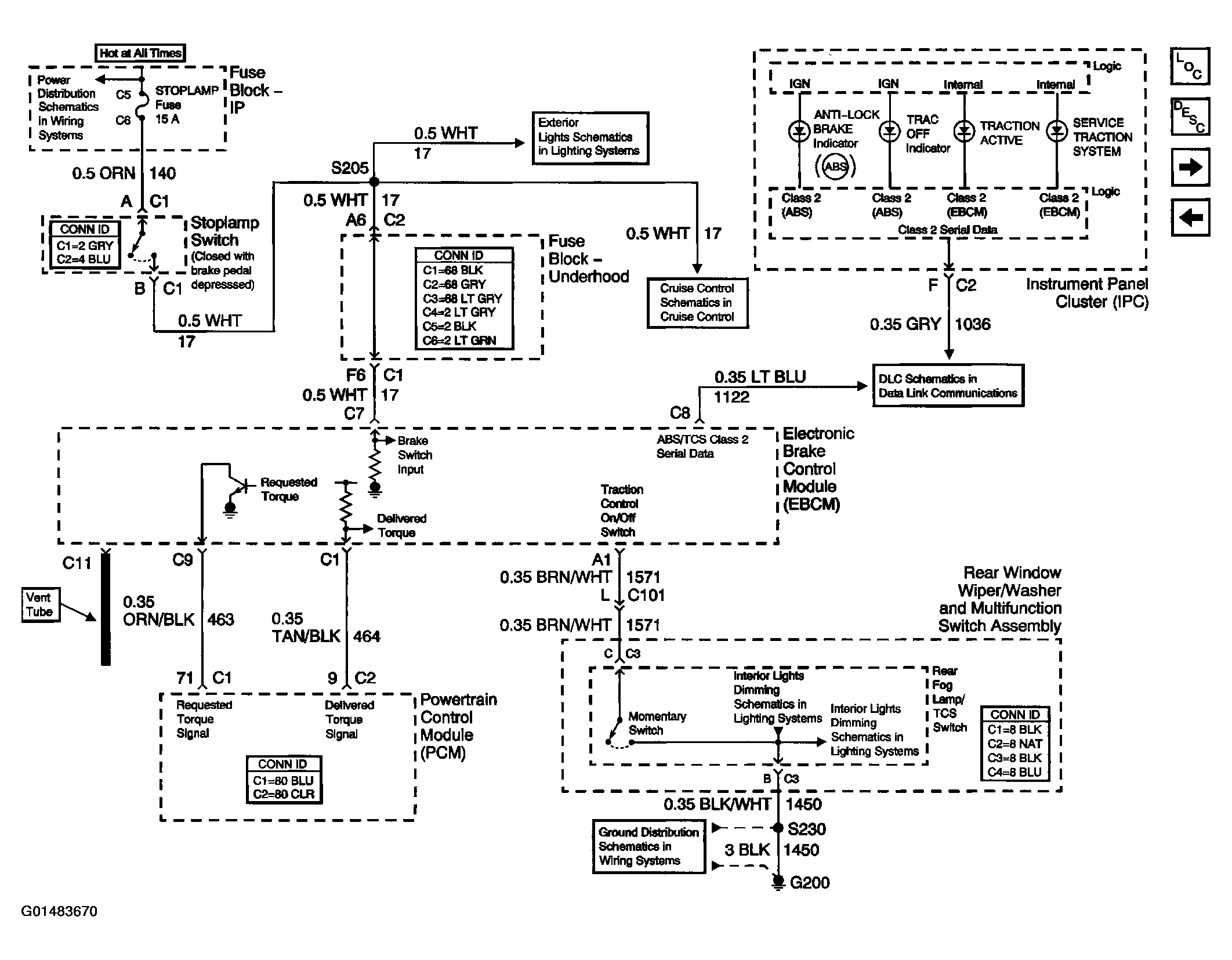

Fig 3: Data Link, MIL, PCM, and Stop Lamp Switch Schematics

Courtesy of GENERAL MOTORS CORP.

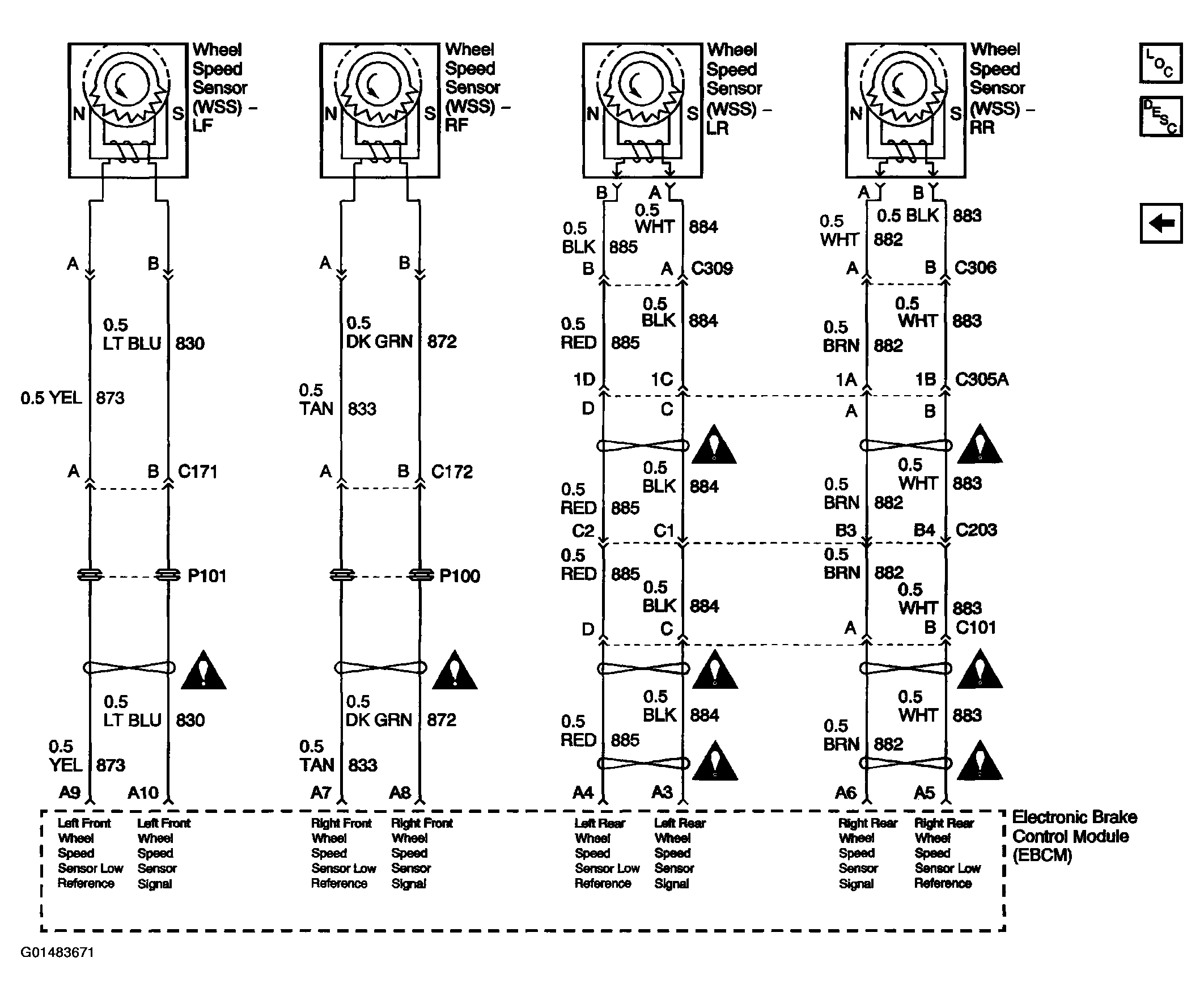

Fig 4: Wheel Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.
