Horns Component Views

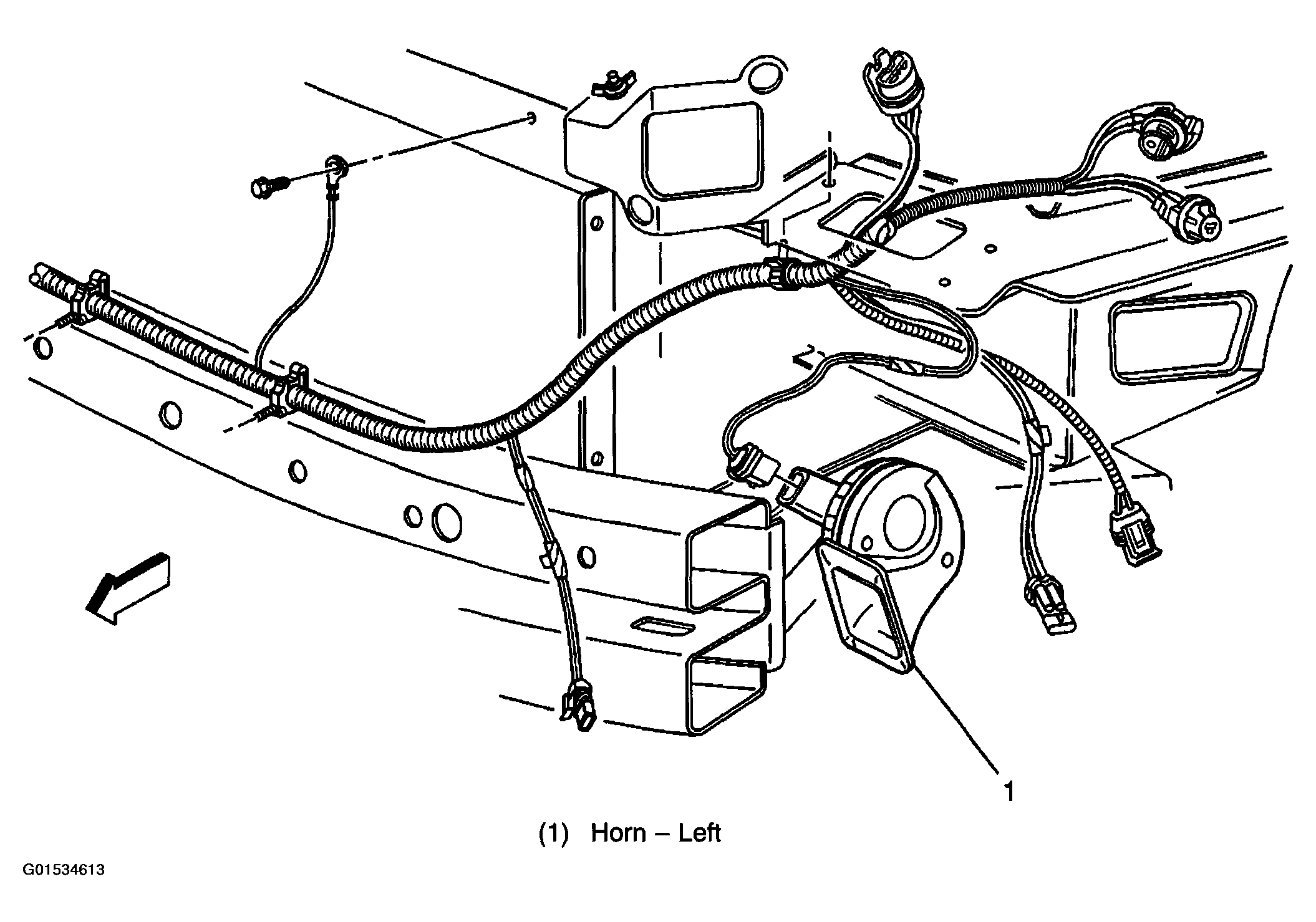

Fig 1: Lower Left Side of Engine Compartment Component View
G01534613Courtesy of GENERAL MOTORS CORP.

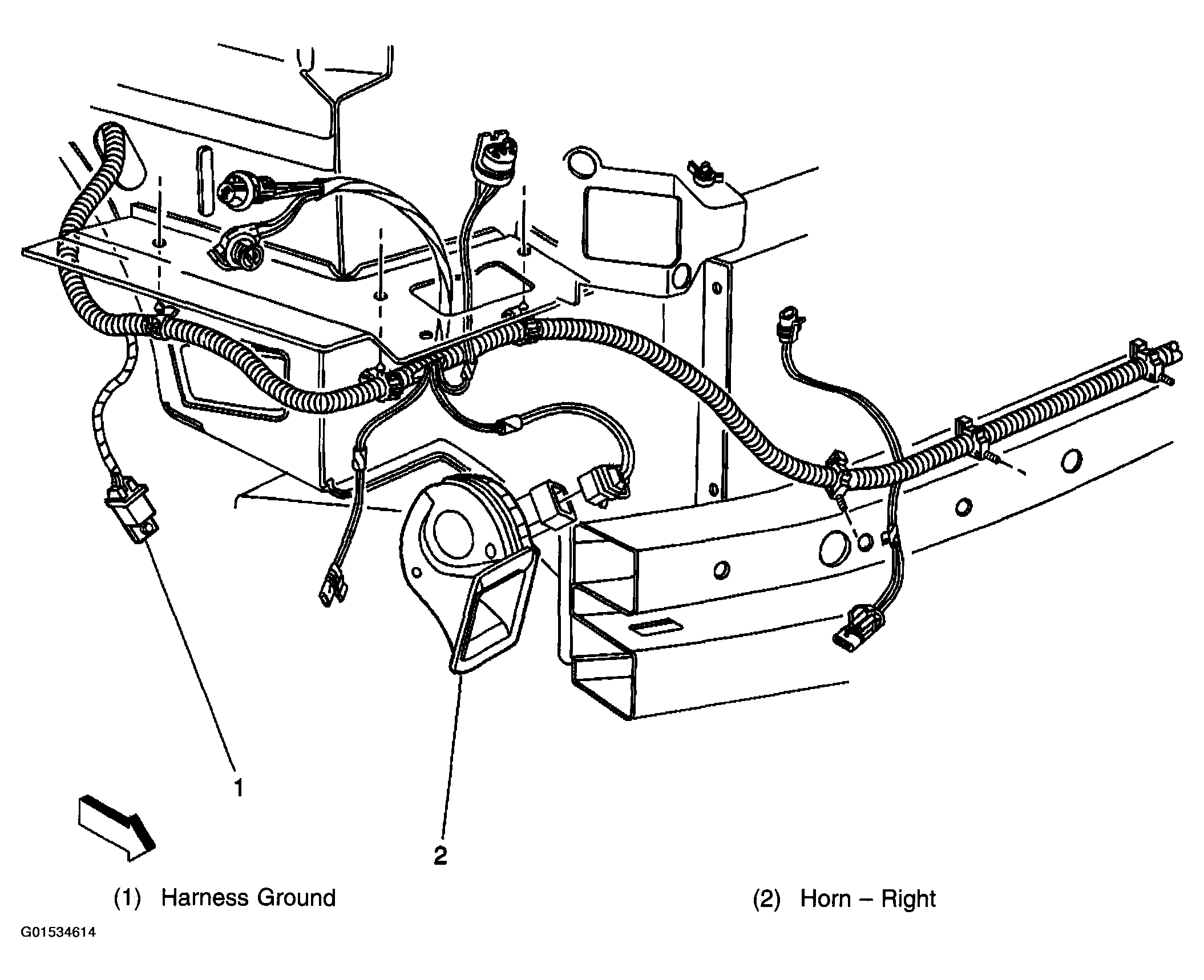

Fig 2: Lower Right Side of Engine Compartment Component View
G01534614Courtesy of GENERAL MOTORS CORP.
