Installation Procedure

  1. Install the power window switch to the switch mounting plate.
  2. Connect the electrical connectors.

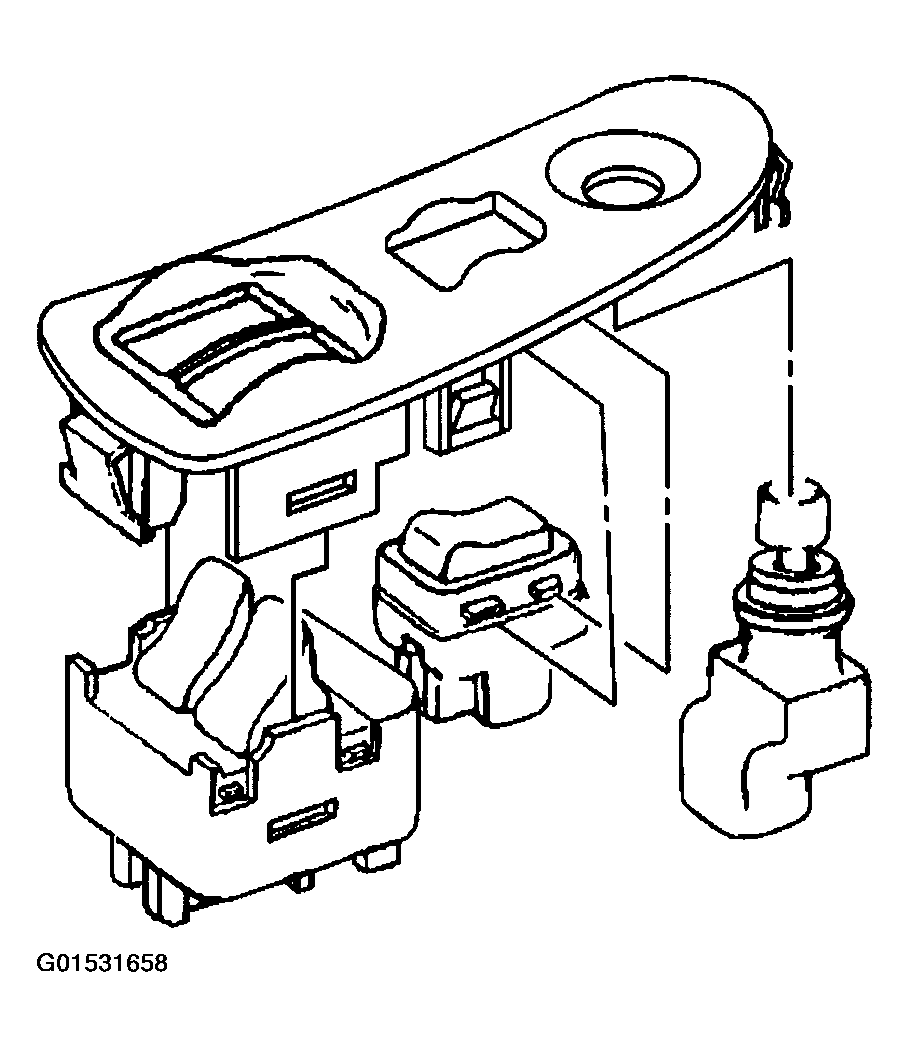

    Fig 1: Installing Switch Mounting Plate To Front Door Trim Panel
    G01531658Courtesy of GENERAL MOTORS CORP.
  3. Install the switch mounting plate to the front door trim panel.

    Insert the front edge into the trim panel and snap down the rear of the switch mounting plate to the front door trim panel.

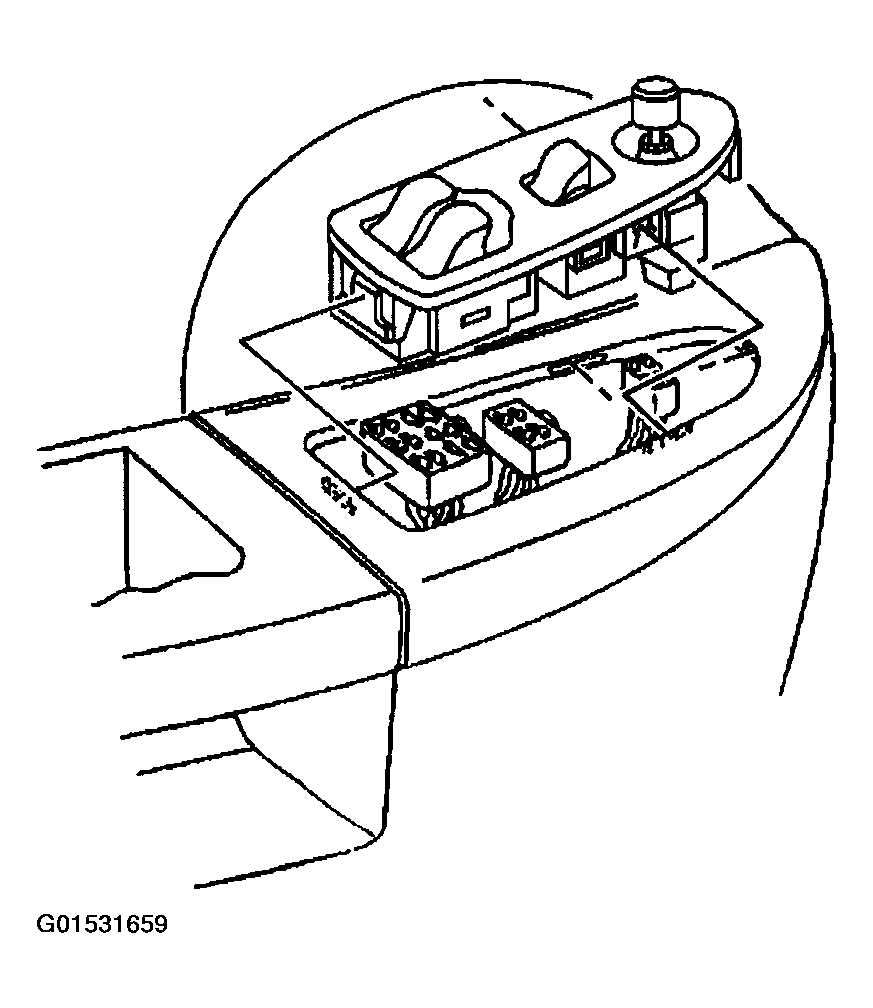

    Fig 2: Installing Switch Mounting Plate To Front Door Trim Panel
    G01531659Courtesy of GENERAL MOTORS CORP.
