Power Window Schematics
Power Window Schematics

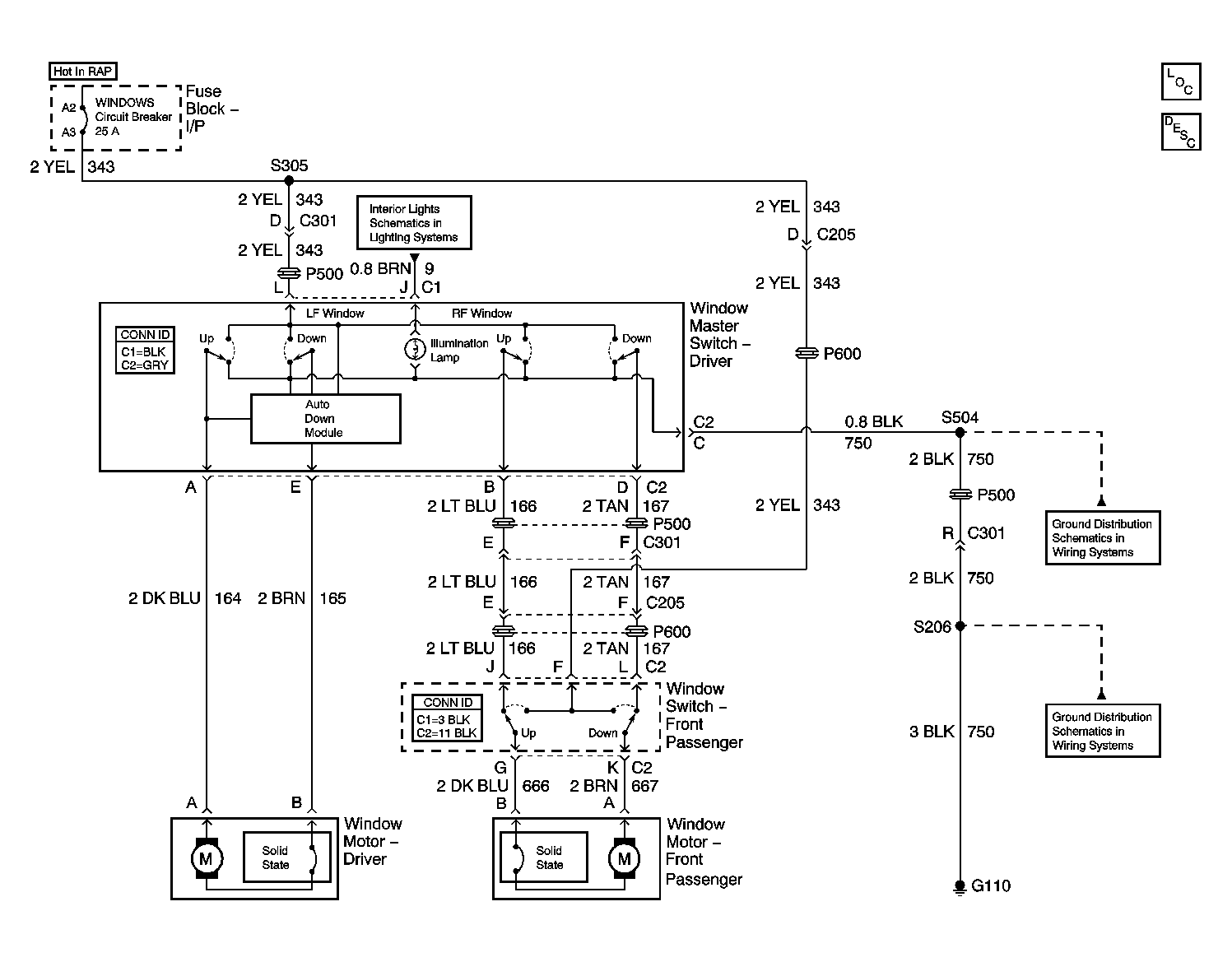

Fig 1: Power Window Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
