ABS Schematics

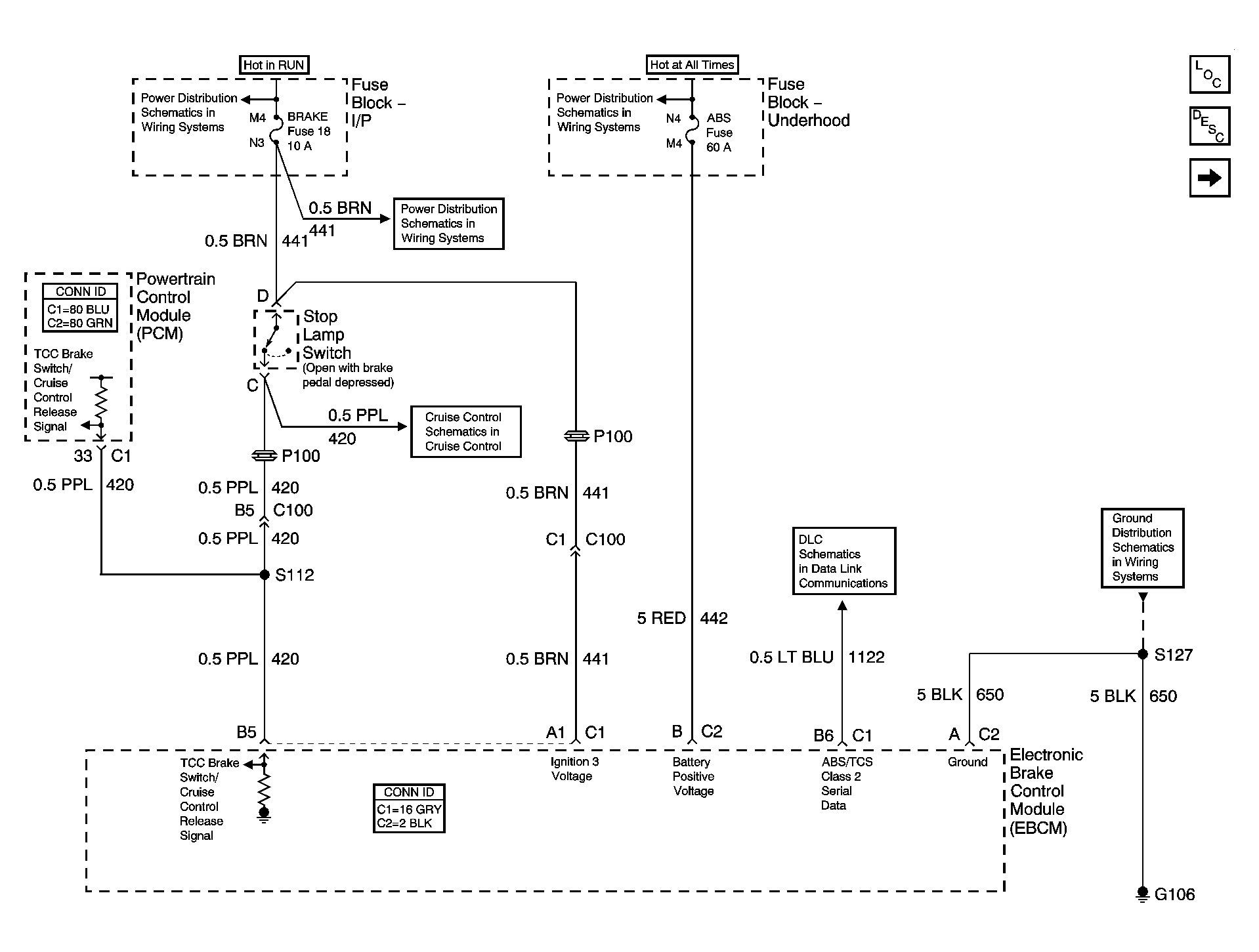

Fig 1: EBCM Power, Ground, & DLC Schematic
GM896065Courtesy of GENERAL MOTORS CORP.

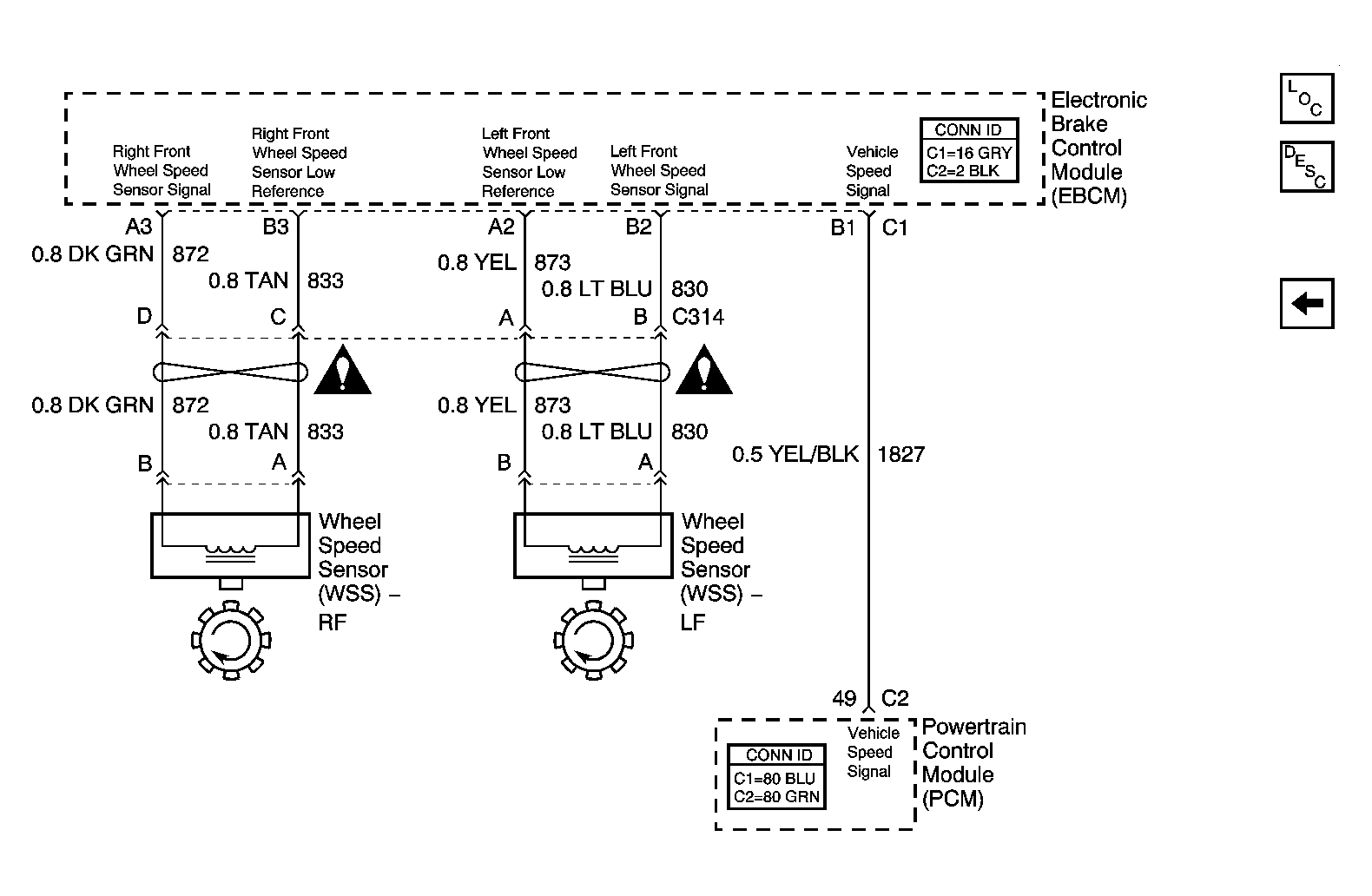

Fig 2: EBCM Controls Schematic
GM896069Courtesy of GENERAL MOTORS CORP.
