Inline Harness Connectors: C310

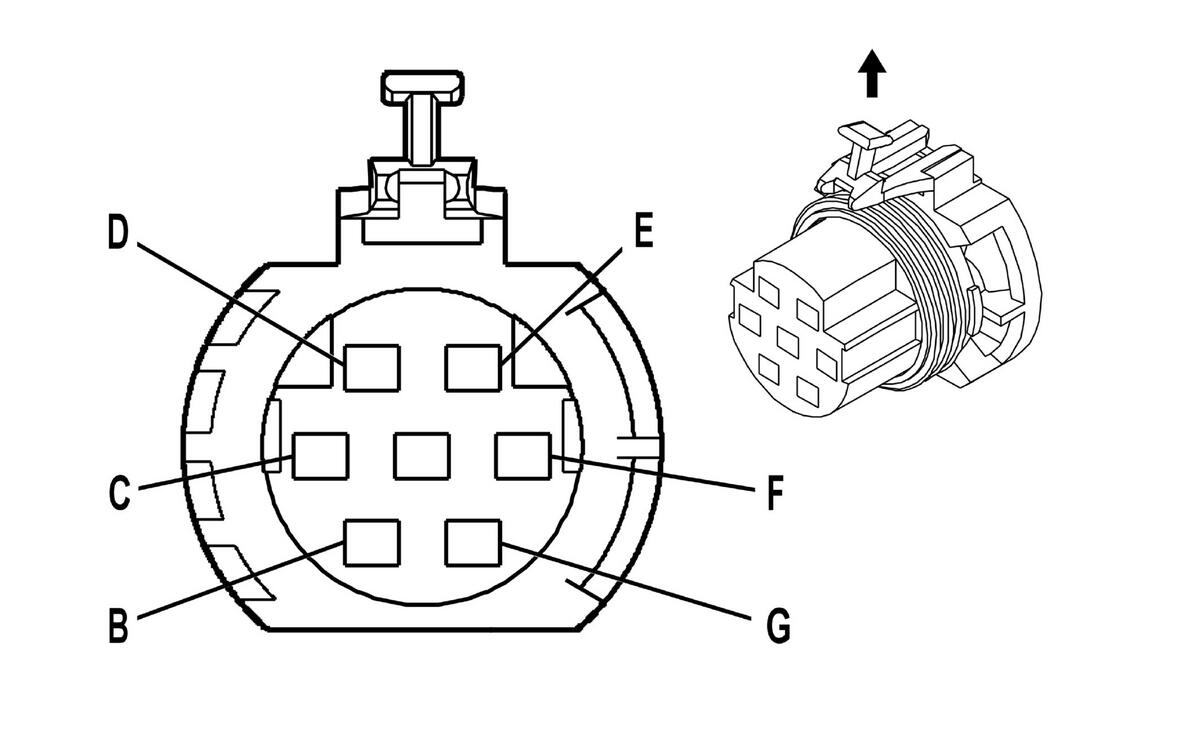

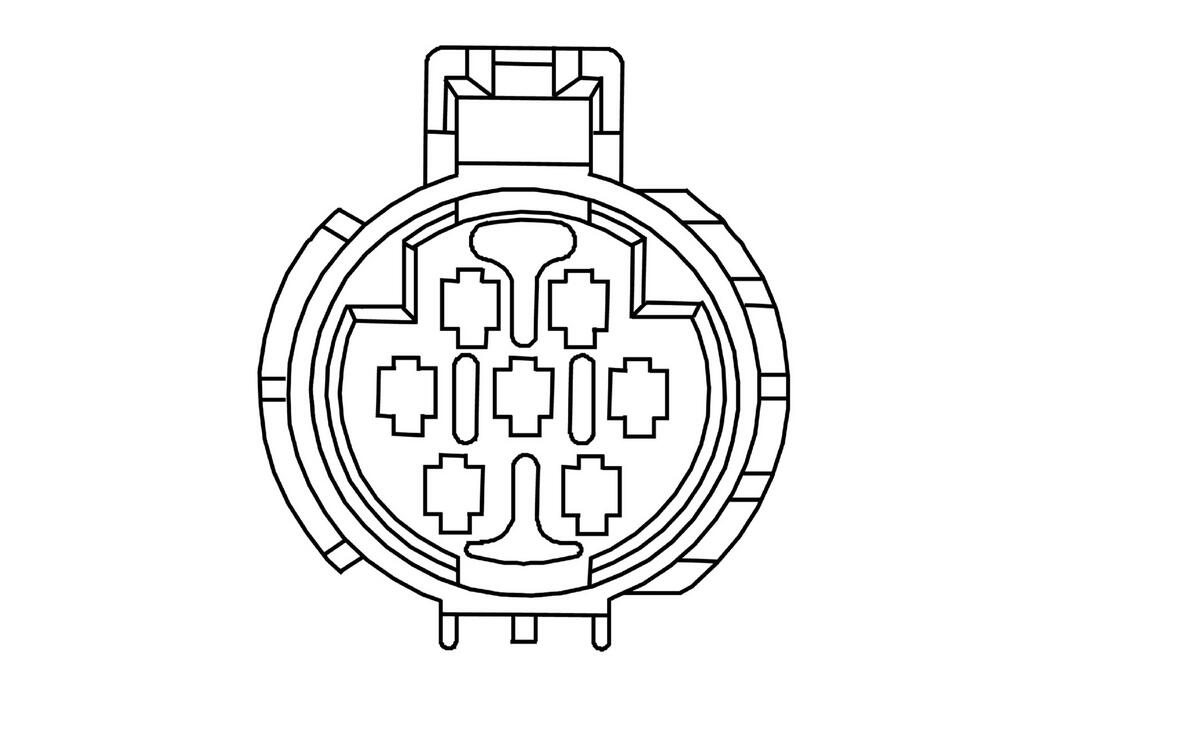

C310 (Fuel Pump Jumper to Engine) Connector End View

GM655687Courtesy of GENERAL MOTORS CORP.
GM258231Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110751
  • 7-Way F Metri-Pack 280 Series, Flexlock, Sealed (BLK)
 Connector Part Information
  • 12110753
  • 7-Way M Metri-Pack 280 Series, Sealed Self Lock (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1650 Ground A BLK 1650 Ground
B PPL/WHT 1589 Fuel Level Sensor Signal B PPL/WHT 1589 Fuel Level Sensor Signal
C BLK/WHT 470 Low Reference C BLK 470 Low Reference
D GRY 474 5 Volt Reference D GRY 474 5 Volt Reference
E DK GRN 890 Fuel Tank Pressure Sensor Signal E DK GRN 890 Fuel Tank Pressure Sensor Signal
F BLK 470 Low Reference F BLK 470 Low Reference
G GRY 120 Fuel Pump Supply Voltage G GRY 120 Fuel Pump Supply Voltage
