Transfer Case Control Component Views

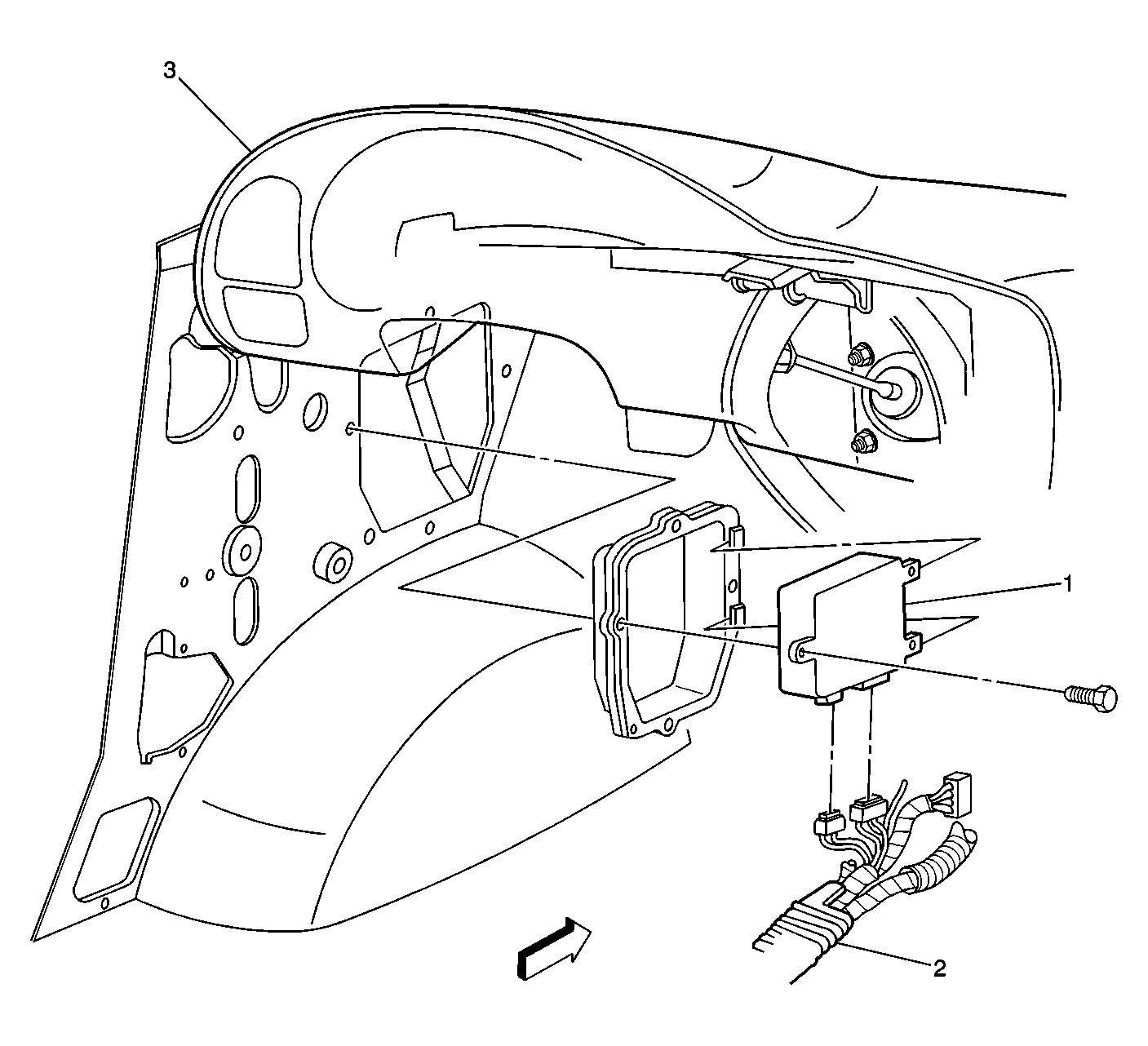

Fig 1: Transfer Case Control Module Locator View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	Transfer Case Wiring Harness
3	Dash

Fig 2: A4WD Transfer Case Locator View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Propshaft Speed Sensor - Rear Connector
2	Transfer Case Encoder Motor Connector
3	Vehicle Speed Sensor (VSS) Connector
4	Propshaft Speed Sensor - Front Connector
5	Transfer Case
6	P301
