Data Link Communications Component Views

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

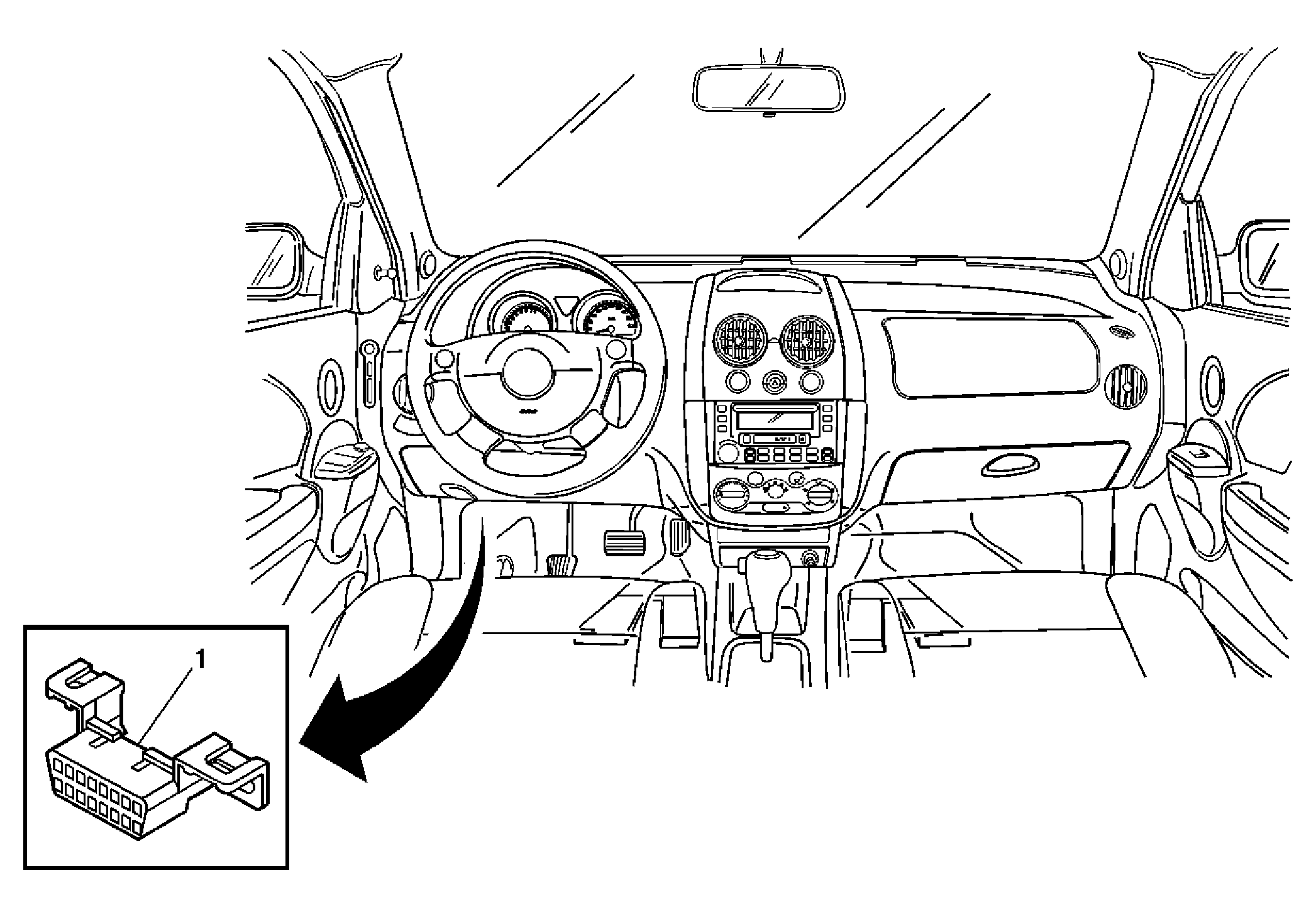

Fig 1: View of Data Link Connector Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector
