Installation Procedure

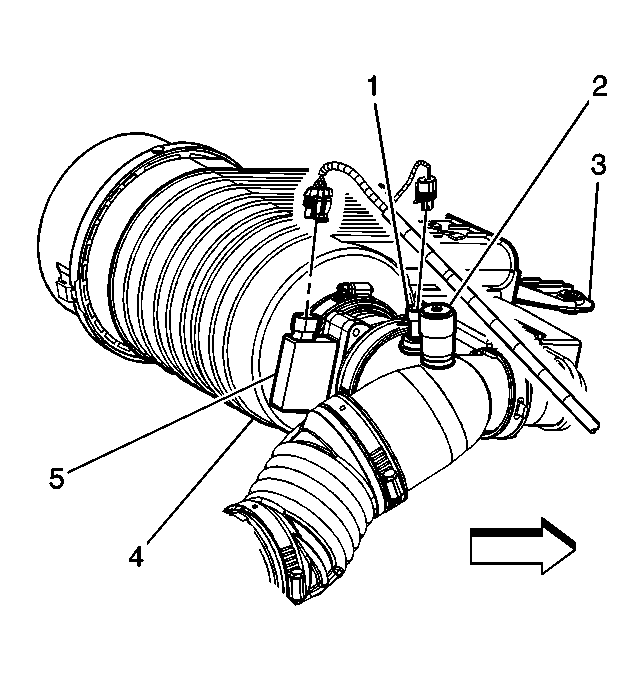

    Fig 1: View Of MAF Sensor & Air Cleaner Assembly
    GM712012Courtesy of GENERAL MOTORS CORP.
  1. Install the element.
  2. Install the cover to the air cleaner assembly (4).
  3. Install the air cleaner assembly end cover clips.
