Installation Procedure

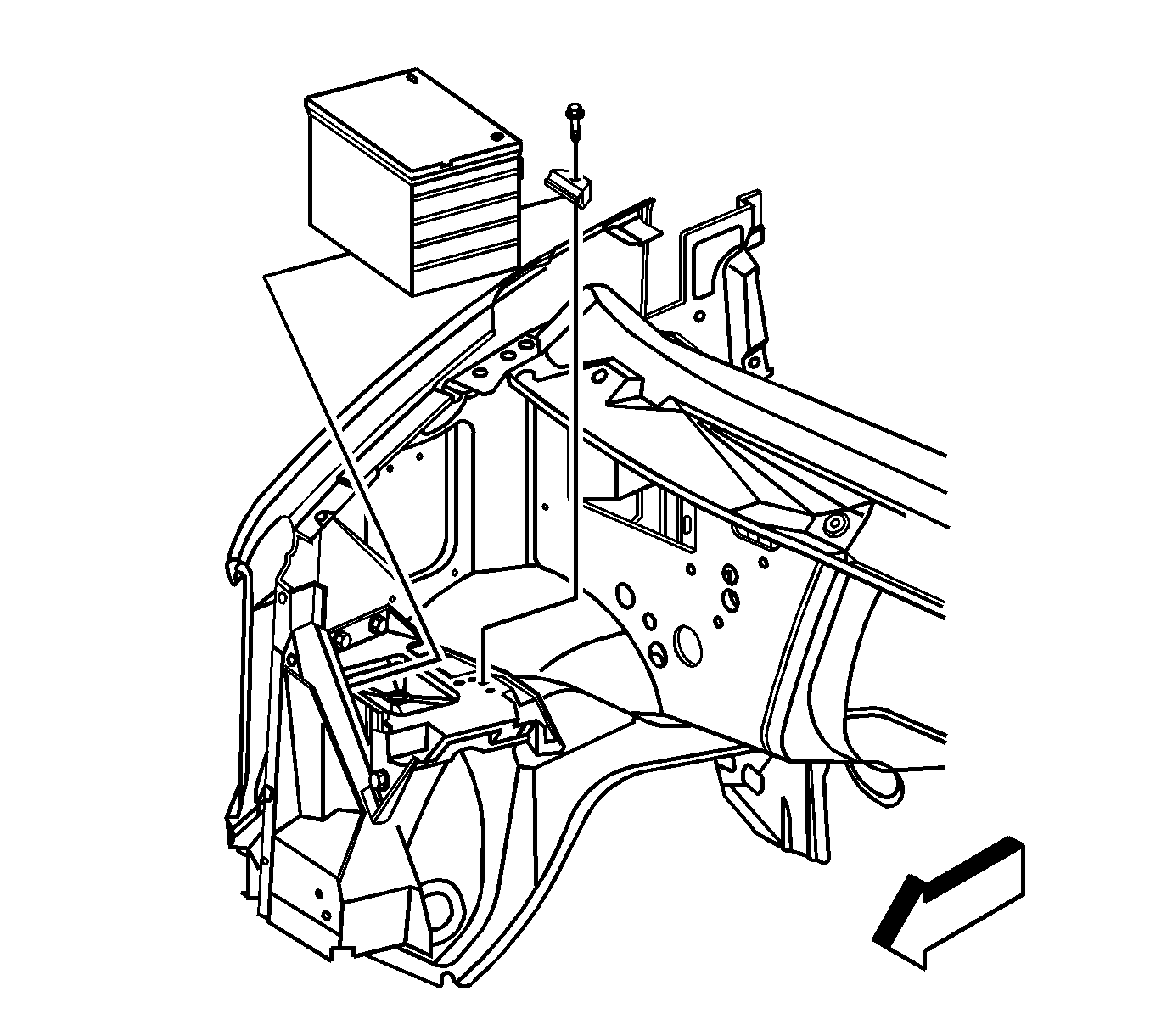

    Fig 1: Removed Battery, Battery Hold-Down Retainer Bolt And Retainer
    GM1202786Courtesy of GENERAL MOTORS CORP.
  1. Install the battery into the battery carrier.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery hold-down retainer and bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

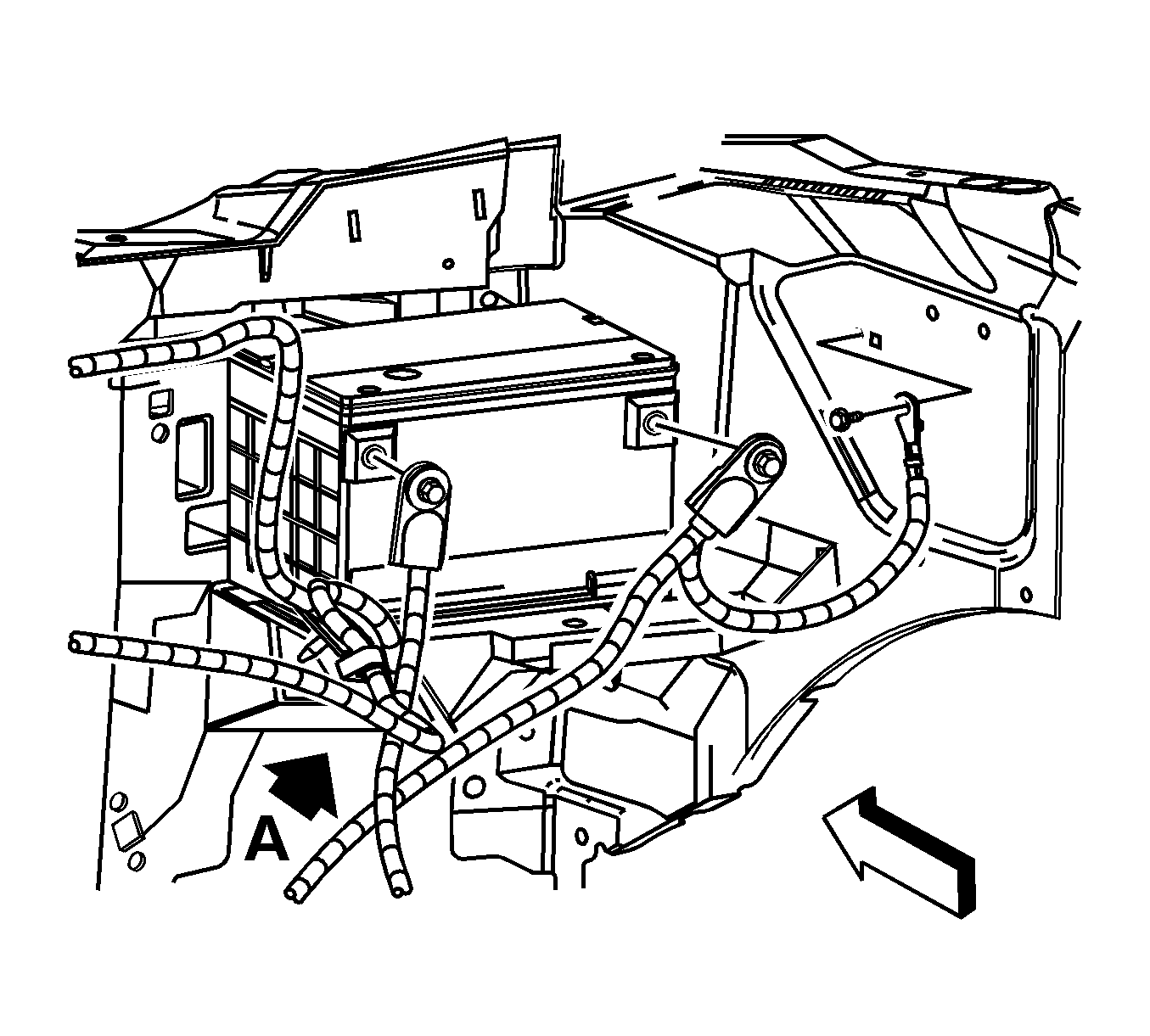

    3. Fig 2: Battery Disconnect
    GM1202776Courtesy of GENERAL MOTORS CORP.
  3. Connect the battery positive cable and the positive battery cable terminal to the battery. Refer to Battery Positive Cable Replacement .
  4. Connect the battery negative cable and the negative battery cable terminal to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  5. Install the coolant recovery reservoir.

    Tighten:  Tighten the reservoir bolt to 11 N.m (97 lb in).
