Installation Procedure

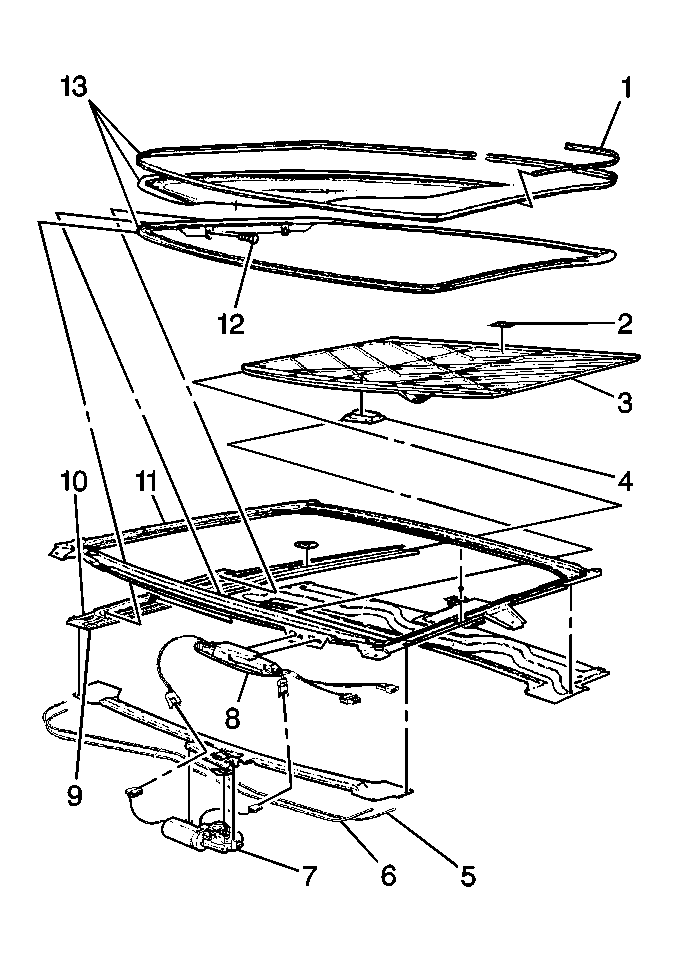

- Install the sunroof control module to the sunroof assembly by sliding the control module (8) towards the left side of the vehicle.
- Install the nylon tie straps to the control module (8).
- Connect the wire harness connectors to both ends of the control module (8).
- Install the headliner, as necessary. Refer to Headliner Replacement in Interior Trim.
- Check for proper operation of the sunroof.
