Cruise Control Schematics

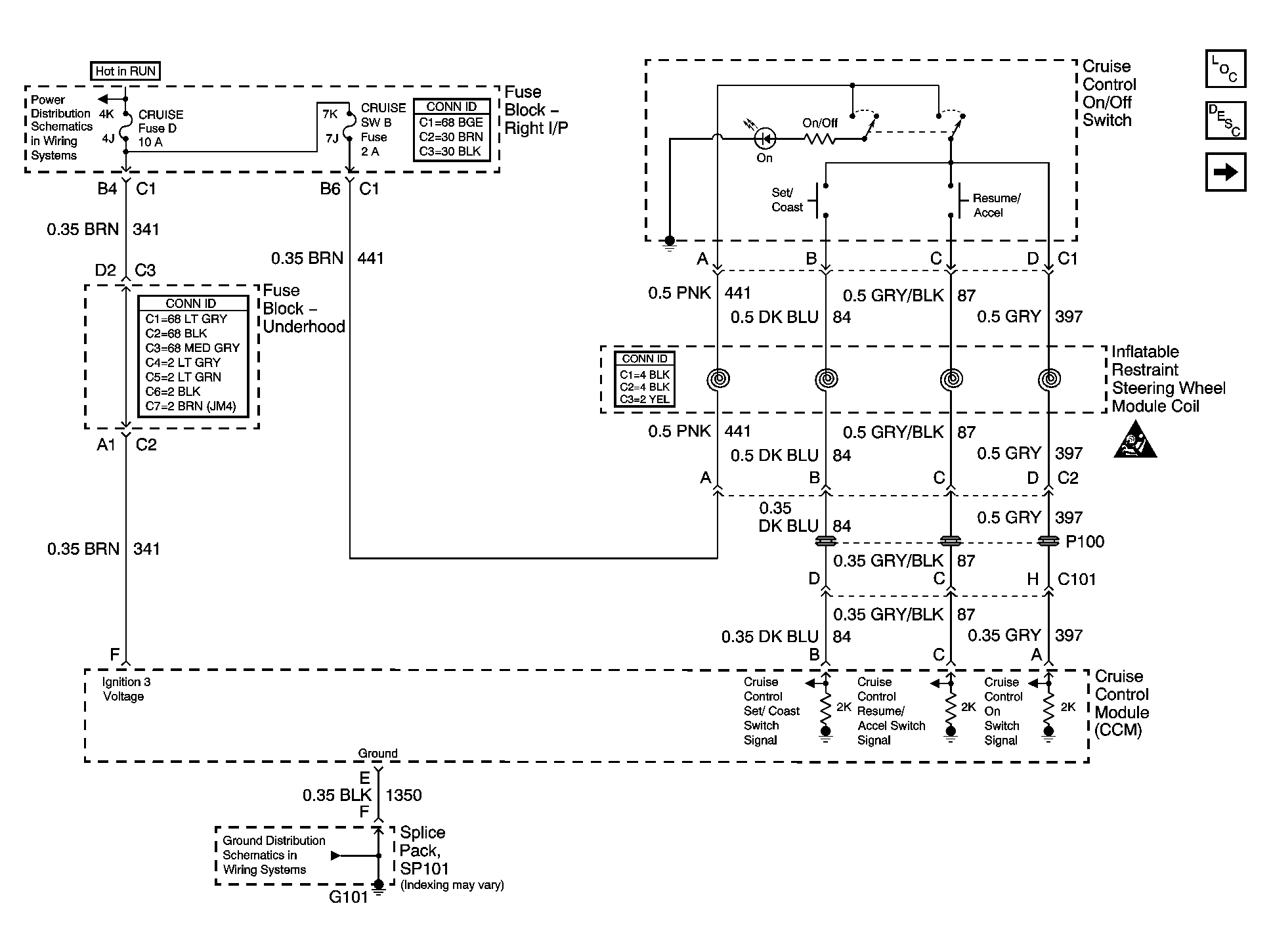

Fig 1: Power, Ground and Switch

Courtesy of GENERAL MOTORS CORP.

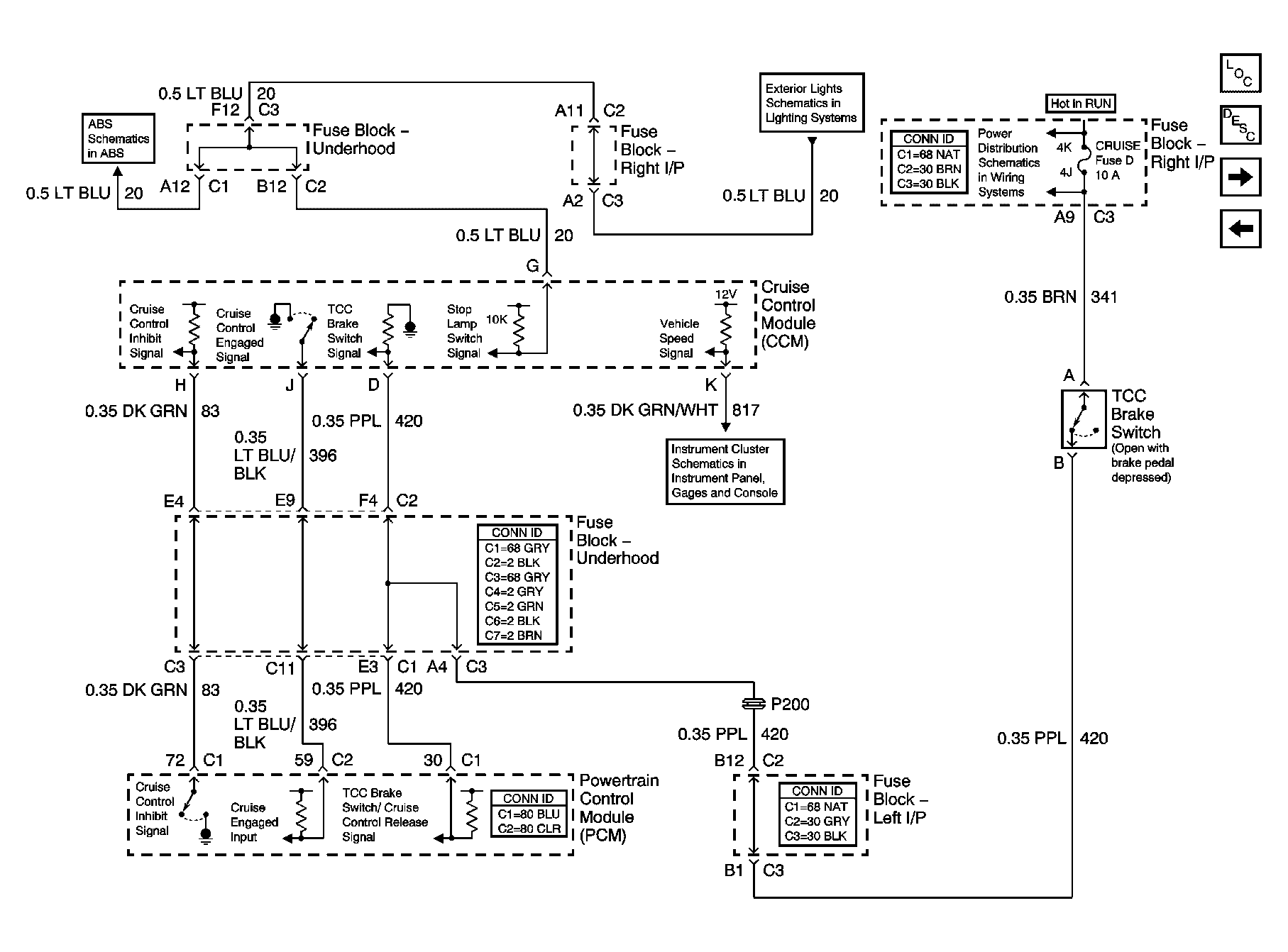

Fig 2: Brake Switch and Inhibit Signals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Cruise Control Indicator

Courtesy of GENERAL MOTORS CORP.
