Keyless Entry Component Views

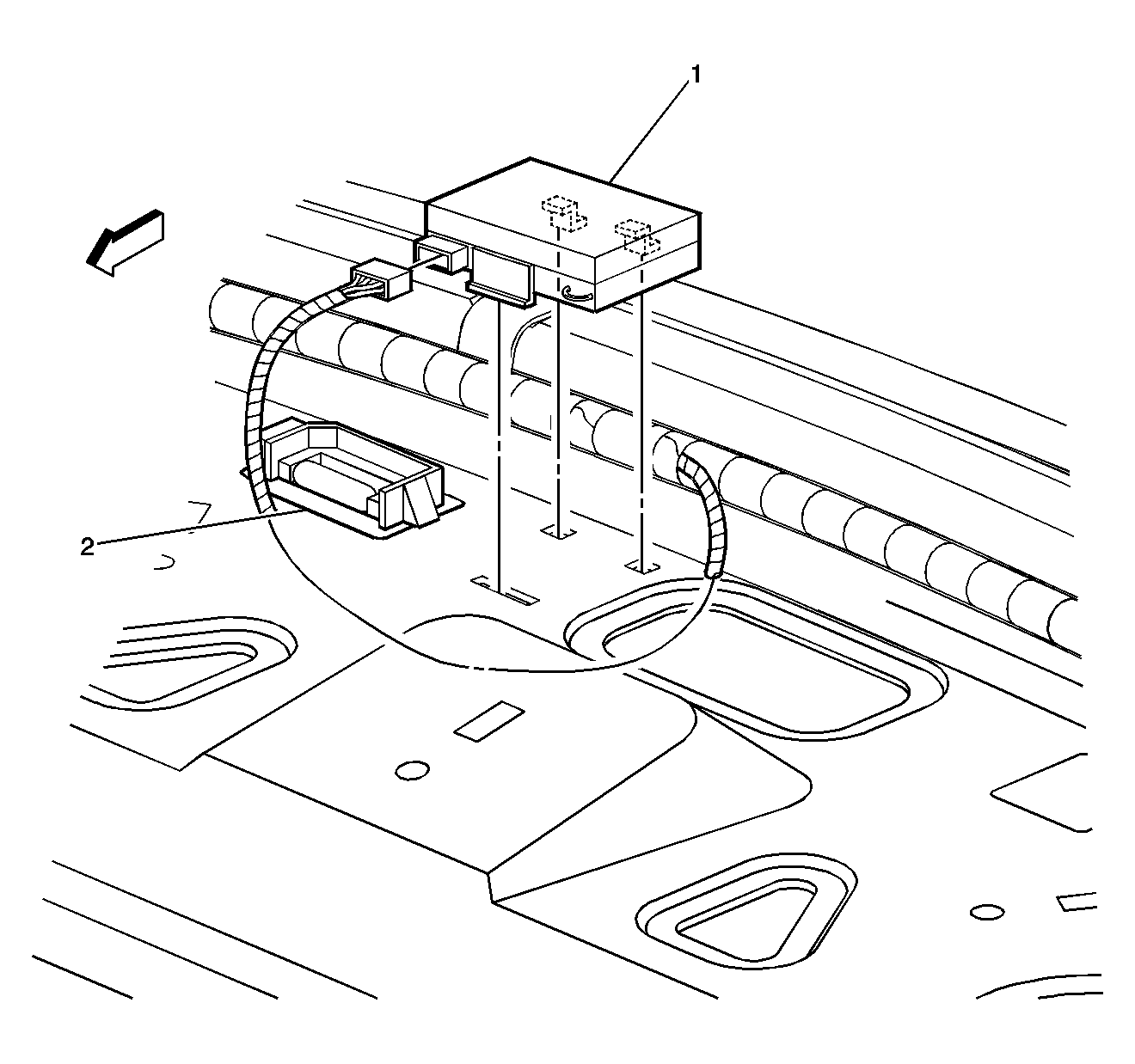

Fig 1: Remote Control Door Lock Receiver

GM328361

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver
2	Rear Compartment Lamp
