Door Lock/Indicator Schematics

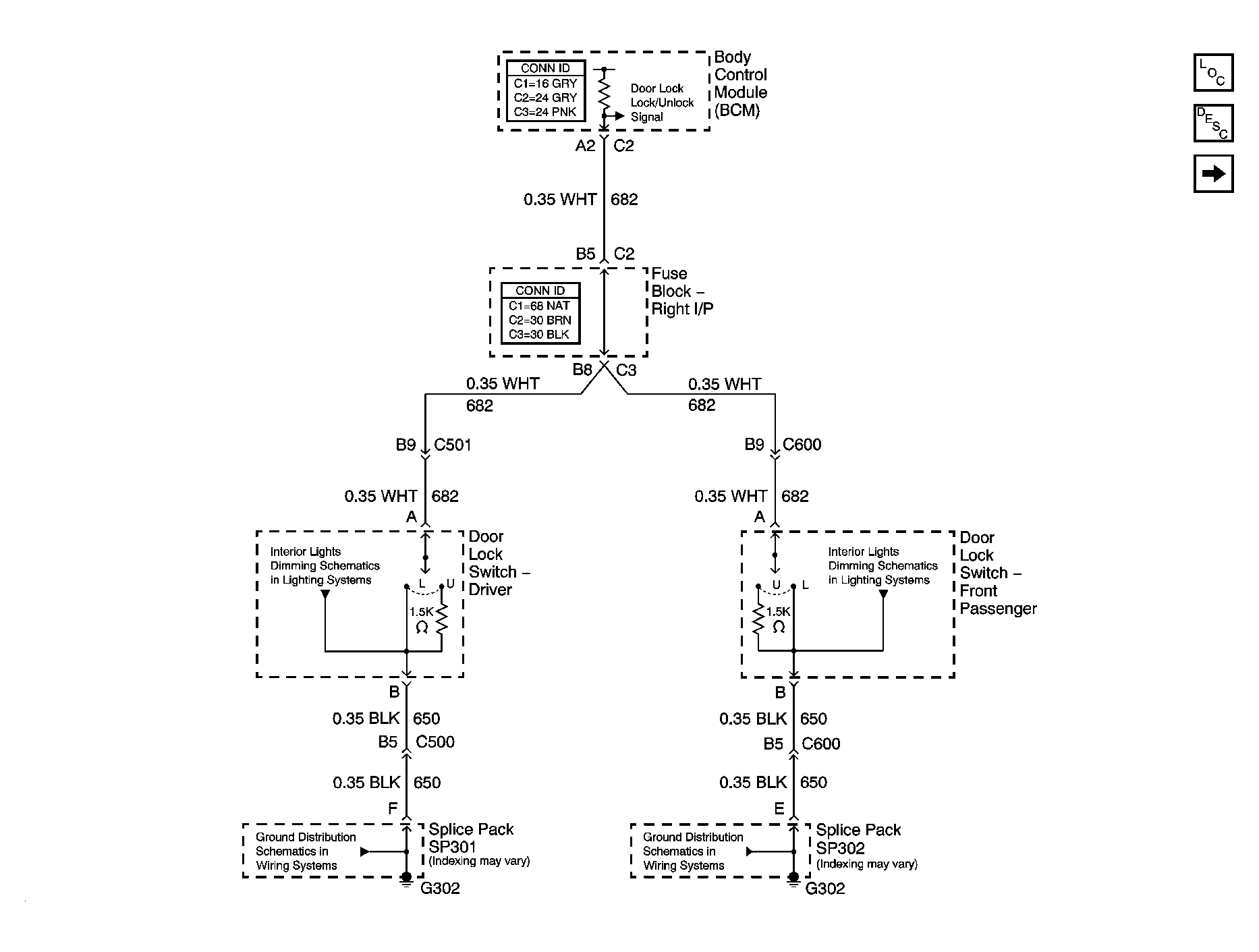

Fig 1: Switches

Courtesy of GENERAL MOTORS CORP.

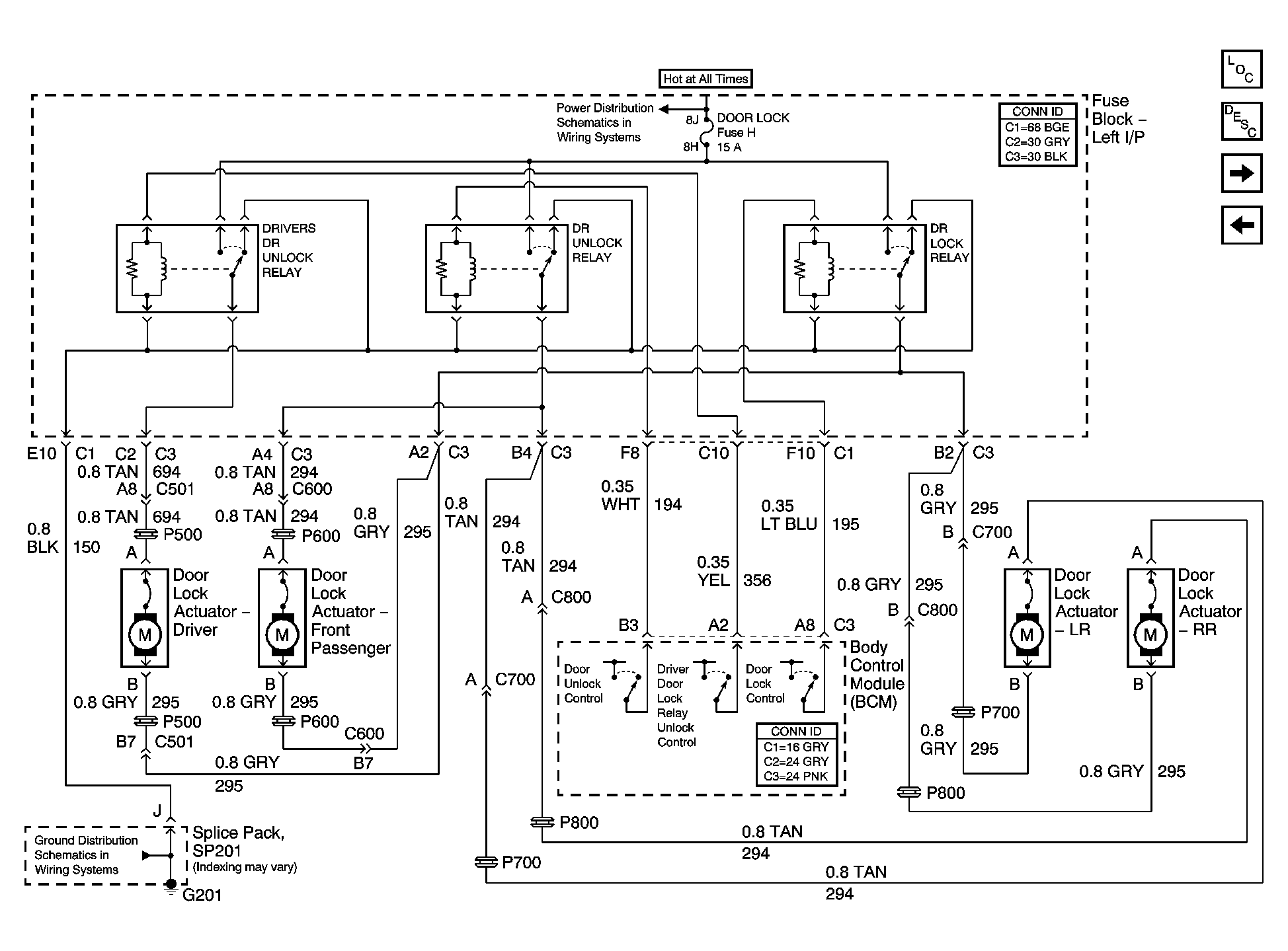

Fig 2: Actuators - with Remote Function Actuation

Courtesy of GENERAL MOTORS CORP.

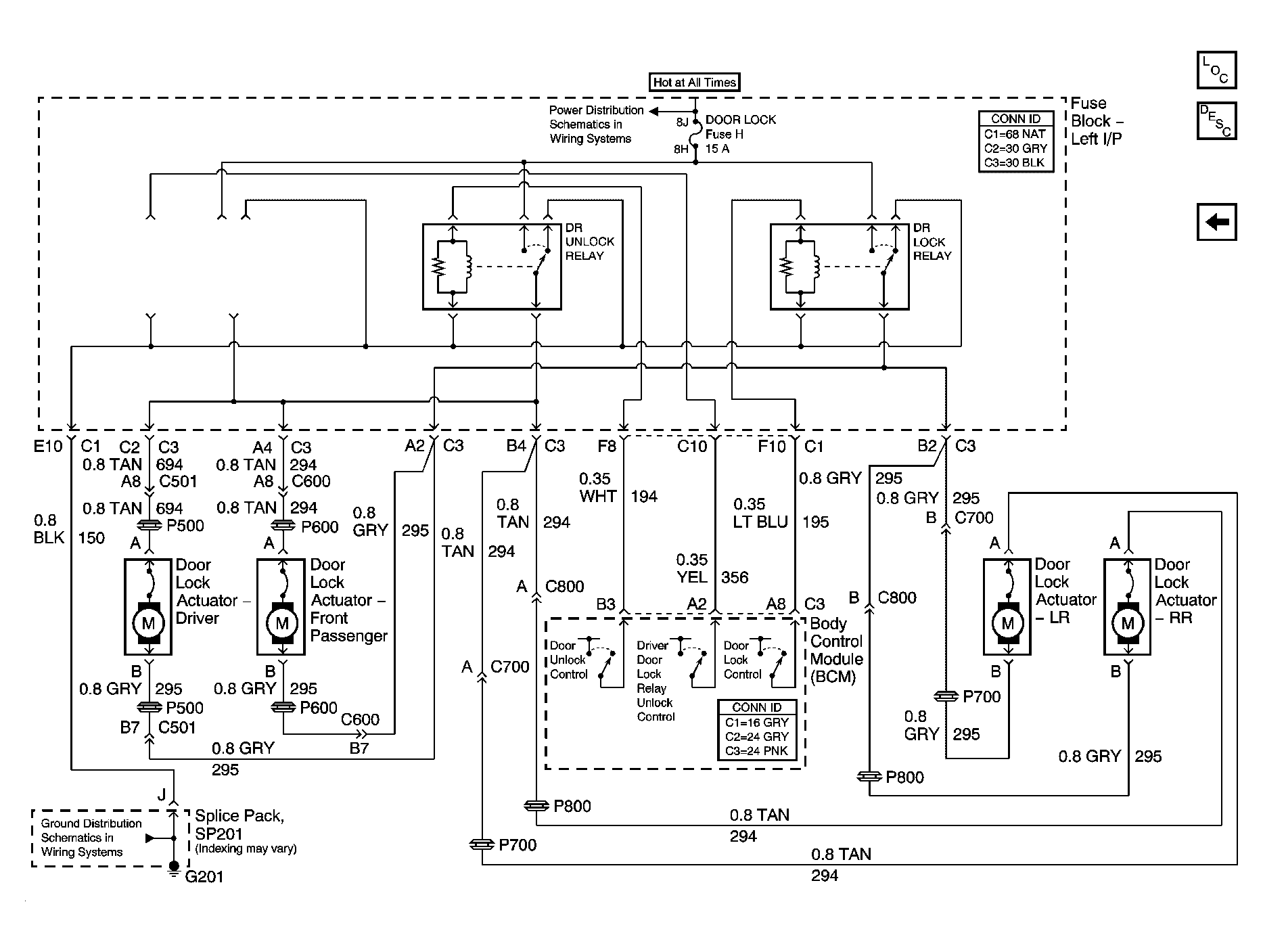

Fig 3: Actuators - without Remote Function Actuation

Courtesy of GENERAL MOTORS CORP.

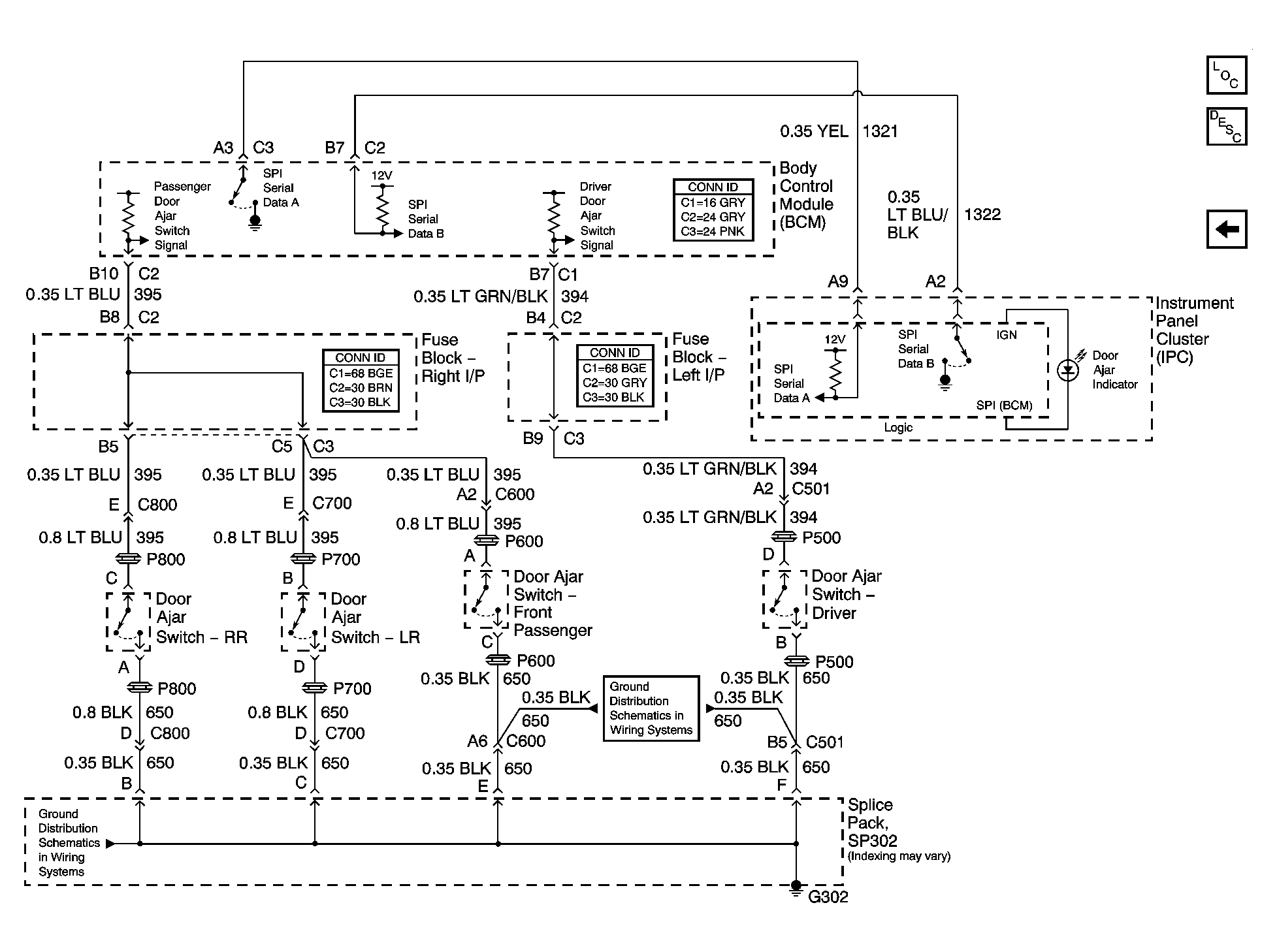

Fig 4: Door Ajar Switches

Courtesy of GENERAL MOTORS CORP.
