ABS Component Views

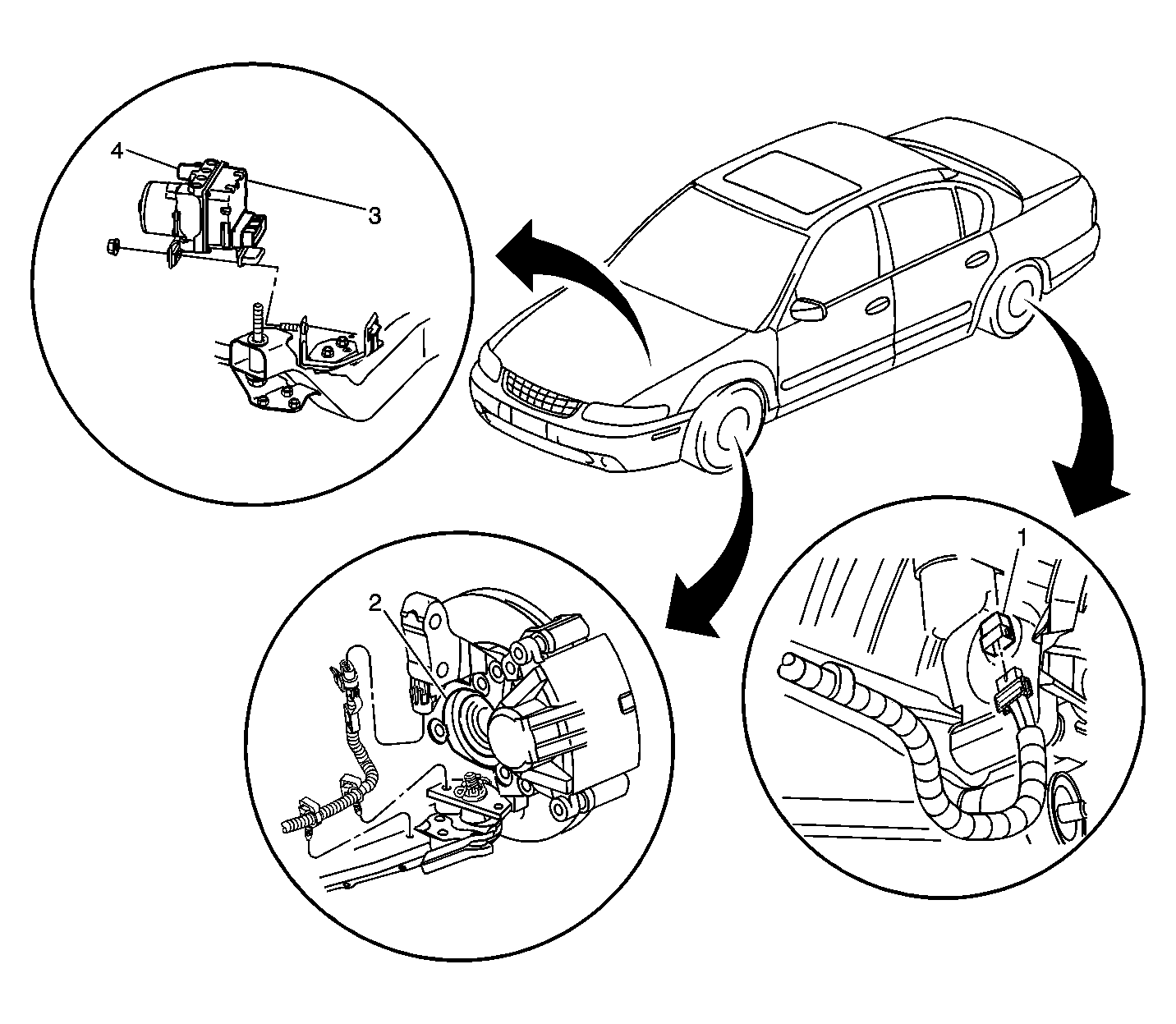

Fig 1: ABS Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheel Speed Sensor
2	Front Wheel Speed Sensor
3	Electronic Brake Control Module (EBCM)
4	Brake Pressure Modulator Valve (BPMV)
