ABS Schematics

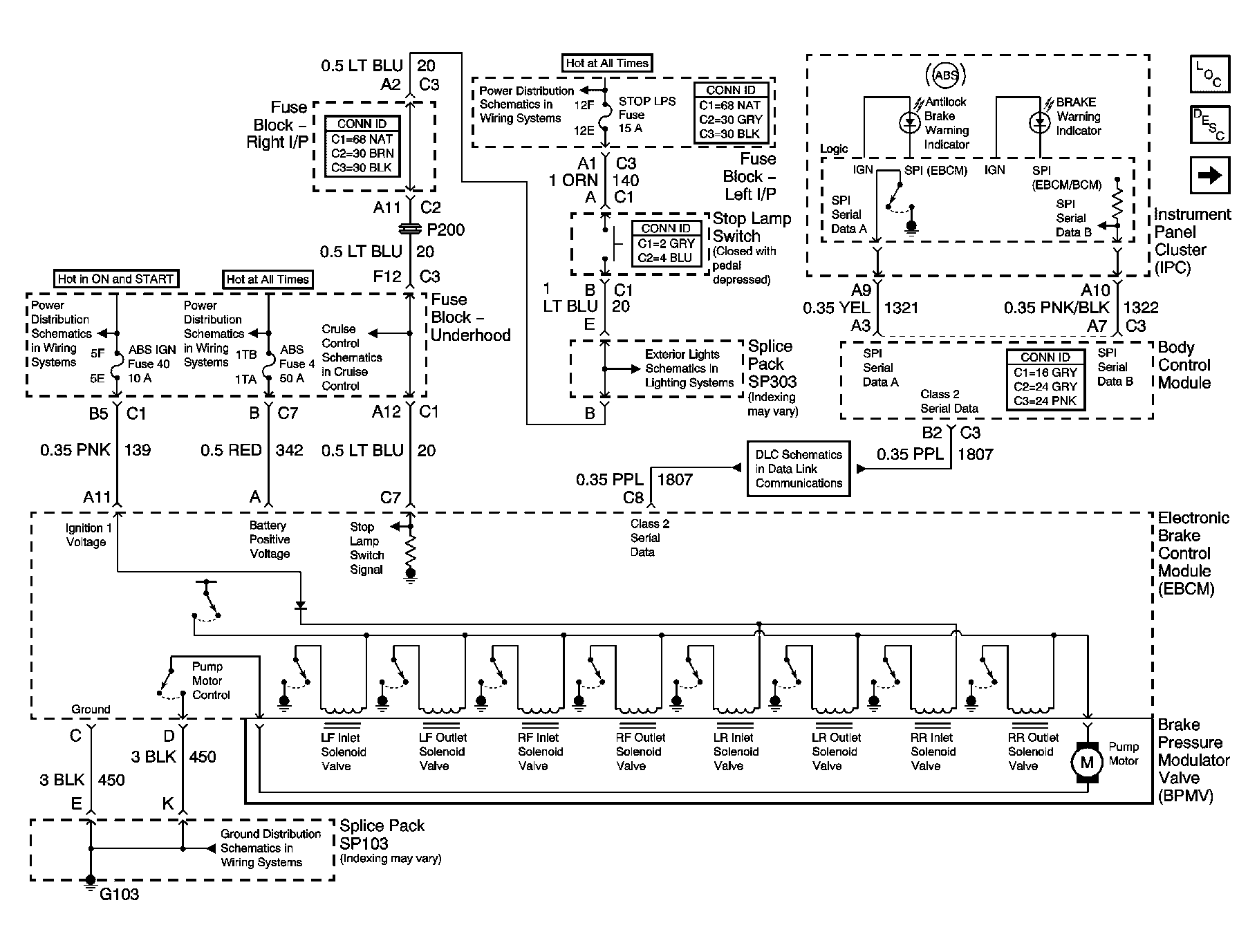

Fig 1: EBCM, PWR, GND, and BPMV
GM783327Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Speed Sensors
GM783330Courtesy of GENERAL MOTORS CORP.
