Cooling System Component Views

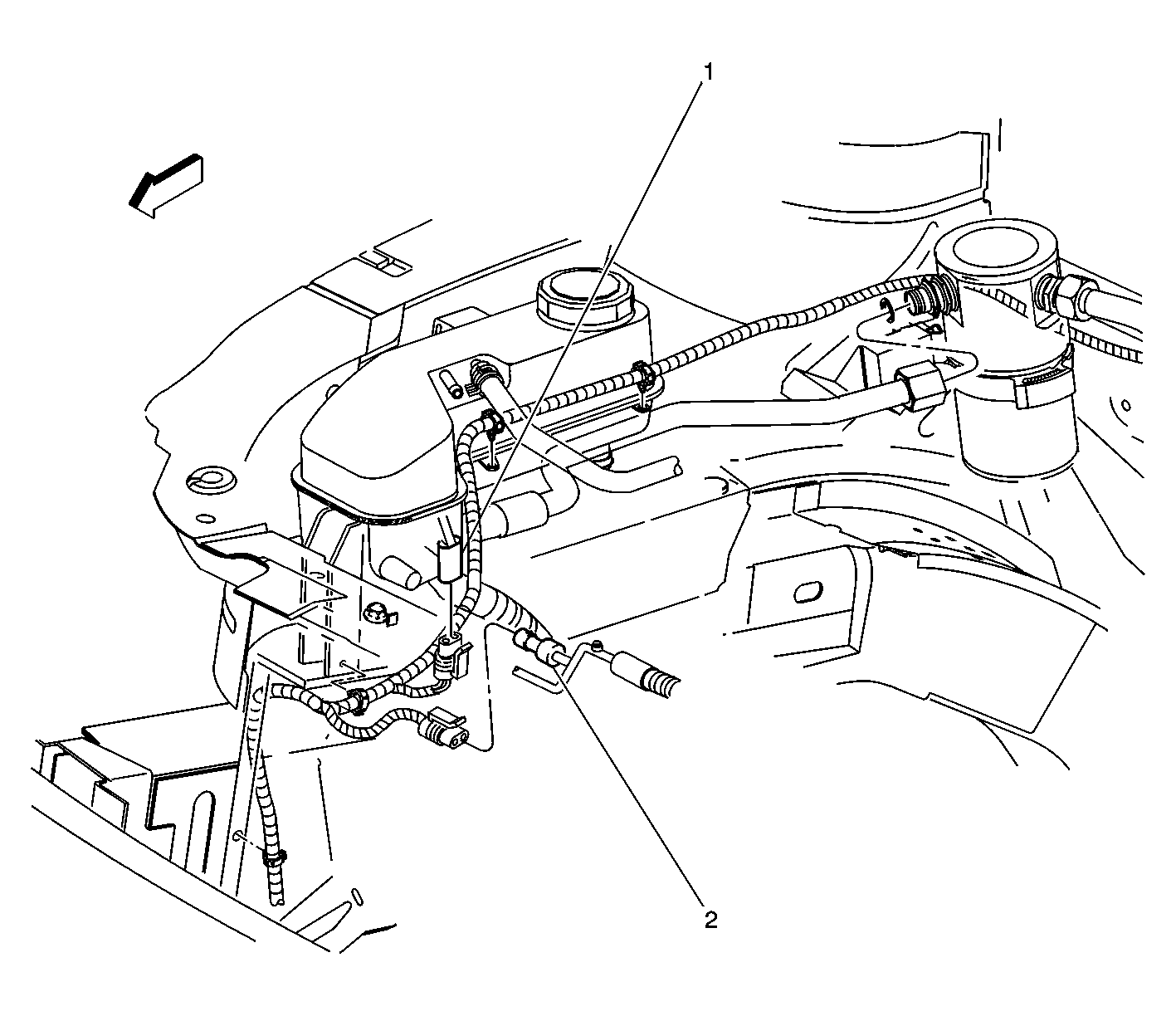

Fig 1: Coolant Level Switch and A/C Refrigerant Pressure Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	A/C Refrigerant Pressure Sensor

Fig 2: Rear of Radiator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan-Left
2	Cooling Fan-Right
3	A/C Refrigerant Pressure Sensor
