Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

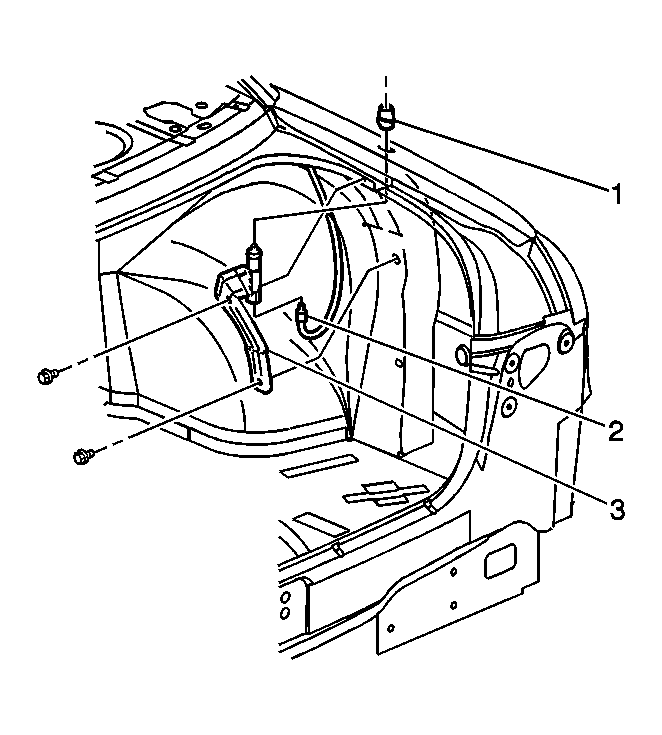

Fig 1: View of Antenna Cable, Bracket & Bezel

Courtesy of GENERAL MOTORS CORP.

Press the radio antenna bezel (1) into the quarter panel opening.
Position the radio antenna bracket (3) to the inner quarter panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the radio antenna cable screws.
Tighten: Tighten the screws to 10 N.m (89 lb in).
Connect the antenna cable (2) to the radio antenna bracket (3).
Install the rear compartment trim panel.
Install the radio antenna.
