Inline Harness Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
C101 Forward Lamp Harness to I/P Harness

GM666638Courtesy of GENERAL MOTORS CORP.
GM258921Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12177081
  • 10-Way F Global Terminal 150 Series Sealed (BLK)
 Connector Part Information
  • 12045808
  • 10-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B DK GRN/
WHT		 817 Vehicle Speed Signal B DK GRN/
WHT		 817 Vehicle Speed Signal
C GRY/BLK 87 Cruise Control Switch Signal C GRY/BLK 87 Cruise Control Switch Signal
D DK BLU 84 Cruise Control Set/Coast Switch Signal D DK BLU 84 Cruise Control Set/Coast Switch Signal
E RED 228 Windshield Washer Pump Control E RED 228 Windshield Washer Pump Control
F BLK/WHT 99 Windshield Washer Fluid Level Signal F BLK/WHT 99 Windshield Washer Fluid Level Signal
G YEL/BLK 68 Low Coolant Level Indicator Control G YEL/BLK 68 Low Coolant Level Indicator Control
H GRY 397 Cruise Control On Switch Signal H GRY 397 Cruise Control On Switch Signal
J-K - - Not Used J-K - - Not Used
C102 Engine Harness to Automatic Transmission Harness

GM684844Courtesy of GENERAL MOTORS CORP.
GM808696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160280
  • 20-Way F Micro-Pack 100 Series (GRY)
 Connector Part Information
  • 12160782
  • 20-Way M Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 1222 (1-2 Shift Solenoid) Valve Control A LT GRN 1222 (1-2 Shift Solenoid) Valve Control
B YEL/BLK 1223 (2-3 Shift Solenoid) Valve Control B YEL 1223 (2-3 Shift Solenoid) Valve Control
C RED/BLK 1228 PC Solenoid Valve High Control (Sol A) C PPL 1228 PC Solenoid Valve High Control (Sol A)
D LT BLU/
WHT		 1229 PC Solenoid Valve Low Control (Sol A) D LT BLU 1229 PC Solenoid Valve Low Control (Sol A)
E PNK 1039 Ignition 1 Voltage E RED 839 Ignition 1 Voltage
F-K - - Not Used F-K - - Not Used
L YEL/BLK 1227 TFT Sensor Signal L BRN 1227 TFT Sensor Signal
M WHT/BLK 2762 Low Reference M GRY 452 Low Reference
N PNK 1224 Transmission Fluid Pressure Switch Signal A N - - Not Used
P RED 1226 Transmission Fluid Pressure Switch Signal C P ORN 1226 Transmission Fluid Pressure Switch Signal C
R DK BLU 1225 Transmission Fluid Pressure Switch Signal B R DK BLU 1225 Transmission Fluid Pressure Switch Signal B
S RED/BLK 1230 AT ISS High Signal S BLK 1230 AT ISS High Signal
T BRN 418 TCC PWM Solenoid Valve Control T TAN 418 TCC PWM Solenoid Valve Control
U YEL 657 TCC Release Switch Signal U WHT 1804 TCC Release Switch Signal
V DK BLU/
WHT		 1231 AT ISS Low Signal V DK GRN 1231 AT ISS Low Signal
W - - Not Used W - - Not Used
C130 Engine Harness to Fuel Injector Harness (LA1)

GM655811Courtesy of GENERAL MOTORS CORP.
GM655813Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326084
  • 16-Way F Metri-Pack Mixed Series Sealed (BLK)
 Connector Part Information
  • 15326085
  • 16-Way M Metri-Pack Mixed Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 839 Ignition 1 Voltage A PNK 639 Ignition 1 Voltage
B YEL 410 ECT Sensor Signal B YEL 410 ECT Sensor Signal
C BLK 1744 Fuel Injector 1 Control C BLK 1744 Fuel Injector 1 Control
D LT GRN/
BLK		 1745 Fuel Injector 2 Control D LT GRN/
BLK		 1745 Fuel Injector 2 Control
E PNK/BLK 1746 Fuel Injector 3 Control E PNK/BLK 1746 Fuel Injector 3 Control
F LT BLU/
BLK		 844 Fuel Injector 4 Control F LT BLU/
BLK		 844 Fuel Injector 4 Control
G BLK/WHT 845 Fuel Injector 5 Control G BLK/WHT 845 Fuel Injector 5 Control
H YEL/BLK 846 Fuel Injector 6 Control H YEL/BLK 846 Fuel Injector 6 Control
J - - Not Used J - - Not Used
K BRN 2704 5 Volt Reference K GRY 2704 5 Volt Reference
L ORN/BLK 469 Low Reference L ORN/BLK 469 Low Reference
M LT GRN 432 MAP Sensor Signal M LT GRN 432 MAP Sensor Signal
N RED/WHT 812 12 Volt Reference N RED/WHT 812 12 Volt Reference
P BLK 407 Low Reference P BLK 407 Low Reference
R BRN/WHT 633 CMP Sensor Signal R BRN/WHT 633 CMP Sensor Signal
S - - Not Used S - - Not Used
C130 Engine Harness to Fuel Injector Harness (L61)

GM646400Courtesy of GENERAL MOTORS CORP.
GM684916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326834
  • 8-Way F Global Terminal 150 Series Sealed (BLK)
 Connector Part Information
  • 15326839
  • 8-Way M Global Terminal 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1744 Fuel Injector 1 Control A BLK 1744 Fuel Injector 1 Control
B LT GRN/
BLK		 1745 Fuel Injector 2 Control B LT GRN/
BLK		 1745 Fuel Injector 2 Control
C PNK/
BLK		 1746 Fuel Injector 3 Control C PNK/
BLK		 1746 Fuel Injector 3 Control
D LT BLU/
BLK		 844 Fuel Injector 4 Control D LT BLU/
BLK		 844 Fuel Injector 4 Control
E PNK 839 Ignition 1 Voltage E PNK 139 Ignition 1 Voltage
F ORN/
BLK		 469 Low Reference F ORN/
BLK		 469 Low Reference
G LT GRN 432 MAP Sensor Signal G LT GRN 432 MAP Sensor Signal
H GRY 2704 5 Volt Reference (w/M86) H GRY 2704 5 Volt Reference
BRN 2704 5 Volt Reference (w/MN4)
C200 Engine Harness to I/P Harness

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304692
  • 18-Way F Global Terminal Mixed Series (BLK)
 Connector Part Information
  • 15336468
  • 18-Way M Global Terminal Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PPL 1807 Class 2 Serial Data A1 PPL 1807 Class 2 Serial Data
A2-A3 - - Not Used A2-A3 - - Not Used
A4 BLK 250 Ground (LA1) A4 BLK 250 Ground
A5 PNK 849 Brake Fluid Level Sensor Signal (w/o ABS) A5 PNK 849 Brake Fluid Level Sensor Signal (w/o ABS)
A5 - - Not Used (w/ABS) A2-A3 - - Not Used (w/ABS)
A6 PPL 1500 Ignition 0 Voltage A6 PPL 1500 Ignition 0 Voltage
PPL 1500 Ignition 0 Voltage (w/LA1)
A7-A9 - - Not Used A7-A9 - - Not Used
B1 BRN/WHT 379 CPP Switch Signal (M86) B1 BRN/WHT 379 CPP Switch Signal (M86)
B1 - - Not Used (MN4/MN5) B1 - - Not Used (MN4/MN5)
B2 BLK/WHT 451 Ground B2 BLK/WHT 451 Ground
B3 DK GRN/
WHT		 817 Vehicle Speed Signal B3 DK GRN/
WHT		 817 Vehicle Speed Signal
B4 - - Not Used B4 - - Not Used
B5 LT GRN 24 Backup Lamp Supply Voltage B5 LT GRN 24 Backup Lamp Supply Voltage
B6 - - Not Used B6 - - Not Used
B7 PPL 1807 Class 2 Serial Data B7 PPL 1807 Class 2 Serial Data
B8 BRN/WHT 419 MIL Control B8 BRN/WHT 419 MIL Control
B9 - - Not Used B9 - - Not Used
C206 I/P Harness to SIR Coil Harness

GM62439Courtesy of GENERAL MOTORS CORP.
GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 441 Ignition 3 Voltage A BRN 441 Ignition 3 Voltage
B DK BLU 84 Cruise Control Set/Coast Switch Signal B DK BLU 84 Cruise Control Set/Coast Switch Signal
C GRY/BLK 87 Cruise Control Resume/Accel Switch Signal C GRY/BLK 87 Cruise Control Resume/Accel Switch Signal
D GRY 397 Cruise Control On Switch Signal D GRY 397 Cruise Control On Switch Signal
E BRN 1244 Instrument Panel Lamp Supply Voltage - 2 E BRN 1244 Instrument Panel Lamp Supply Voltage - 2
F BLK 150 Ground F BLK 150 Ground
G YEL 314 Radio On Signal G PNK 314 Radio On Signal - Pontiac
H LT GRN 1011 Remote Radio Control Signal H LT GRN 1011 Remote Radio Control Signal
C207 SIR Coil Harness to Steering Wheel Controls Harness

GM62439Courtesy of GENERAL MOTORS CORP.
GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 441 Ignition 3 Voltage A BRN 441 Ignition 3 Voltage
B DK BLU 84 Cruise Control Set/Coast Switch Signal B DK BLU 84 Cruise Control Set/Coast Switch Signal
C GRY/BLK 87 Cruise Control Resume/Accel Switch Signal C GRY/BLK 87 Cruise Control Resume/Accel Switch Signal
D GRY 397 Cruise Control On Switch Signal D GRY 397 Cruise Control On Switch Signal
E BRN 1244 Instrument Panel Lamp Supply Voltage - 2 E BRN/BLK 1244 Instrument Panel Lamp Supply Voltage - 2
F BLK 150 Ground F BLK 150 Ground
G YEL 314 Radio On Signal - Pontiac G YEL 314 Radio On Signal - Pontiac
H LT GRN 1011 Remote Radio Control Signal H LT GRN 1011 Remote Radio Control Signal
C300 Engine Harness to Body Harness

GM62464Courtesy of GENERAL MOTORS CORP.
GM808703Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
 Connector Part Information
  • 12064770
  • 10-Way M Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 882 Right Rear Wheel Speed Sensor Signal A BRN 882 Right Rear Wheel Speed Sensor Signal
B WHT 883 Right Rear Wheel Speed Sensor Low Reference B WHT 883 Right Rear Wheel Speed Sensor Low Reference
C BLK 884 Left Rear Wheel Speed Sensor Signal C BLK 884 Left Rear Wheel Speed Sensor Signal
D RED 885 Left Rear Wheel Speed Sensor Low Reference D RED 885 Left Rear Wheel Speed Sensor Low Reference
E BLK 2759 Low Reference E BLK 2759 Low Reference
F GRY 2709 5 Volt Reference F GRY 2709 5 Volt Reference
G DK GRN 890 Fuel Tank Pressure Sensor Signal G DK GRN 890 Fuel Tank Pressure Sensor Signal
H LT GRN 275 Park Neutral Position Switch Park Signal H LT GRN 275 Park Neutral Position Switch Park Signal
J PPL 1589 Fuel Level Sensor Signal J PPL 1589 Fuel Level Sensor Signal
K WHT 1310 EVAP Canister Vent Solenoid Control K WHT 1310 EVAP Canister Vent Solenoid Control
C301 Headliner Harness to Sunroof Harness

GM808704Courtesy of GENERAL MOTORS CORP.
GM808705Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020397
  • 3-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12120398
  • 3-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 541 Ignition 3 Voltage A BRN 541 Ignition 3 Voltage
B - - Not Used B - - Not Used
C BLK 750 Ground C BLK 750 Ground
C306 Body Harness to Power Seat Harness

GM808706Courtesy of GENERAL MOTORS CORP.
GM38284Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BLK)
 Connector Part Information
  • 12064750
  • 2-Way M Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 540 Battery Positive Voltage A ORN 540 Battery Positive Voltage
B BLK 550 Ground B BLK 550 Ground
C400 Headliner Harness to Body Harness

GM808876Courtesy of GENERAL MOTORS CORP.
GM808879Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015416
  • 8-Way F Metri-Pack 280 Series (NAT)
 Connector Part Information
  • 12041255
  • 8-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage (w/Y71/Y72) A ORN 1732 Courtesy Lamps Supply Voltage
BLK/WHT 1732 Courtesy Lamps Supply Voltage (w/Y71/Y72)
B-C - - Not Used B-C - - Not Used
D BRN 541 Ignition 3 Voltage (w/CF5) D BRN 541 Ignition 3 Voltage (w/CF5)
E BLK 156 Courtesy Low Control (w/Y71/Y72) E WHT 156 Courtesy Lamp Low Control
WHT 156 Courtesy Low Control (w/Y71/Y72)
F - - Not Used F - - Not Used
G BLK 750 Ground (w/CF5) G BLK 750 Ground (w/CF5)
H BLK 750 Ground (w/Y71/Y72) H BLK 750 Ground
BLK 750 Ground (w/Y71/Y72)
C413 Body Harness to Wheel Speed Sensor Harness

GM646171Courtesy of GENERAL MOTORS CORP.

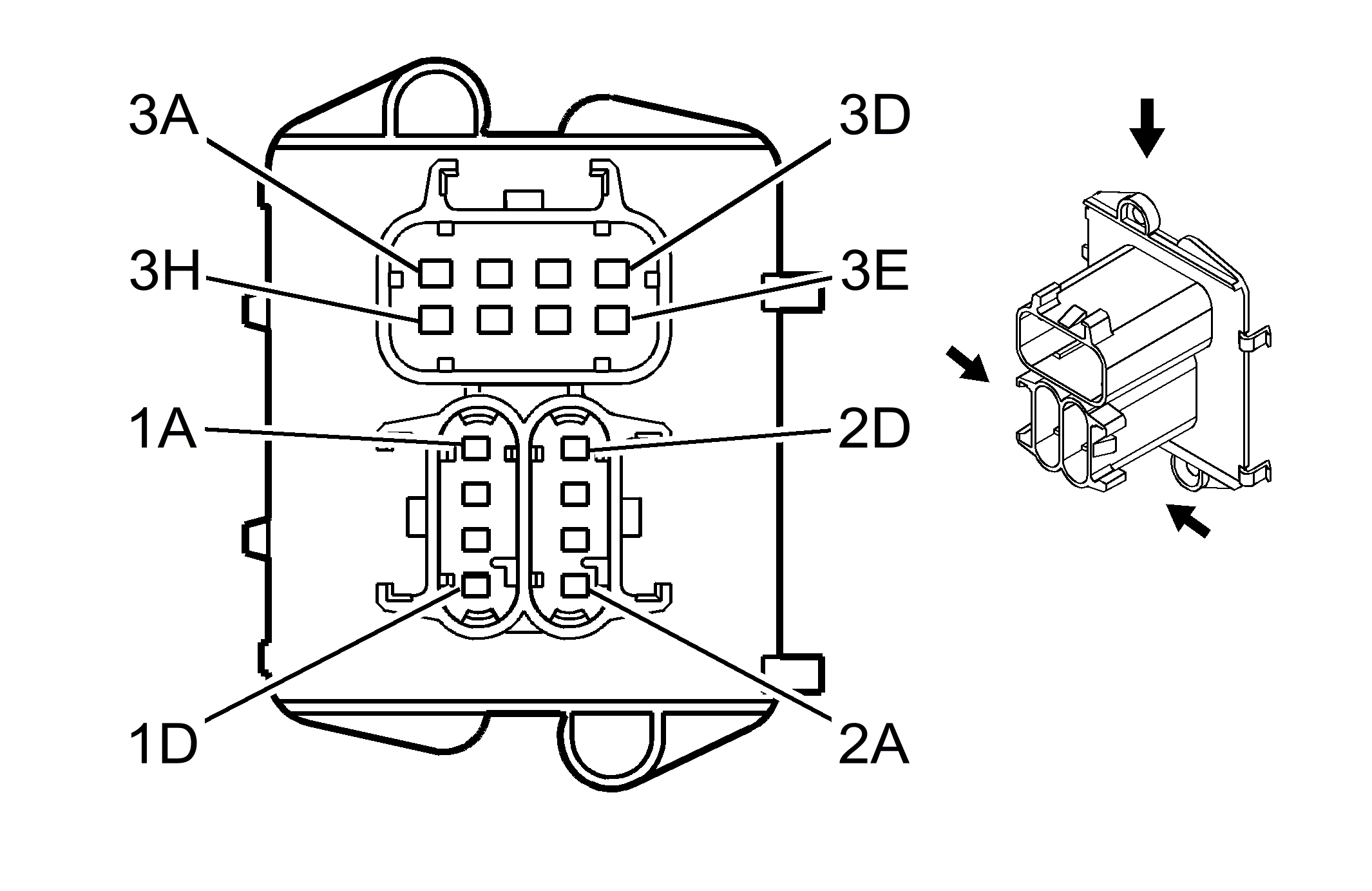

GM646362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146437
  • 4-Way F Metri-Pack 150 Series Sealed (GRY)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack Mixed Series (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 883 Right Rear Wheel Speed Sensor Low Reference 1A WHT 883 Right Rear Wheel Speed Sensor Low Reference
B BRN 882 Right Rear Wheel Speed Sensor Signal 1B BRN 882 Right Rear Wheel Speed Sensor Signal
C RED 885 Left Rear Wheel Speed Sensor Low Reference 1C RED 885 Left Rear Wheel Speed Sensor Low Reference
D BLK 884 Left Rear Wheel Speed Sensor Signal 1D BLK 884 Left Rear Wheel Speed Sensor Signal
C413 Body Harness to Canister Vent Harness

GM646171Courtesy of GENERAL MOTORS CORP.
GM646362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324262
  • 4-Way F Metri-Pack 150 Series Sealed (NAT)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack Mixed Series (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 241 Ignition 3 Voltage 2A BRN 241 Ignition 3 Voltage
B WHT 1310 EVAP Canister Vent Solenoid Control 2B WHT 1310 EVAP Canister Vent Solenoid Control
C-D - - Not Used 2C-2D - - Not Used
C413 Body Harness to Fuel Pump and Sender Assembly Harness

GM795624Courtesy of GENERAL MOTORS CORP.
GM646362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317610
  • 7-Way F Metri-Pack 280 Series (LT GRY)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack Mixed Series (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 150 Ground 3A BLK 650 Ground
B BLK/WHT 651 Ground 3B BLK 2759 Low Reference
C GRY 120 Fuel Pump Supply Voltage 3C GRY 120 Fuel Pump Supply Voltage
D PPL 30 Fuel Level Sensor Signal 3D PPL 1589 Fuel Level Sensor Signal
E - - Not Used 3E - - Not Used
F GRY/BLK 416 5 Volt Reference 3F GRY 2709 5 Volt Reference
G DK GRN 890 Fuel Tank Pressure Sensor Signal 3G DK GRN 890 Fuel Tank Pressure Sensor Signal
H ORN/BLK 469 Low Reference 3H BLK 2759 Low Reference
BLK 2759 Low Reference
C500 Body Harness to Left Front Door Harness (A31)

GM646392Courtesy of GENERAL MOTORS CORP.
GM808884Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304690
  • 18-Way F Global Terminal Mixed Series (MD GRY)
 Connector Part Information
  • 15336467
  • 18-Way M Global Terminal Mixed Series (MD GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PPL/WHT 889 Right Mirror Motor Down - Oldsmobile A1 PPL/WHT 889 Right Rear Motor Down - Oldsmobile
A1 BRN/WHT 1498 Right Rear Motor Up - Pontiac A1 BRN/WHT 1498 Right Rear Motor Up - Pontiac
A2 RED/WHT 881 Passenger Mirror Motor Right Control A2 RED/WHT 881 Passenger Mirror Motor Right Control
A3 - - Not Used A3 - - Not Used
A4 LT BLU 166 Power Window Master Switch Right Front Up Signal A4 LT BLU 166 Power Window Master Switch Right Front Up Signal
A5 TAN 167 Power Window Master Switch Right Front Down Signal A5 TAN 167 Power Window Master Switch Right Front Down Signal
A6 BLK 550 Ground A6 BLK 550 Ground
A7-A9 - - Not Used A7-A9 - - Not Used
B1 GRY 8 Instrument Panel Lamp Supply Voltage -1 Oldsmobile B1 GRY 8 Instrument Panel Lamp Supply Voltage -1 Oldsmobile
B1 - - Not Used - Pontiac B1 - - Not Used - Pontiac
B2 BLK 550 Ground B2 BLK 550 Ground
B3 - - Not Used B3 - - Not Used
B4 BRN 141 Ignition 3 Voltage B4 BRN 141 Ignition 3 Voltage
B5 YEL 1956 Left Front Tweeter Speaker Output (-) (w/U85) B5 YEL 1956 Left Front Tweeter Speaker Output (-) (w/U85)
B5 - - Not Used (-U85) B5 - - Not Used (-U85)
B6 BLK 1856 Left Front Tweeter Speaker Output (+) (w/U85) B6 BLK 1856 Left Front Tweeter Speaker Output (+) (w/U85)
B6 - - Not Used (-U85) B6 - - Not Used (-U85)
B7 - - Not Used B7 - - Not Used
B8 ORN 1840 Battery Positive Voltage B8 ORN 1840 Battery Positive Voltage
B9 GRY 90 Passenger Mirror Motor Left Control B9 GRY 90 Passenger Mirror Motor Left Control
C501 Body Harness to Left Front Door Harness

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304692
  • 18-Way F Global Terminal Mixed Series (BLK)
 Connector Part Information
  • 15336468
  • 18-Way M Global Terminal Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 LT GRN/
BLK		 394 Driver Door Ajar Switch Signal A1 LT GRN/
BLK		 394 Driver Door Ajar Switch Signal
A2 BLK/WHT 1576 Trunk Release Switch Signal A2 BLK 1576 Trunk Release Switch Signal
A3 BLK 550 Ground A3 BLK 550 Ground
A4 LT GRN 170 Power Window Master Switch Right Rear Up Signal (w/A31) A4 LT GRN 170 Power Window Master Switch Right Rear Up Signal (w/A31)
A5 PPL 171 Power Window Master Switch Right Rear Down Signal (w/A31) A5 PPL 171 Power Window Master Switch Right Rear Down Signal (w/A31)
A6-A7 - - Not Used A6-A7 - - Not Used
A8 TAN 294 Door Lock Actuator Unlock Control A8 TAN 694 Driver Door Lock Actuator Unlock Control
A9 GRY 295 Door Lock Actuator Lock Control A9 GRY 295 Door Lock Actuator Lock Control
B1 GRY 118 Left Front Speaker Output (-) (-U85) B1 GRY 118 Left Front Speaker Output (-) (-U85)
B1 LT BLU 1957 Left Front Midrange Speaker Output (-) (w/U85) B1 LT BLU 1957 Left Front Midrange Speaker Output (-) (w/U85)
B2 BLK 650 Ground B2 BLK 650 Ground
B3 WHT 682 Door Lock Lock/Unlock Signal B3 WHT 682 Door Lock Lock/Unlock Signal
B4 DK BLU 1307 Power Window Master Switch Lockout Signal (Sedan w/A31) B4 DK BLU/WHT 1307 Power Window Master Switch Lockout Signal (Sedan w/A31and w/U85)
B4 DK BLU 1307 Power Window Master Switch Lockout Signal (Sedan w/A31and w/UQ2)
B4-B6 - - Not Used - Coupe B4-B6 - - Not Used - Coupe
B5 DK GRN 168 Power Window Master Switch Left Rear Up Signal - Sedan B5 DK GRN 168 Power Window Master Switch Left Rear Up Signal - Sedan
B6 PPL/WHT 169 Power Window Master Switch Left Rear Down Signal - Sedan B6 PPL 169 Power Window Master Switch Left Rear Down Signal - Sedan
B7 GRY 8 Instrument Panel Lamp Supply Voltage -1 B7 GRY 8 Instrument Panel Lamp Supply Voltage -1
B8 TAN 201 Left Front Speaker Output (+) (-U85) B8 TAN 201 Left Front Speaker Output (+) (-U85)
B8 DK BLU 1857 Left Front Midrange Speaker Output (+) (w/U85) B8 DK BLU 1857 Left Front Midrange Speaker Output (+) (w/U85)
B9 - - Not Used B9 - - Not Used
C600 Body Harness to Right Front Door Harness

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304692
  • 18-Way F Global Terminal Mixed Series (BLK)
 Connector Part Information
  • 15336468
  • 18-Way M Global Terminal Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BRN/WHT 1498 Passenger Mirror Motor Up Control - Oldsmobile A1 PPL/WHT 889 Passenger Mirror Motor Down Control - Oldsmobile
A1 BRN/WHT 1498 Passenger Mirror Motor Up Control - Pontiac A1 BRN/WHT 1498 Passenger Mirror Motor Up Control - Pontiac
A2 RED/WHT 881 Passenger Mirror Motor Right Control A2 RED/WHT 881 Passenger Mirror Motor Right Control
A3 BLK 550 Ground A3 BLK 550 Ground
A4 LT BLU 166 Power Window Master Switch Right Front Up Signal A4 LT BLU 166 Power Window Master Switch Right Front Up Signal
A5 TAN 167 Power Window Master Switch Right Front Down Signal A5 TAN 167 Power Window Master Switch Right Front Down Signal
A6 LT BLU 395 Passenger Door Ajar Switch Signal A6 LT BLU 395 Passenger Door Ajar Switch Signal
A7 - - Not Used A7 - - Not Used
A8 TAN 294 Door Lock Actuator Unlock Control A8 TAN 294 Door Lock Actuator Unlock Control
A9 GRY 295 Door Lock Actuator Lock Control A9 GRY 295 Door Lock Actuator Lock Control
B1 DK GRN 117 Right Front Speaker Output (-) (-U85) B1 DK GRN 117 Right Front Speaker Output (-) (-U85)
B1 DK GRN 1953 Right Front Midrange Speaker Output (-) (w/U85) B1 DK GRN 1953 Right Front Midrange Speaker Output (-) (w/U85)
B2 BLK 650 Ground B2 BLK 650 Ground
B3 WHT 682 Door Lock Lock/Unlock Signal B3 WHT 682 Door Lock Lock/Unlock Signal
B4 DK BLU 1307 Power Window Master Switch Lockout Signal - Sedan B4 DK BLU 1307 Power Window Master Switch Lockout Signal - Sedan
B4 DK BLU/
WHT		 1307 Power Window Master Switch Lockout Signal - Sedan B4 DK BLU/
WHT		 1307 Power Window Master Switch Lockout Signal - Sedan
B4 BRN 141 Ignition 3 Voltage - Coupe B4 BRN 141 Ignition 3 Voltage - Coupe
B5 PPL 1952 Right Front Tweeter Speaker Output (-) B5 PPL 1952 Right Front Tweeter Speaker Output (-)
B6 LT GRN 1852 Right Front Tweeter Speaker Output (+) B6 LT GRN 1852 Right Front Tweeter Speaker Output (+)
B7 GRY 8 Instrument Panel Lamp Supply Voltage -1 B7 GRY 8 Instrument Panel Lamp Supply Voltage -1
B8 ORN 1853 Right Front Midrange Speaker Output (+) (w/U85) B8 ORN 1853 Right Front Midrange Speaker Output (+) (w/U85)
B8 LT GRN 200 Right Front Speaker Output (+) (-U85) B8 LT GRN 200 Right Front Speaker Output (+) (-U85)
B9 GRY 90 Passenger Mirror Motor Left Control B9 GRY 90 Passenger Mirror Motor Left Control
C700 Body Harness to Left Rear Door Harness (-A31)

GM808885Courtesy of GENERAL MOTORS CORP.
GM808887Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191680
  • 2-Way F Global Terminal 150 Series Sealed (BLU)
 Connector Part Information
  • 12191681
  • 2-Way M Global Terminal 150 Series Sealed (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C - - Not Used C - - Not Used
D TAN 294 Door Lock Actuator Unlock Control D TAN 294 Door Lock Actuator Unlock Control
E-J - - Not Used E-J - - Not Used
C700 Body Harness to Left Rear Door Harness (w/A31)

GM768091Courtesy of GENERAL MOTORS CORP.
GM768094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191676
  • 7-Way F Global Terminal Mixed Series Sealed (CRM)
 Connector Part Information
  • 12191677
  • 7-Way M Global Terminal Mixed Series Sealed (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C PPL 169 Power Window Master Switch Left Rear Down Signal C PPL 171 Power Window Master Switch Right Rear Down Signal
D TAN 294 Door Lock Actuator Unlock Control D TAN 294 Door Lock Actuator Unlock Control
E-F - - Not Used E-F - - Not Used
G DK GRN 168 Power Window Master Switch Left Rear Up Signal G LT GRN 170 Power Window Master Switch Right Rear Up Signal
H DK BLU 1307 Power Window Master Switch Lockout Signal (w/UQ2) H DK BLU 1307 Power Window Master Switch Lockout Signal (w/UQ2)
H DK BLU/WHT 1307 Power Window Master Switch Lockout Signal (w/U85) H DK BLU 1307 Power Window Master Switch Lockout Signal (w/U85)
C800 Body Harness to Right Rear Door Harness (w/A31)

GM768091Courtesy of GENERAL MOTORS CORP.
GM768094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191676
  • 7-Way F Global Terminal Mixed Series Sealed (CRM)
 Connector Part Information
  • 12191677
  • 7-Way M Global Terminal Mixed Series Sealed (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C PPL 171 Power Window Master Switch Right Rear Down Signal C PPL 171 Power Window Master Switch Right Rear Down Signal
D TAN 294 Door Lock Actuator Unlock Control D TAN 294 Door Lock Actuator Unlock Control
E-F - - Not Used E-F - - Not Used
G LT GRN 170 Power Window Master Switch Right Rear Up Signal G LT GRN 170 Power Window Master Switch Right Rear Up Signal
H DK BLU 1307 Power Window Master Switch Lockout Signal (wUQ2/UQ8) H DK BLU 1307 Power Window Master Switch Lockout Signal (wUQ2/UQ8)
H DK BLU/WHT 1307 Power Window Master Switch Lockout Signal (w/U85) H DK BLU 1307 Power Window Master Switch Lockout Signal (w/U85)
C800 Body Harness to Right Rear Door Harness (-A31)

GM808885Courtesy of GENERAL MOTORS CORP.
GM808887Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191680
  • 2-Way F Global Terminal 150 Series Sealed (BLU)
 Connector Part Information
  • 12191681
  • 2-Way M Global Terminal 150 Series Sealed (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C - - Not Used C - - Not Used
D TAN 294 Door Lock Actuator Unlock Control D TAN 294 Door Lock Actuator Unlock Control
E-J - - Not Used E-J - - Not Used
About FixVault
