Power Distribution Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

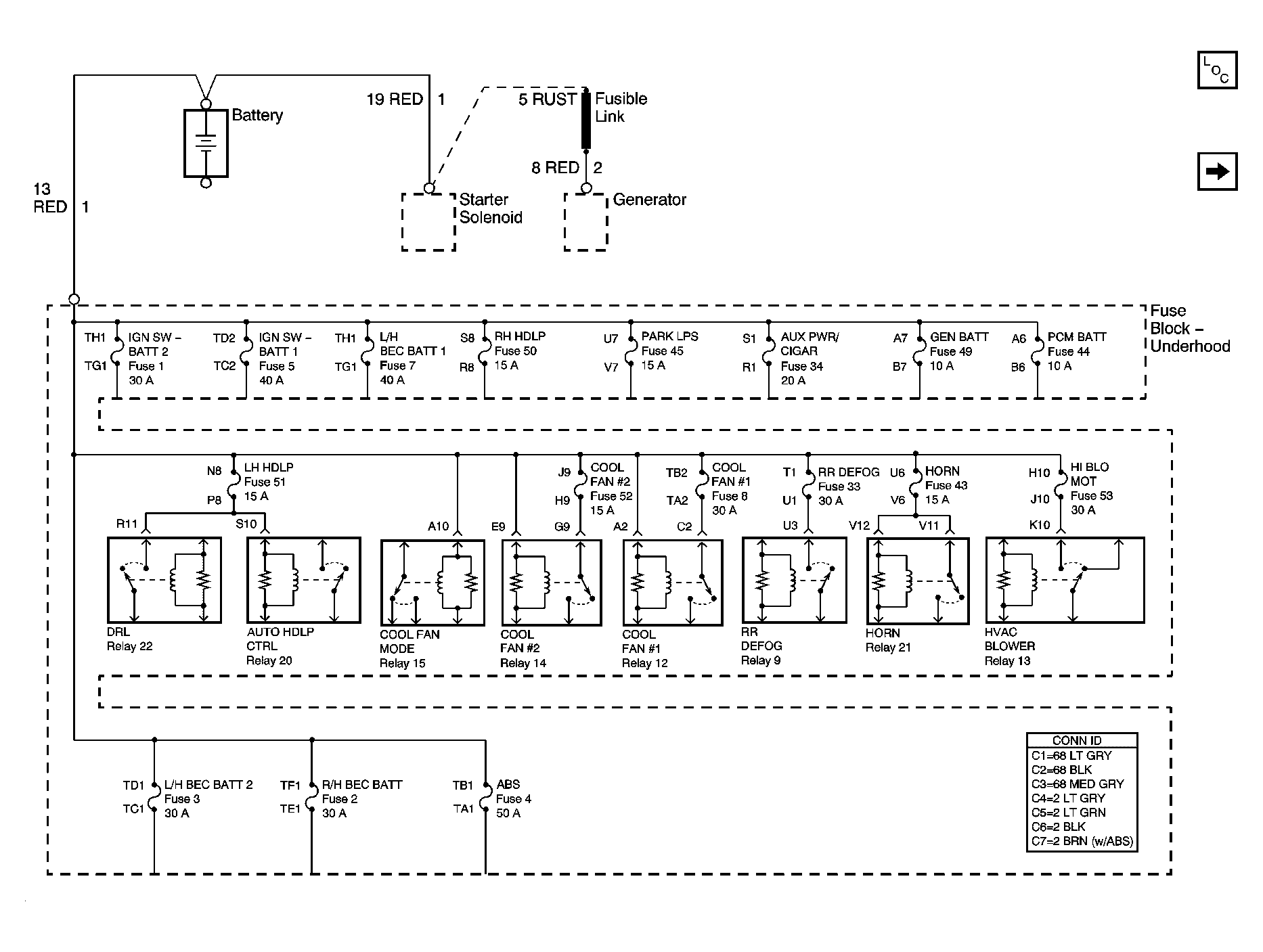

Fig 1: B+ Bus Bar Schematic

GM868988

Courtesy of GENERAL MOTORS CORP.

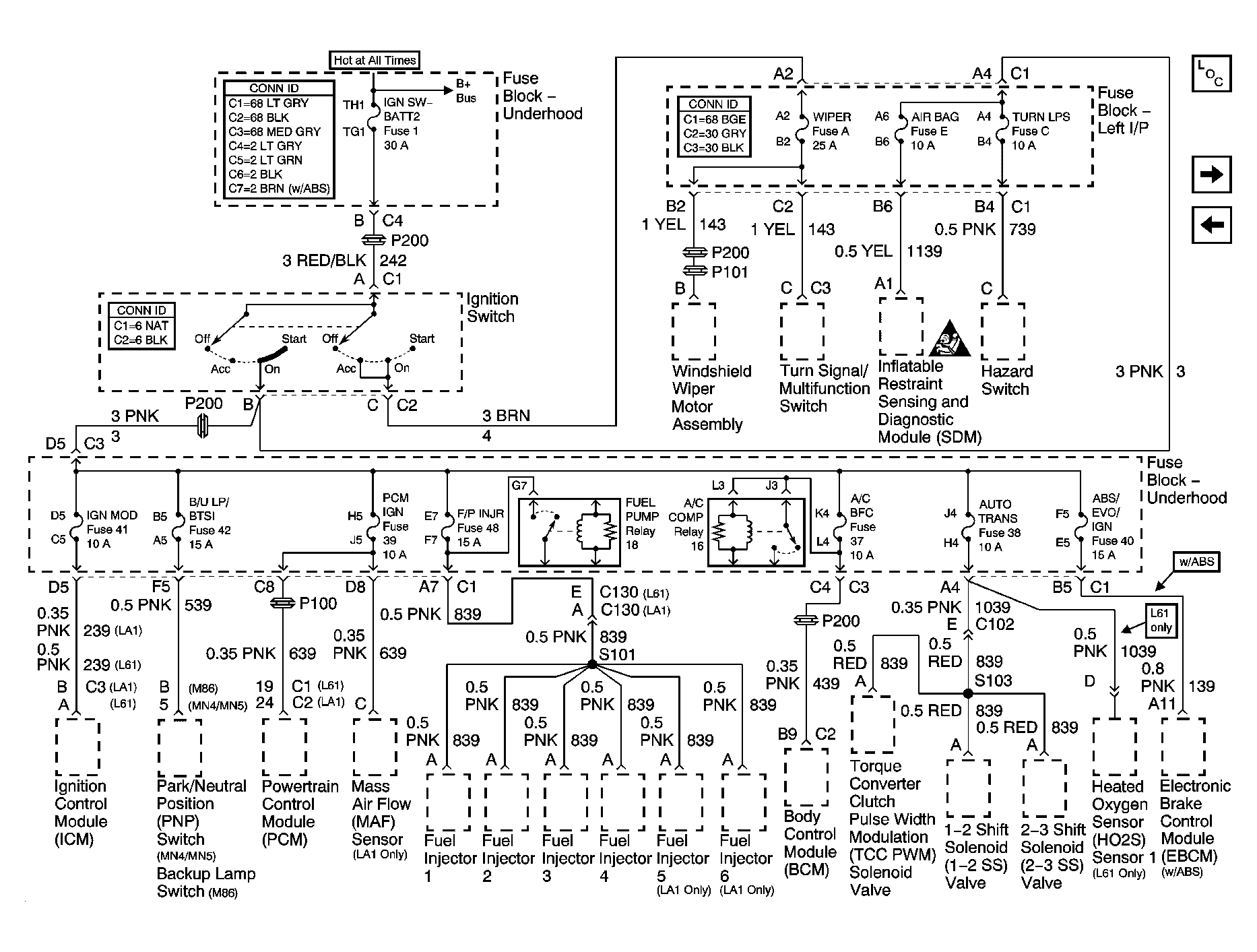

Fig 2: IGN SW-BATT2, WIPER, AIR BAG, TURN LPS, IGN MOD, B/U LP/BTSI, PCM IGN, F/P INJR, A/C BFC, AUTO TRANS, ABS/EVO/IGN Fuses Schematic

GM1217175

Courtesy of GENERAL MOTORS CORP.

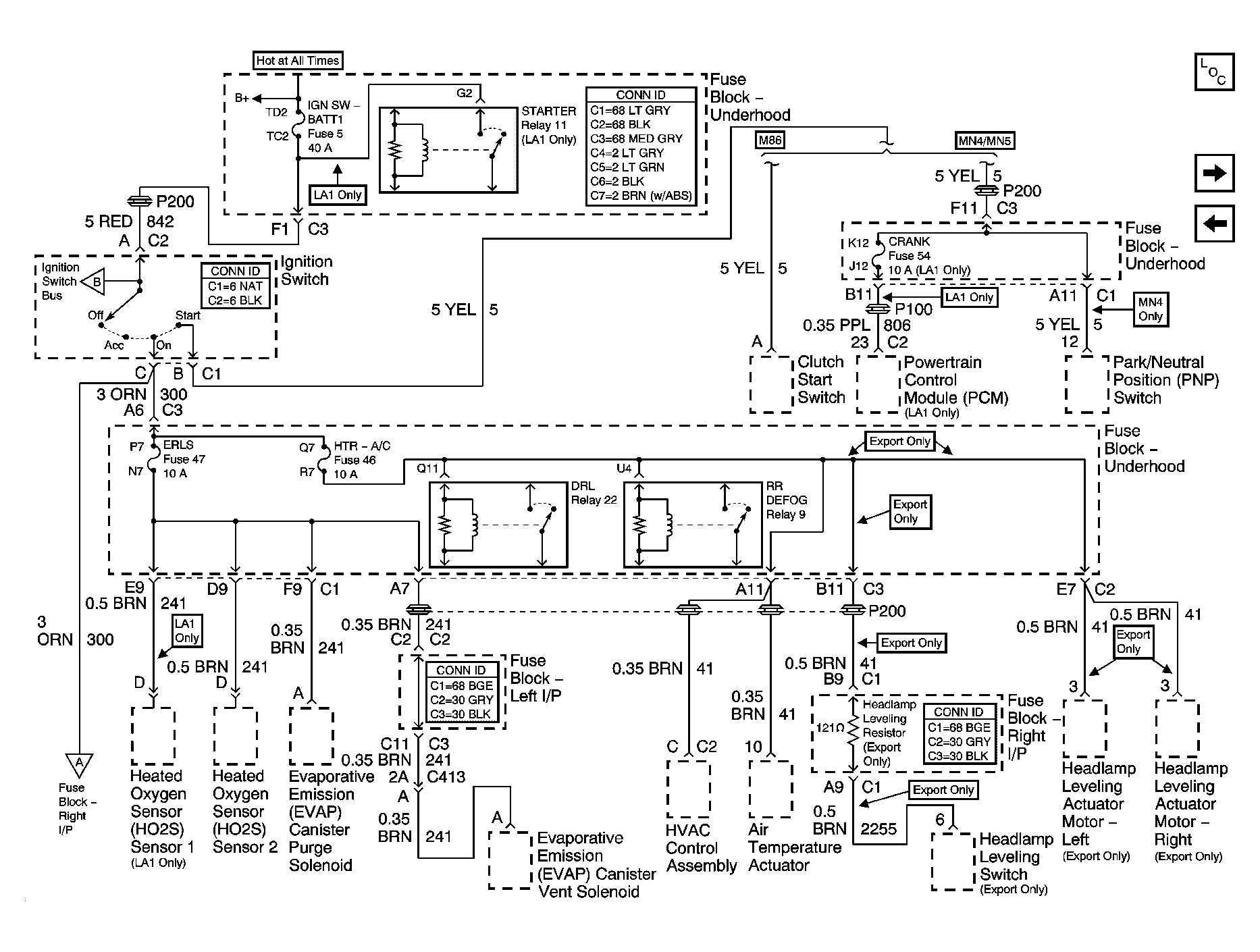

Fig 3: IGN SW-BATT1, HTR A/C, ERLS and CRANK Fuses Schematic

GM1217180

Courtesy of GENERAL MOTORS CORP.

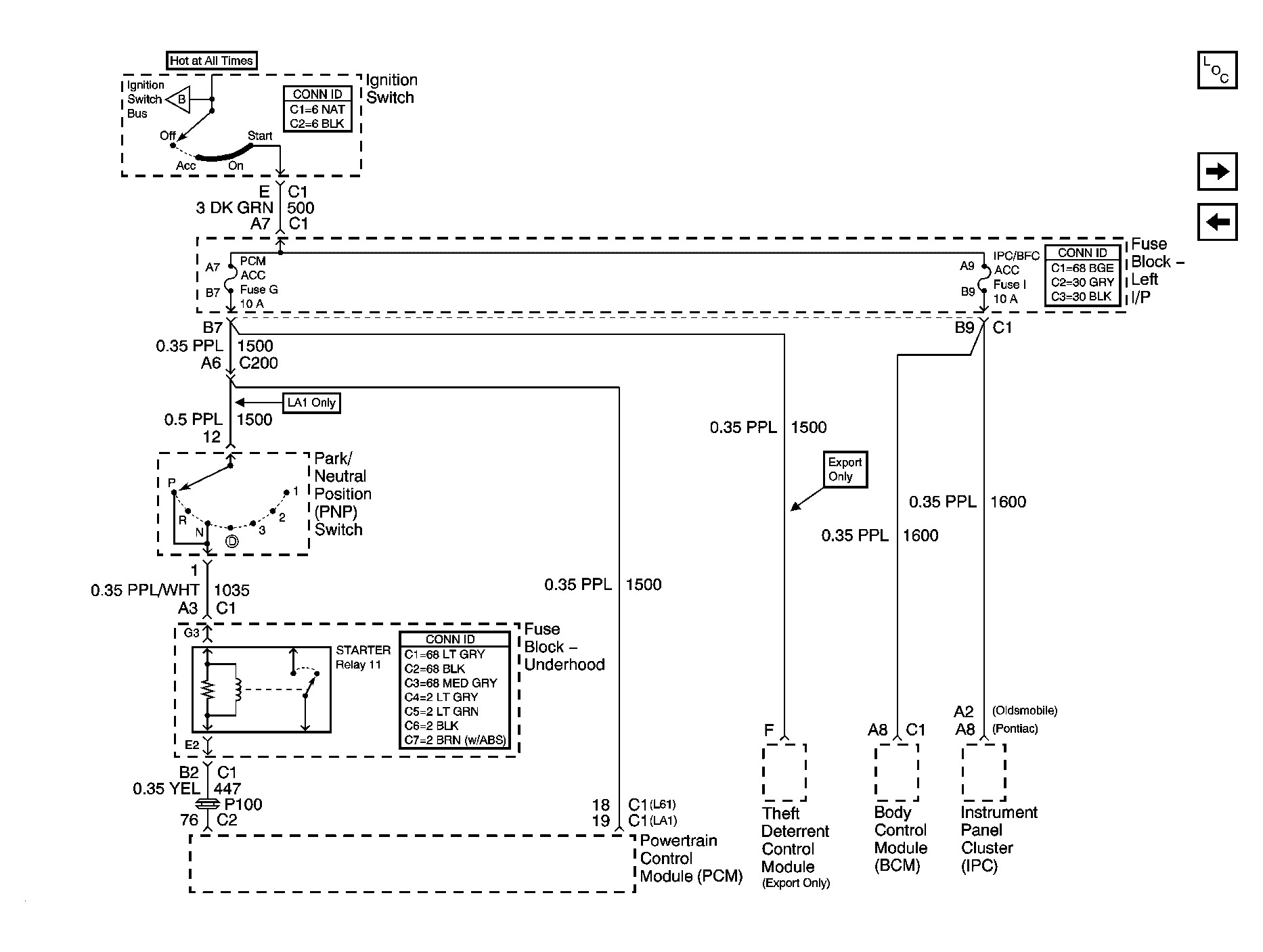

Fig 4: PCM ACC, and IPC/BFC ACC Fuses Schematic

GM1217188

Courtesy of GENERAL MOTORS CORP.

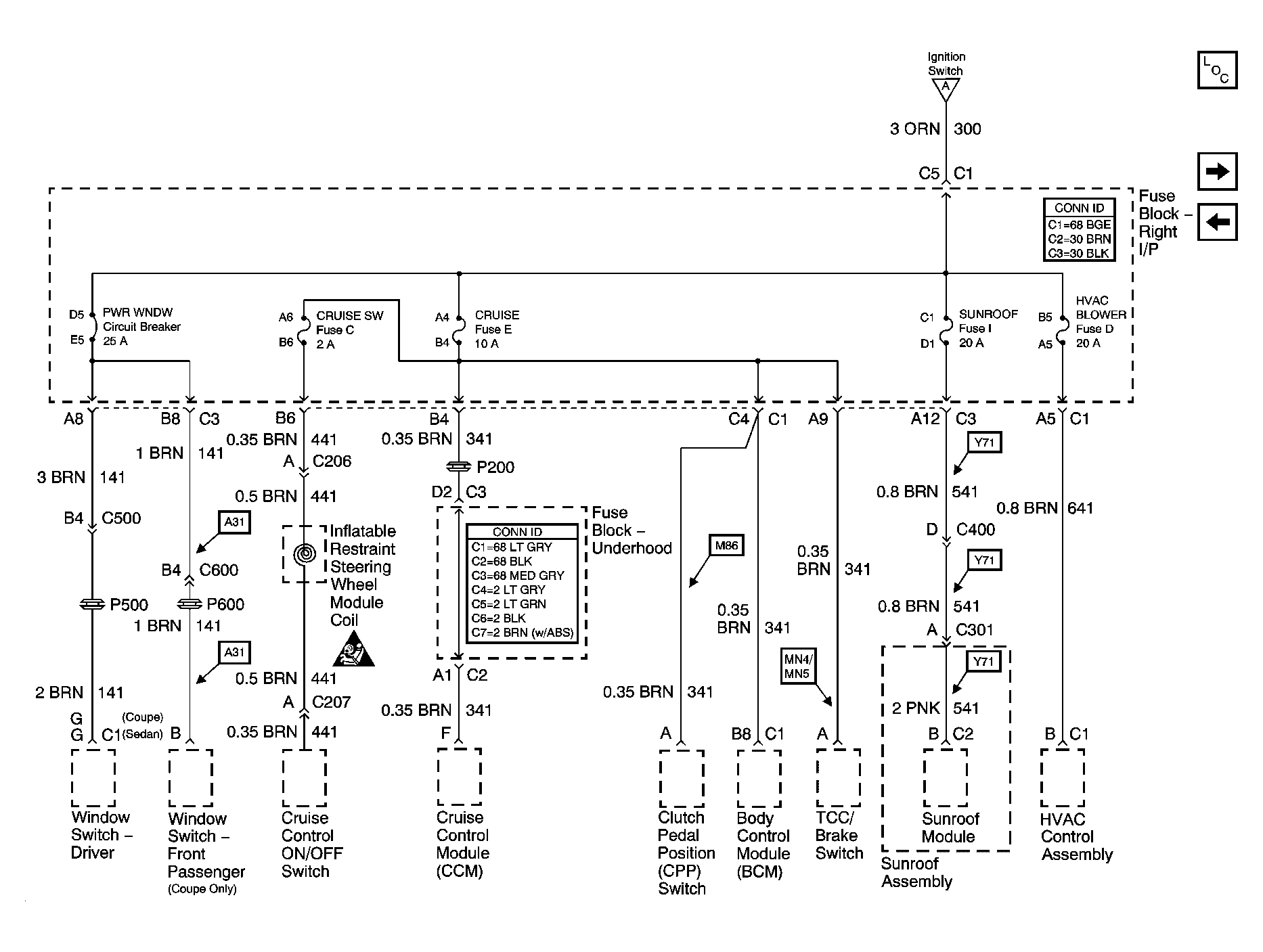

Fig 5: PWR WNDW, Circuit Breaker, CRUISE SW, CRUISE, SUNROOF, HVAC BLOWER Fuses Schematic

GM869001

Courtesy of GENERAL MOTORS CORP.

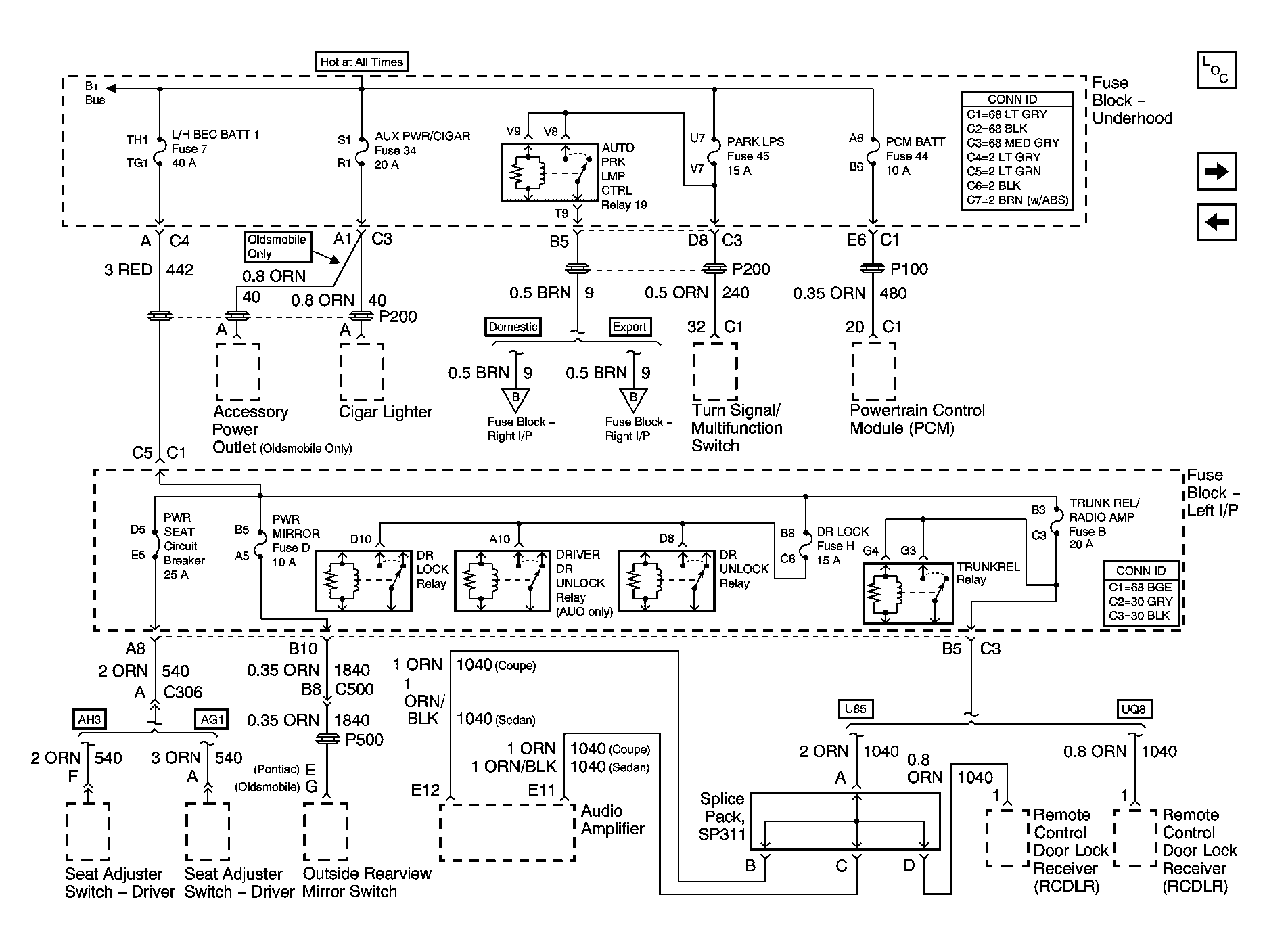

Fig 6: L/H BEC BATT1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWR MIRROR, DR LOCK, TRUNK REL/RFA/Radio Amp Fuses, and PWR SEAT Circuit Breaker Schematic

GM869009

Courtesy of GENERAL MOTORS CORP.

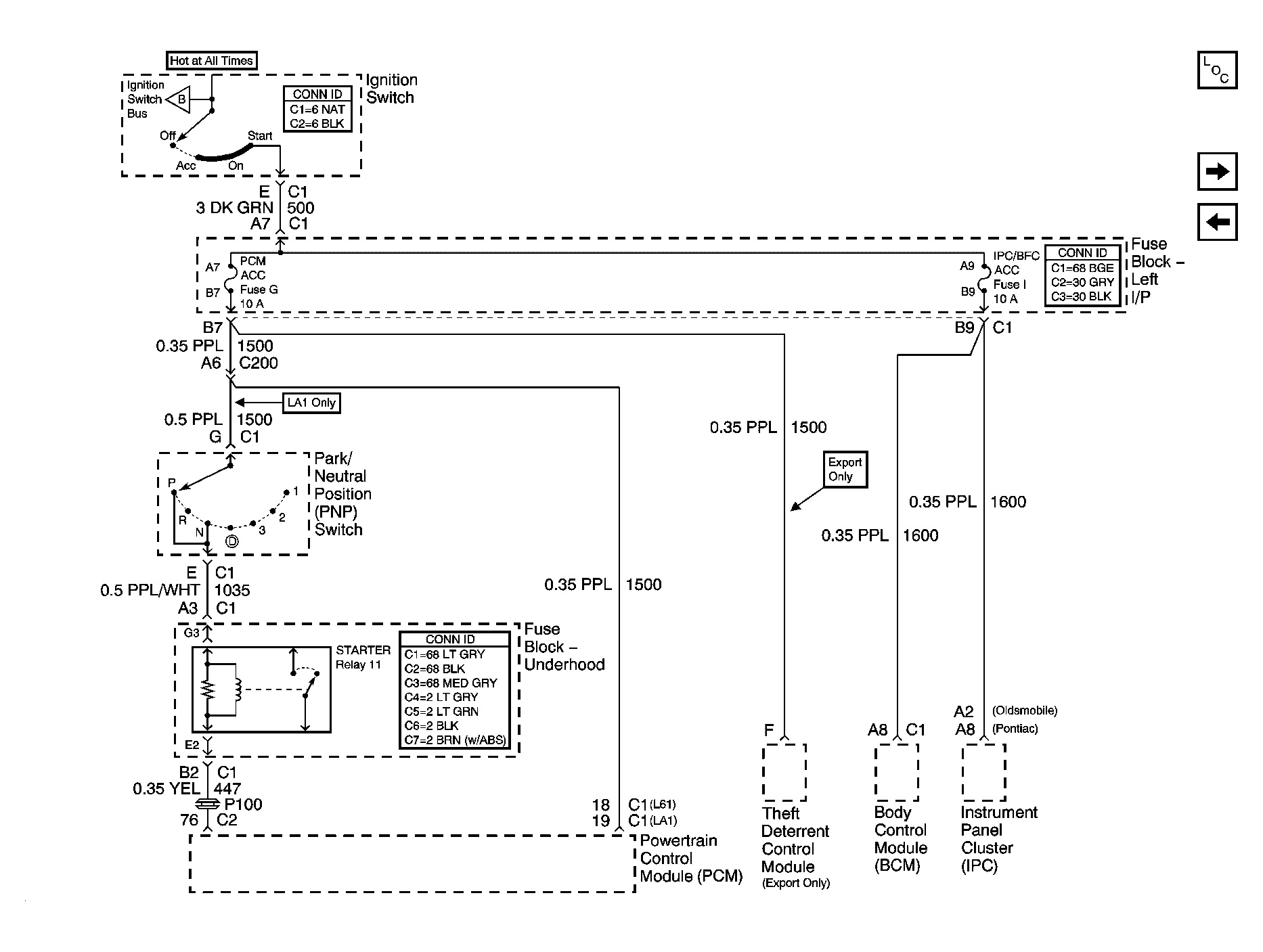

Fig 7: PCM ACC, IPC/BFC ACC Fuses Schematic

GM893522

Courtesy of GENERAL MOTORS CORP.

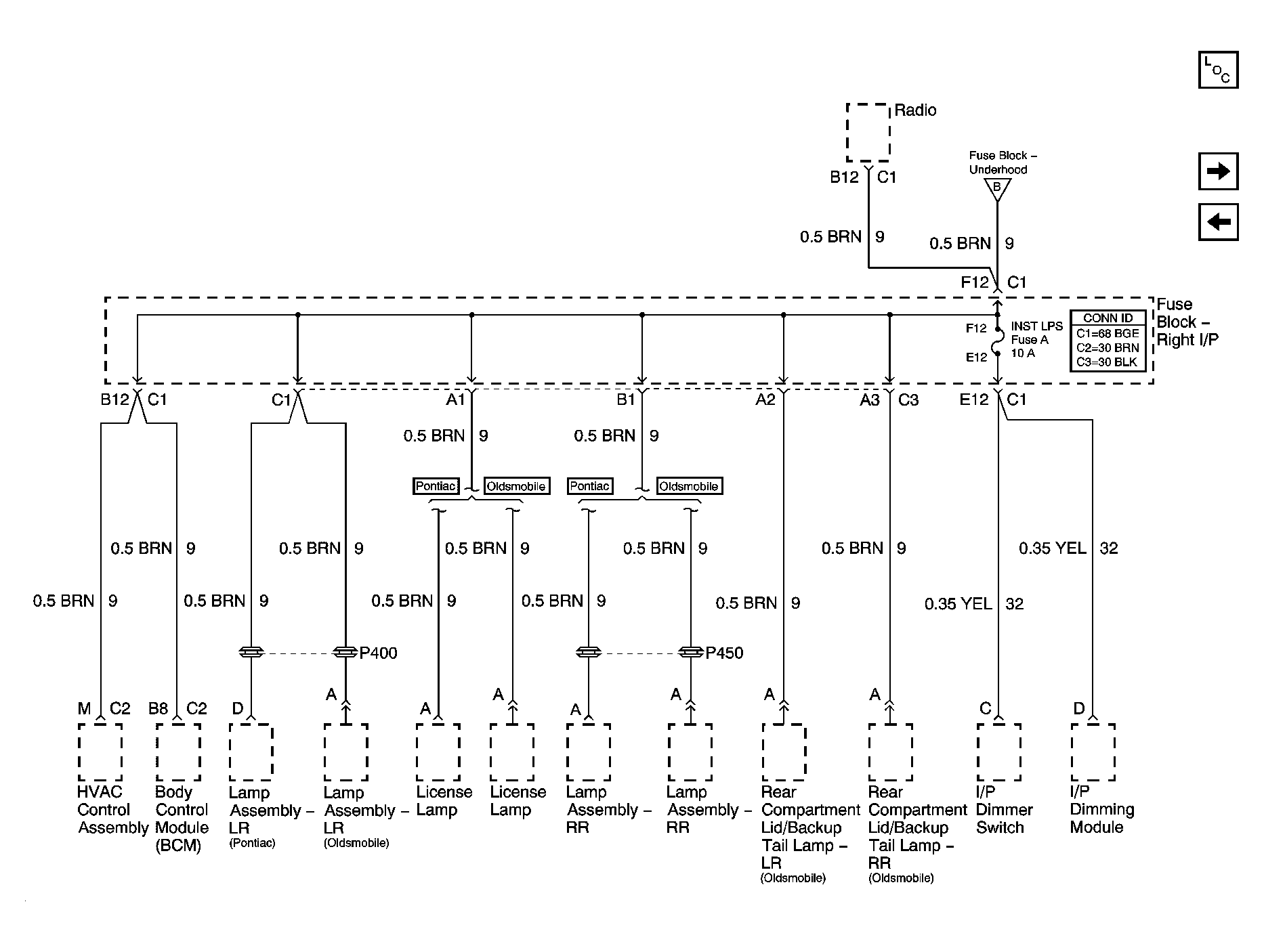

Fig 8: INST LPS Fuse Schematic

GM869015

Courtesy of GENERAL MOTORS CORP.

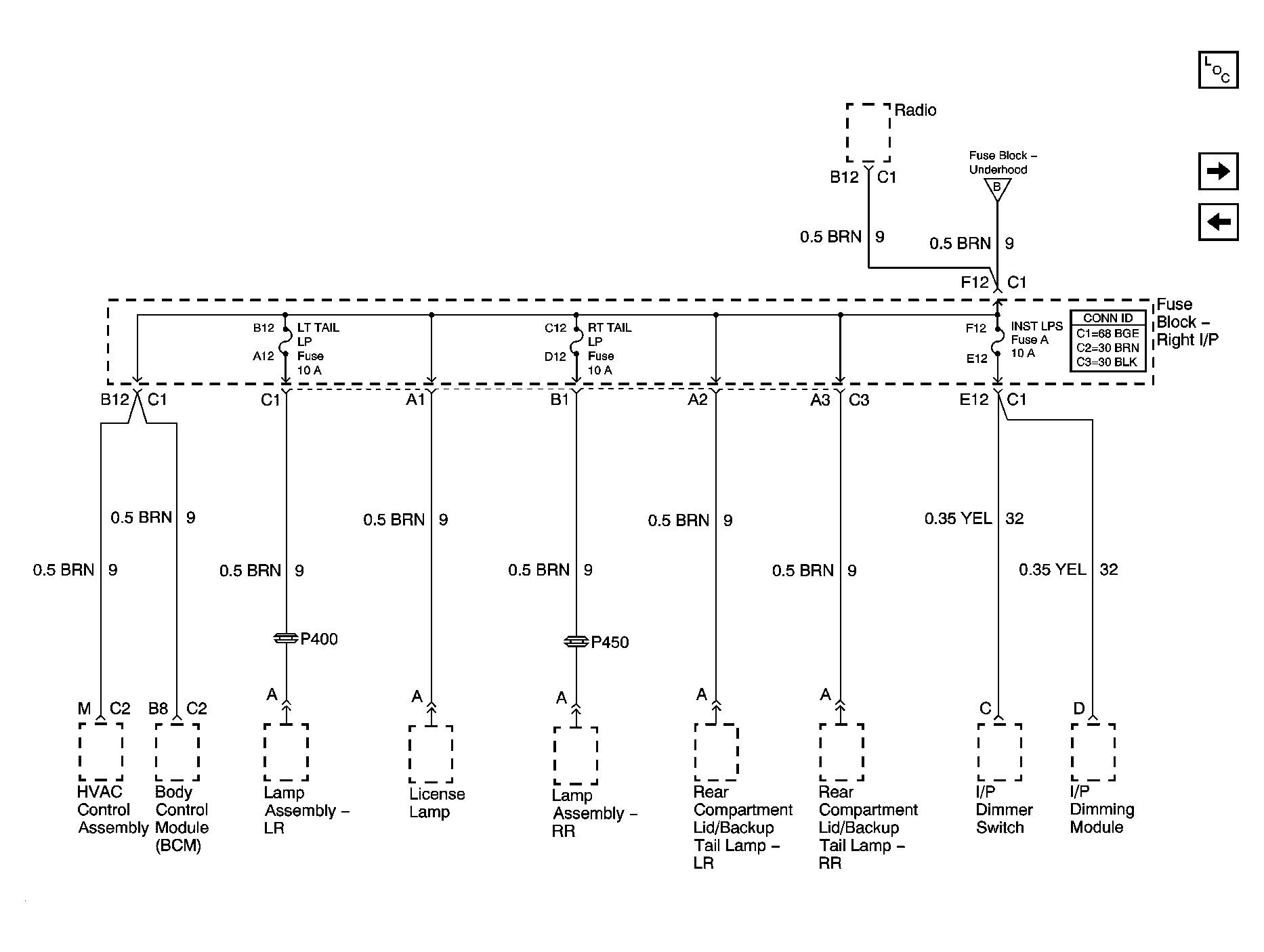

Fig 9: LT TAIL LP, RT TAIL LP and INST LPS Fuses Schematic - Export Only

GM869018

Courtesy of GENERAL MOTORS CORP.

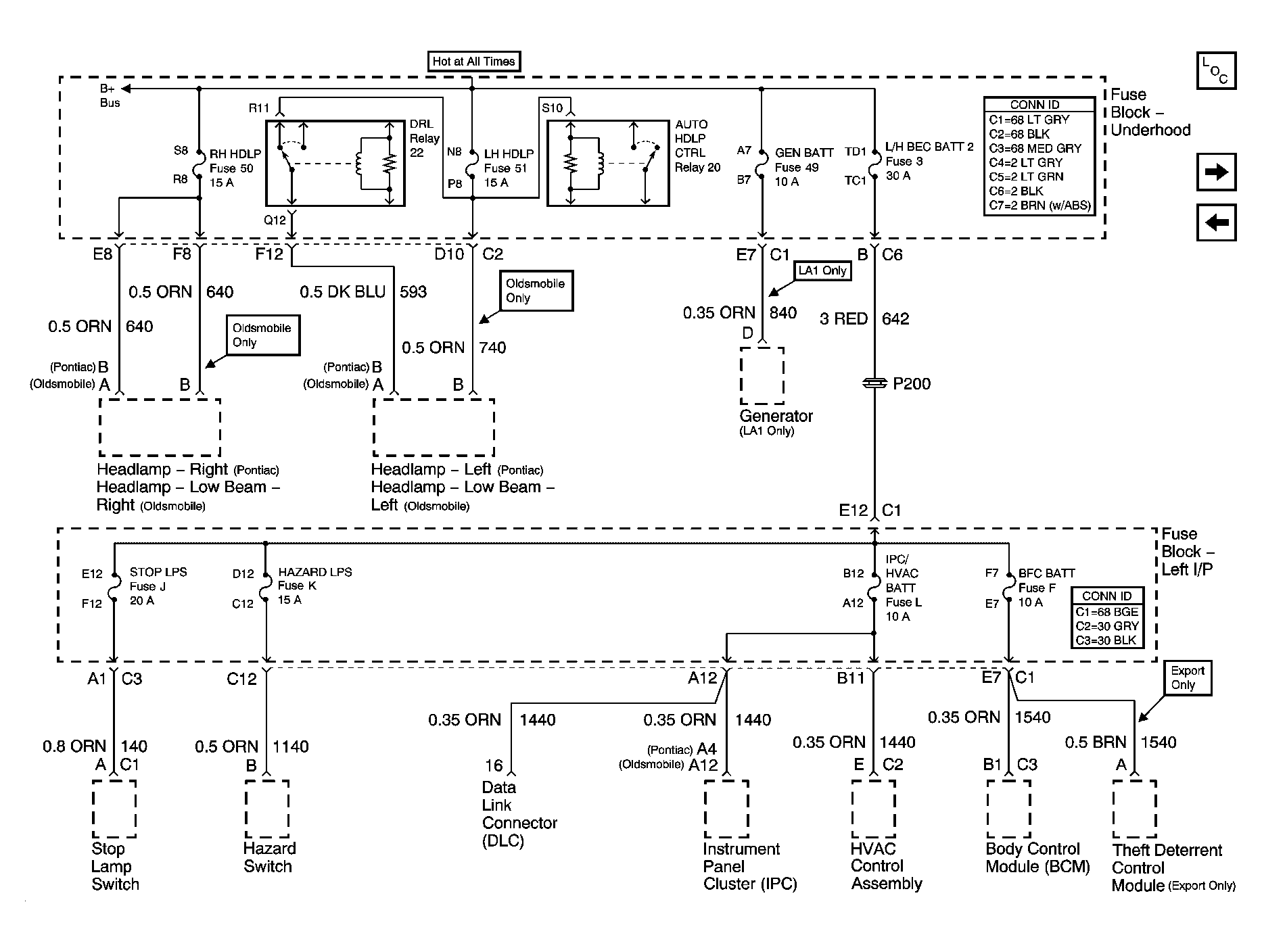

Fig 10: RH HDLP, LH HDLP, GEN BATT, LH BEC BATT2, STOP LPS, HAZARD LPS, IPC/HVAC BATT, BFC BATT Fuses Schematic

GM869026

Courtesy of GENERAL MOTORS CORP.

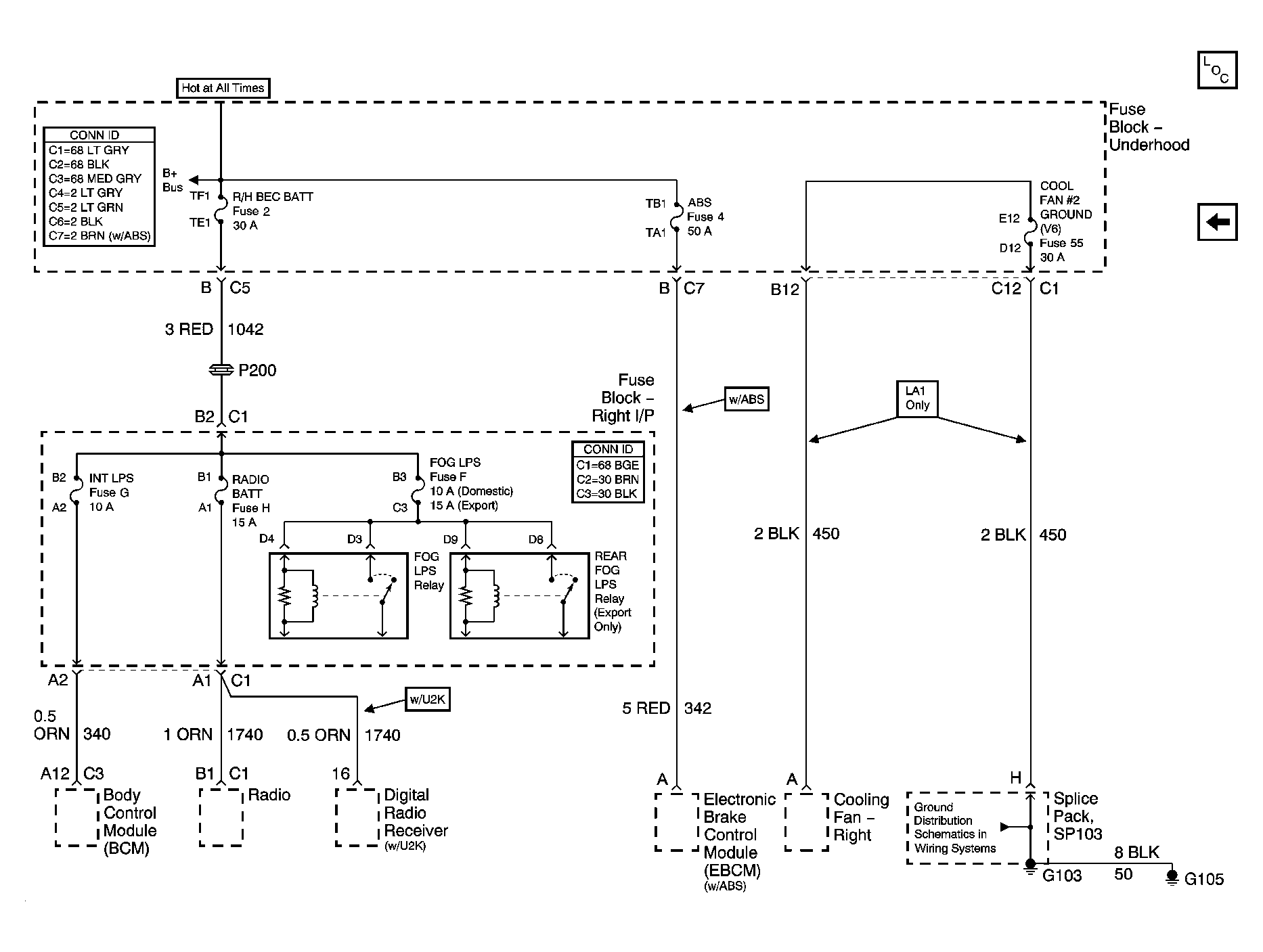

Fig 11: RH BEC BATT, ABS, COOL FAN (V6) GROUND, INT LPS, RADIO BATT, FOG LPS Fuses Schematic

GM869030

Courtesy of GENERAL MOTORS CORP.
