Seat Belt Component Views

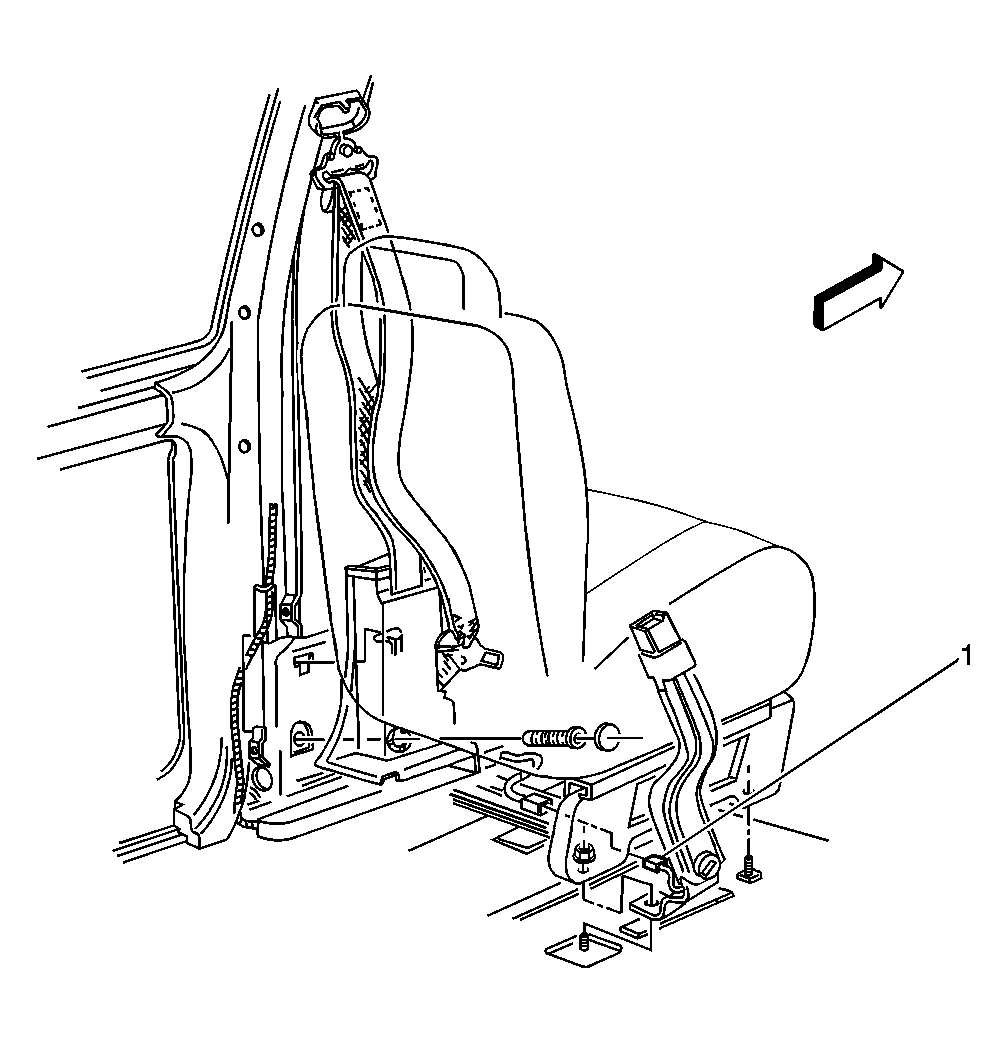

Fig 1: Seat Belt Switch Connector Component View
GM542611Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch Connector
