Rear Frame

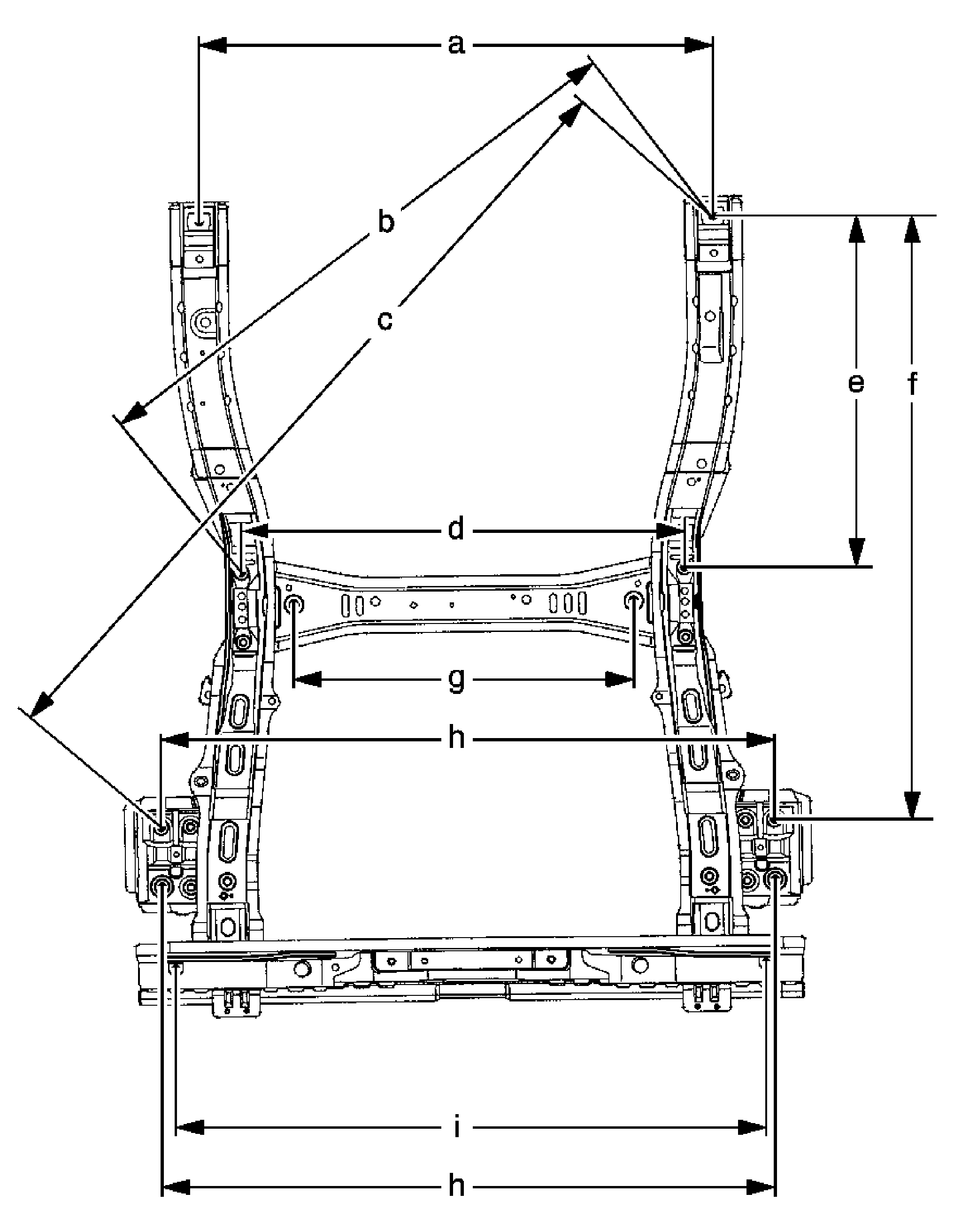

Fig 1: View Of Rear Frame Dimensions

Courtesy of GENERAL MOTORS CORP.

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	1,091	42.6
B	1,271	50.0
C	1,774	69.8
D	938	36.9
E	770	30.3
F	1,318	51.9
G	720	28.3
H	1,296	51.0
I	1,240	48.8
