Power Seat Systems Component Views

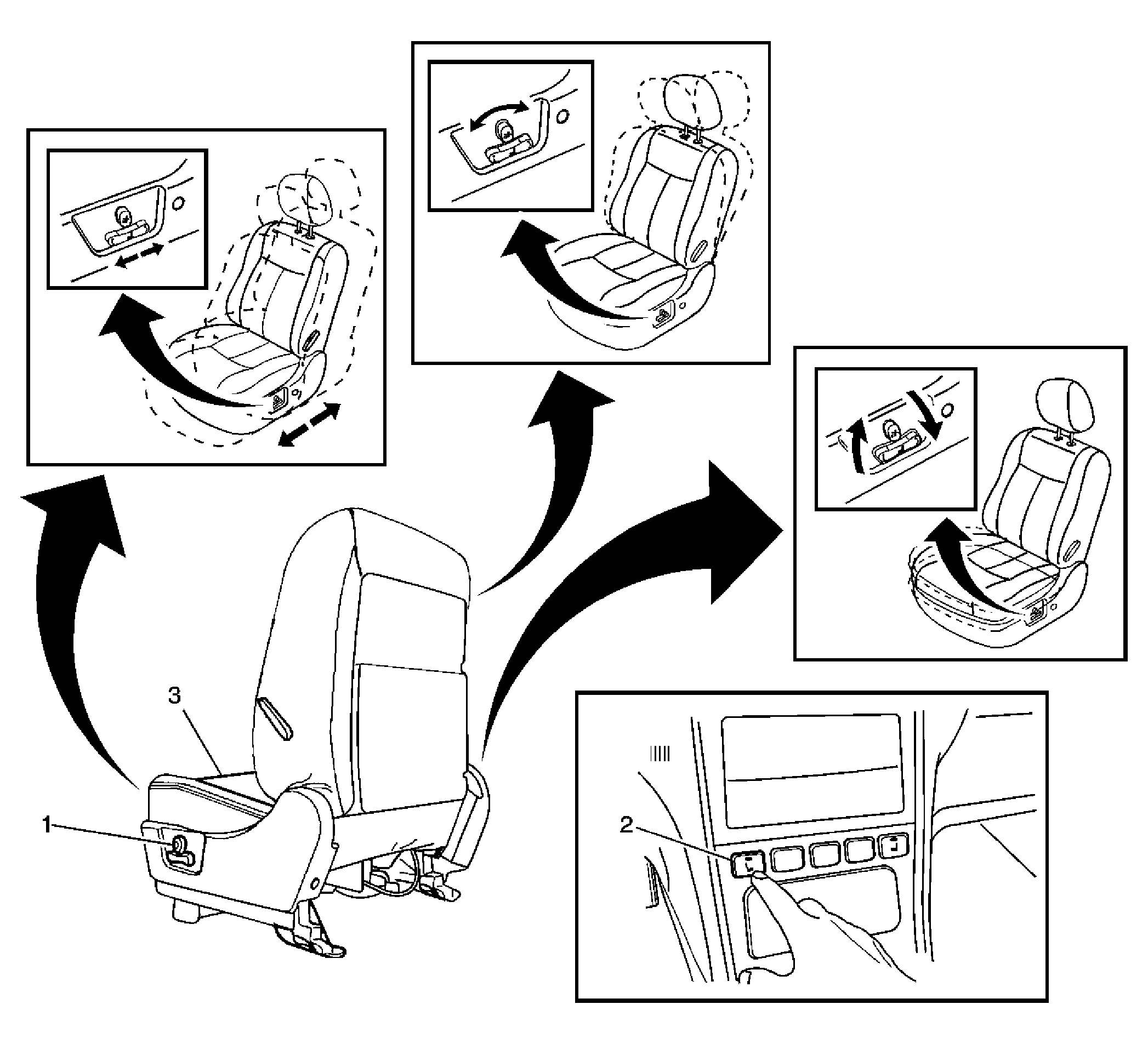

Fig 1: Identifying Power/Heated Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Seat Switch (Left Side Shown, Right Side Similar)
2	Heated Seat Switch
3	Heated Seat Cushion Element (Left Side Shown, Right Side Similar)
