Stationary Windows Component Views

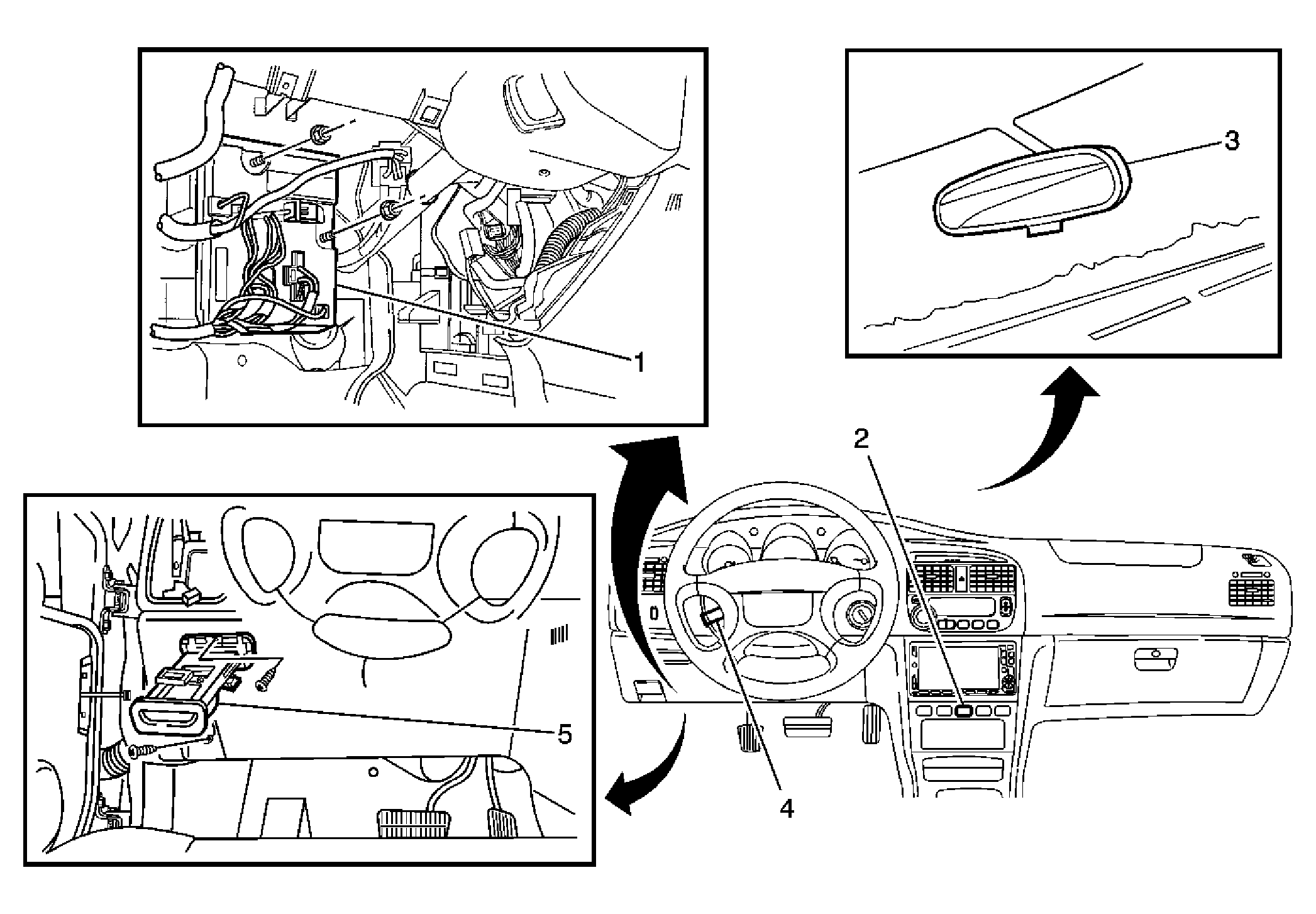

Fig 1: View Of Rearview Mirror And Cruise Control Switch/Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Rear Defogger Switch
3	Inside Rearview Mirror
4	Cruise Control Switch
5	Cruise Control Module

Fig 2: View Of Rear Defog Grid And Antennas

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window (Glass Antenna)
2	Rear Defroster
3	Radio Antenna Module
