Door Lock/Indicator Schematics

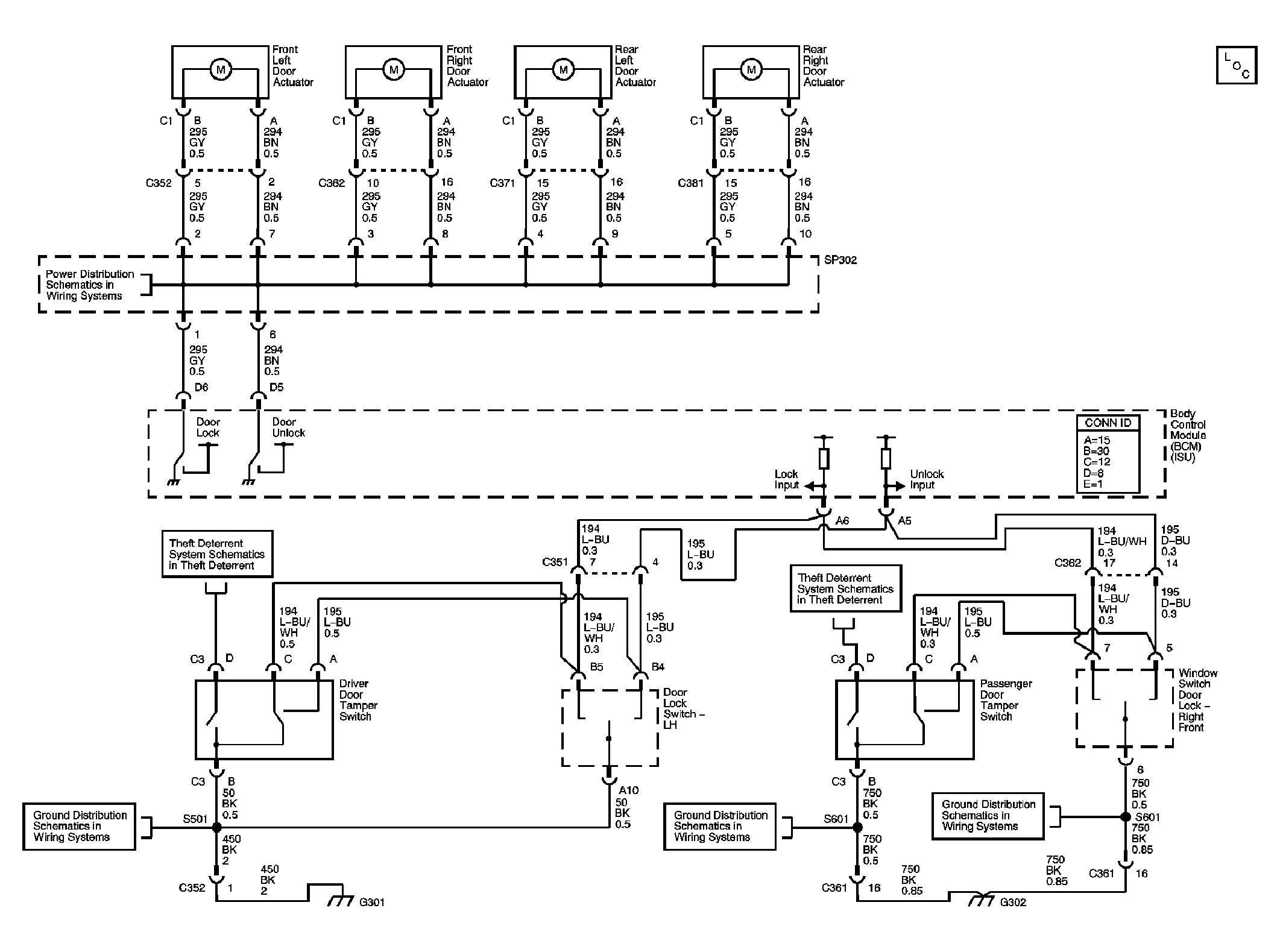

Fig 1: Power Door Locks Schematic
GM1257287Courtesy of GENERAL MOTORS CORP.
