Removal Procedure

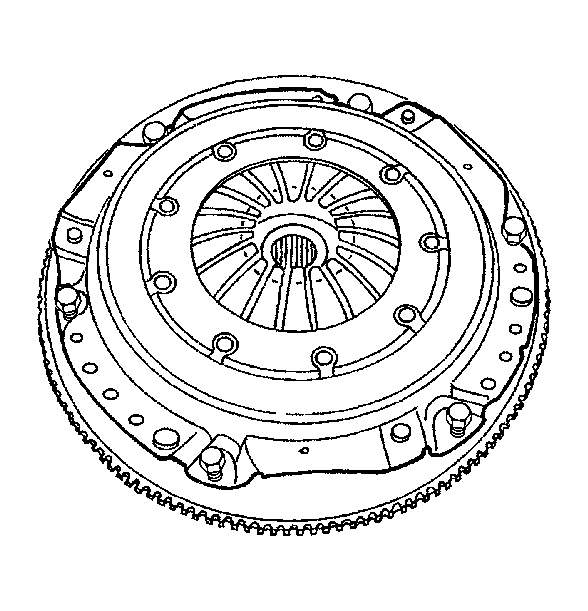

Fig 1: View Of Clutch Pressure Plate And Bolts

GM1255793

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Remove the engine under covers. Refer to Engine Cover Replacement in Frame and Underbody.
Remove the transaxle from the vehicle. Refer to Transmission Replacement in Manual Transmission.
Remove the pressure plate bolts and the pressure plate. Support the pressure plate when removing the last bolt.

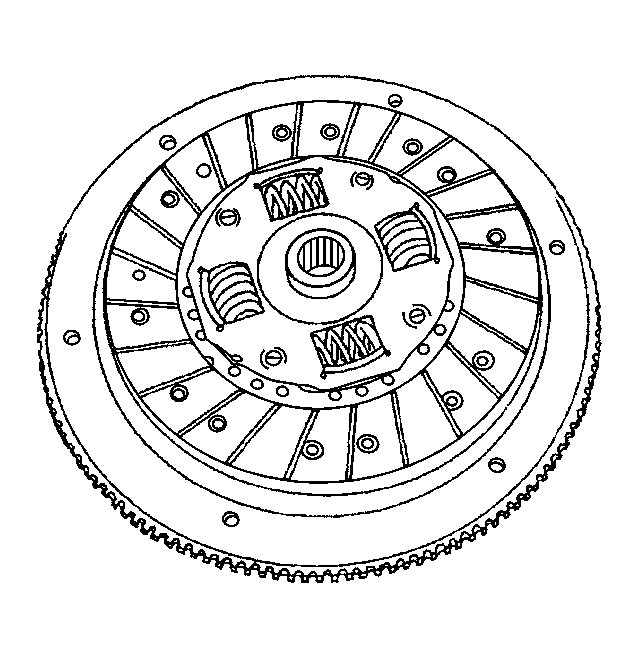

Fig 2: Identifying Clutch Disc

GM1255794

Courtesy of GENERAL MOTORS CORP.

Remove the clutch disc.

Fig 3: Locating Release Fork Bolt

GM1255795

Courtesy of GENERAL MOTORS CORP.

Remove the release fork bolt.

Fig 4: View Of Clutch Release Shaft

GM1255796

Courtesy of GENERAL MOTORS CORP.

Pull the clutch release shaft upward, out of the transaxle.

Fig 5: View Of Fork And Release Bearing

GM1255797

Courtesy of GENERAL MOTORS CORP.

Remove the fork and the release bearing form the release bearing guide sleeve.

Fig 6: View Of Release Bearing Guide Sleeve And Bolts

GM1255798

Courtesy of GENERAL MOTORS CORP.

Remove the bolts and the release bearing guide sleeve.

Fig 7: View Of Input Shaft Removal Procedure

GM1255799

Courtesy of GENERAL MOTORS CORP.

Remove the input shaft seal from the release bearing guide sleeve.

Fig 8: Identifying O-Ring In Groove

GM1255800

Courtesy of GENERAL MOTORS CORP.

Remove the O-ring from the groove in the transaxle case.

Fig 9: View Of Release Lever Shaft Bushing

GM1255801

Courtesy of GENERAL MOTORS CORP.

Remove the release lever shaft bushings.
