Fuel Hose/Pipes Routing Diagram (With L36)

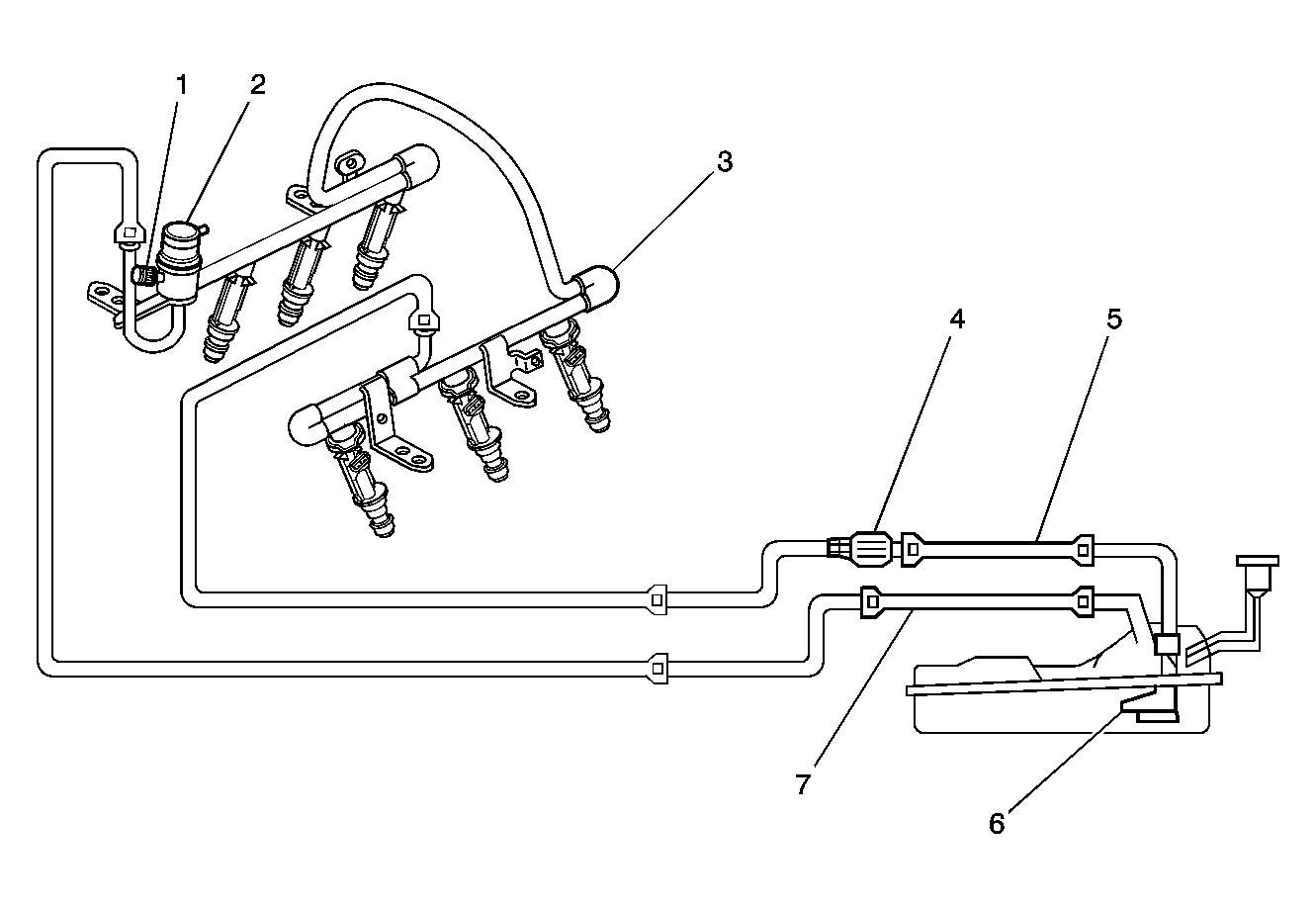

Fig 1: Fuel Hose/Pipes Routing Diagram (With L36)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pressure Service Connection
2	Fuel Pressure Regulator
3	Fuel Injector Rail
4	Fuel Filter
5	Fuel Feed Pipe
6	Fuel Pump Module
7	Fuel Return Pipe
