Radiator Support Replacement
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Support Replacement

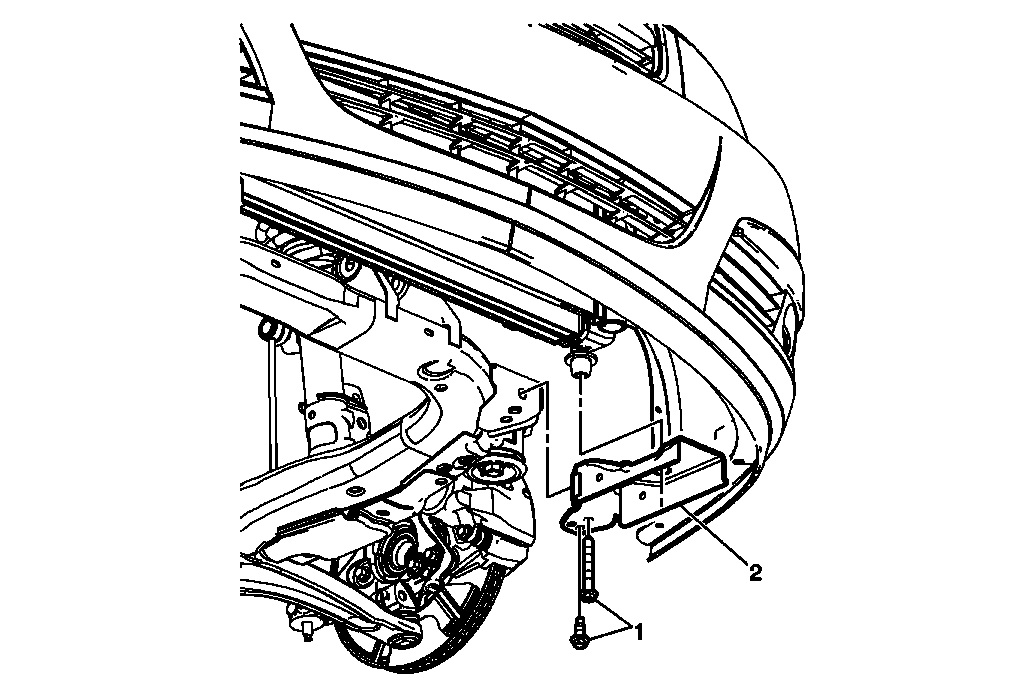

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the lower radiator air baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement . |
|
| 1 | Radiator Support Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 60 N.m (44 lb ft) |
| 2 | Radiator Support Bracket - Lower
|
