Console Replacement - Overhead
WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

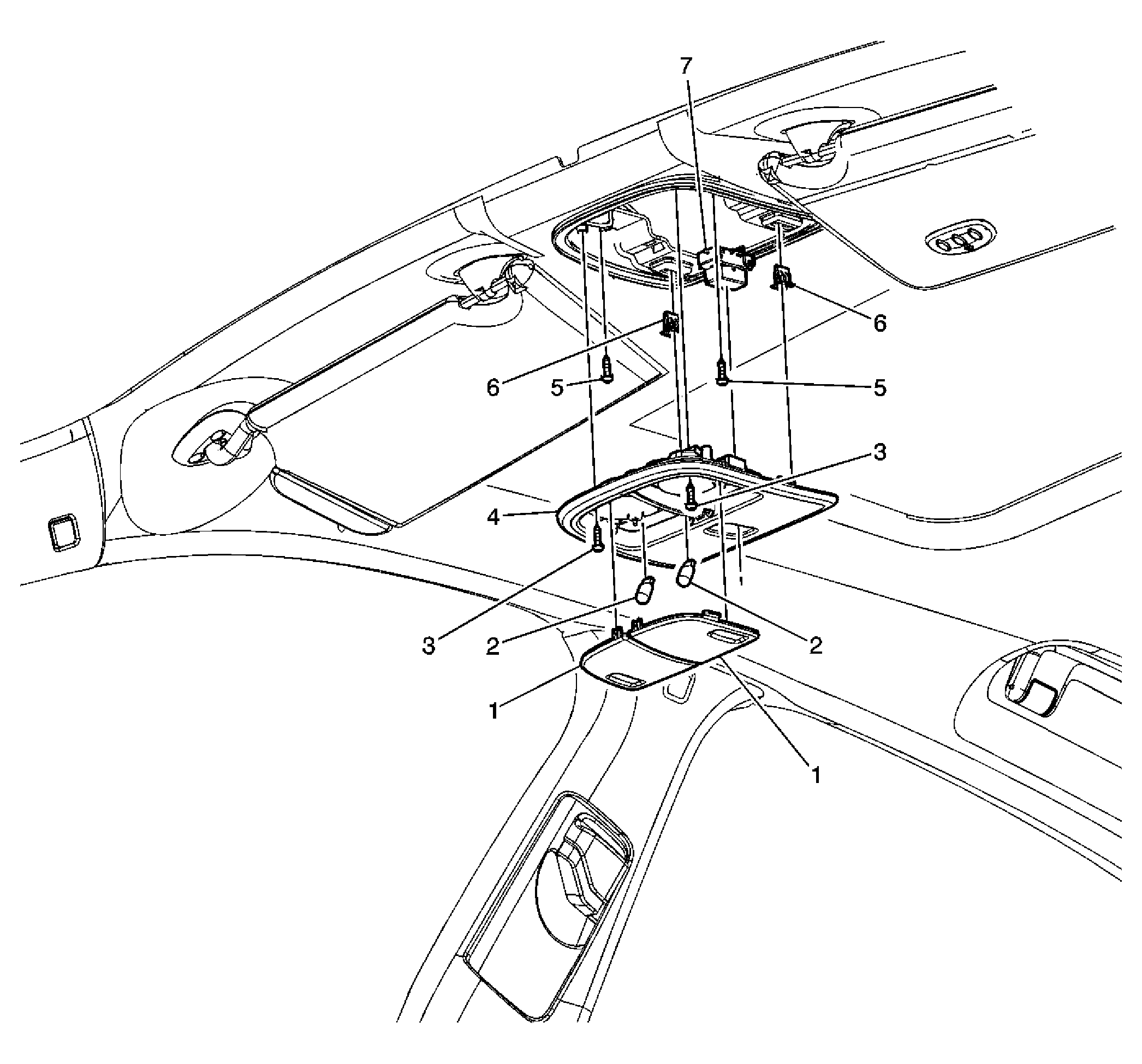

Console Replacement - Overhead
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Reading Lamp Lens Tip: Use a small flat bladed tool to release the lens from the roof console. |
| 2 | Reading Lamp Bulb (Qty: 2) |
| 3 | Roof Console Screw (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 4 | Roof Console Bezel Assembly Tip: Disconnect the electrical connectors. |
| 5 | Roof Console Screw (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 6 | Roof Console Bezel Retaining Clip (Qty: 2) |
| 7 | Sunroof Switch |
