Blower Motor Control Processor Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

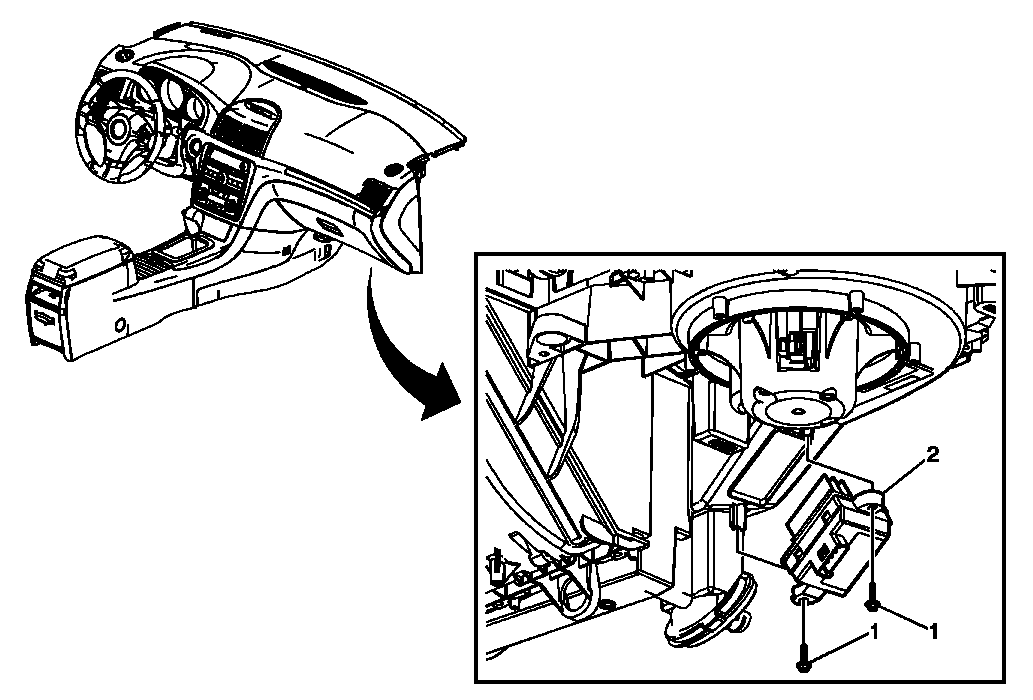

Fig 1: Blower Motor Control Processor/Resistor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right close out panel. Refer to Instrument Panel Insulator Replacement - Right Side . Disconnect the blower motor resistor electrical connector.
1	Blower Motor Resistor Screw (Qty: 2) CAUTION: Refer to Fastener Caution Tighten: 1.5 N.m (13 lb in)
2	Blower Motor Resistor

Callout

Component Name

Preliminary Procedures

Remove the right close out panel. Refer to Instrument Panel Insulator Replacement - Right Side .
Disconnect the blower motor resistor electrical connector.

Blower Motor Resistor Screw (Qty: 2)

CAUTION: Refer to Fastener Caution

Tighten: 1.5 N.m (13 lb in)

Blower Motor Resistor
