Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

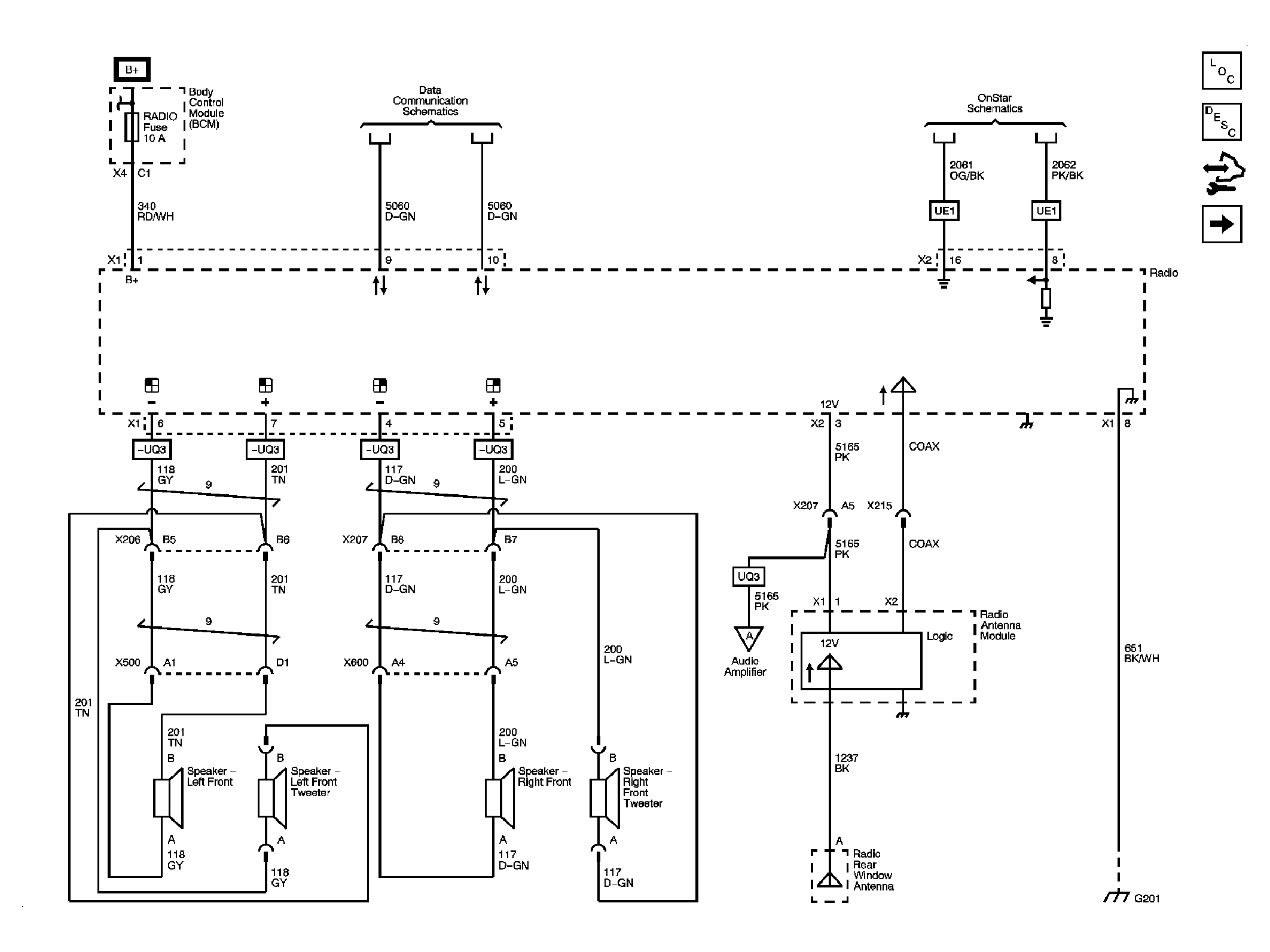

Fig 1: Power, Ground, Front Speakers, Antenna, and References

GM2253267

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Speakers (without UQ3)

GM2253272

Courtesy of GENERAL MOTORS CORP.

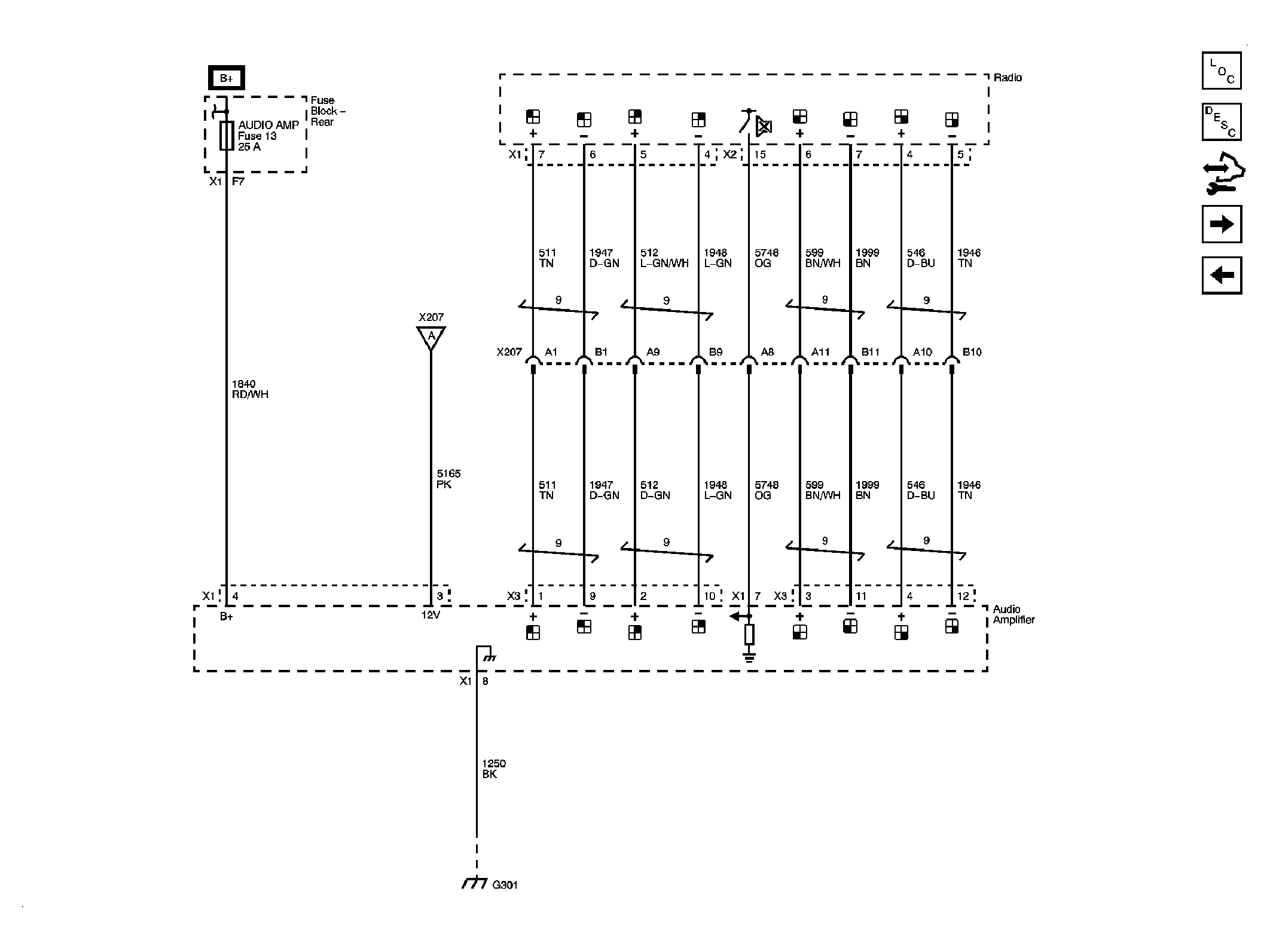

Fig 3: Amplifier (UQ3)

GM2253278

Courtesy of GENERAL MOTORS CORP.

Fig 4: Front Speakers (UQ3)

GM2253281

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Speakers (UQ3)

GM2253283

Courtesy of GENERAL MOTORS CORP.

Fig 6: Digital Radio Receiver (U2K)

GM2253286

Courtesy of GENERAL MOTORS CORP.

Fig 7: Redundant Radio Controls (UK3)

GM2253290

Courtesy of GENERAL MOTORS CORP.
