Front Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

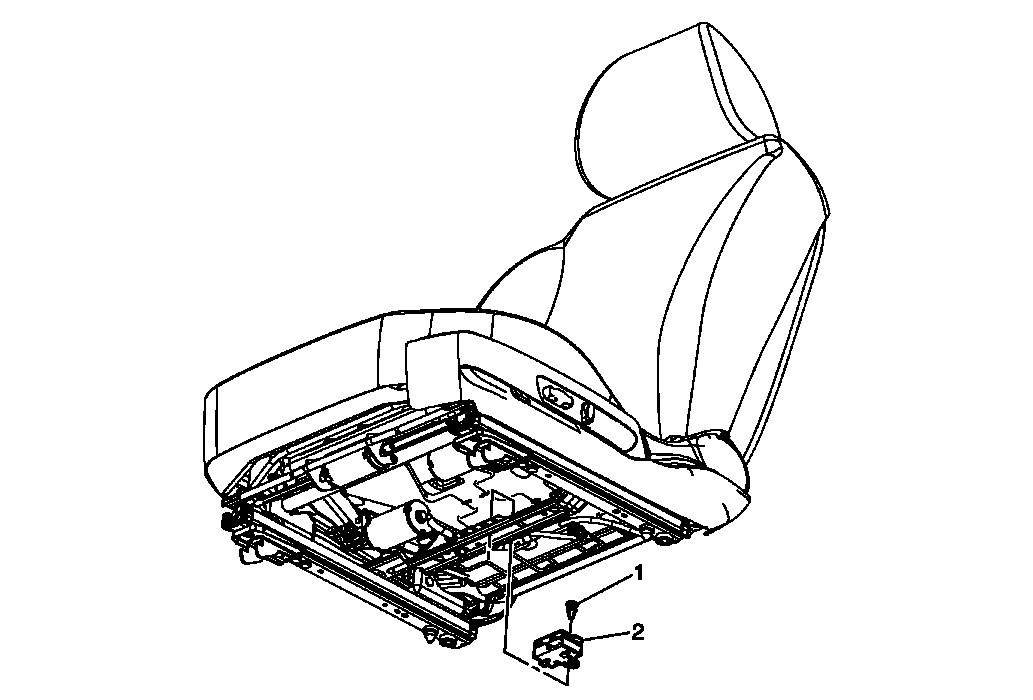

Fig 1: Front Seat Heater Control Module & Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Heater Control Module Retainer
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector.
