Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

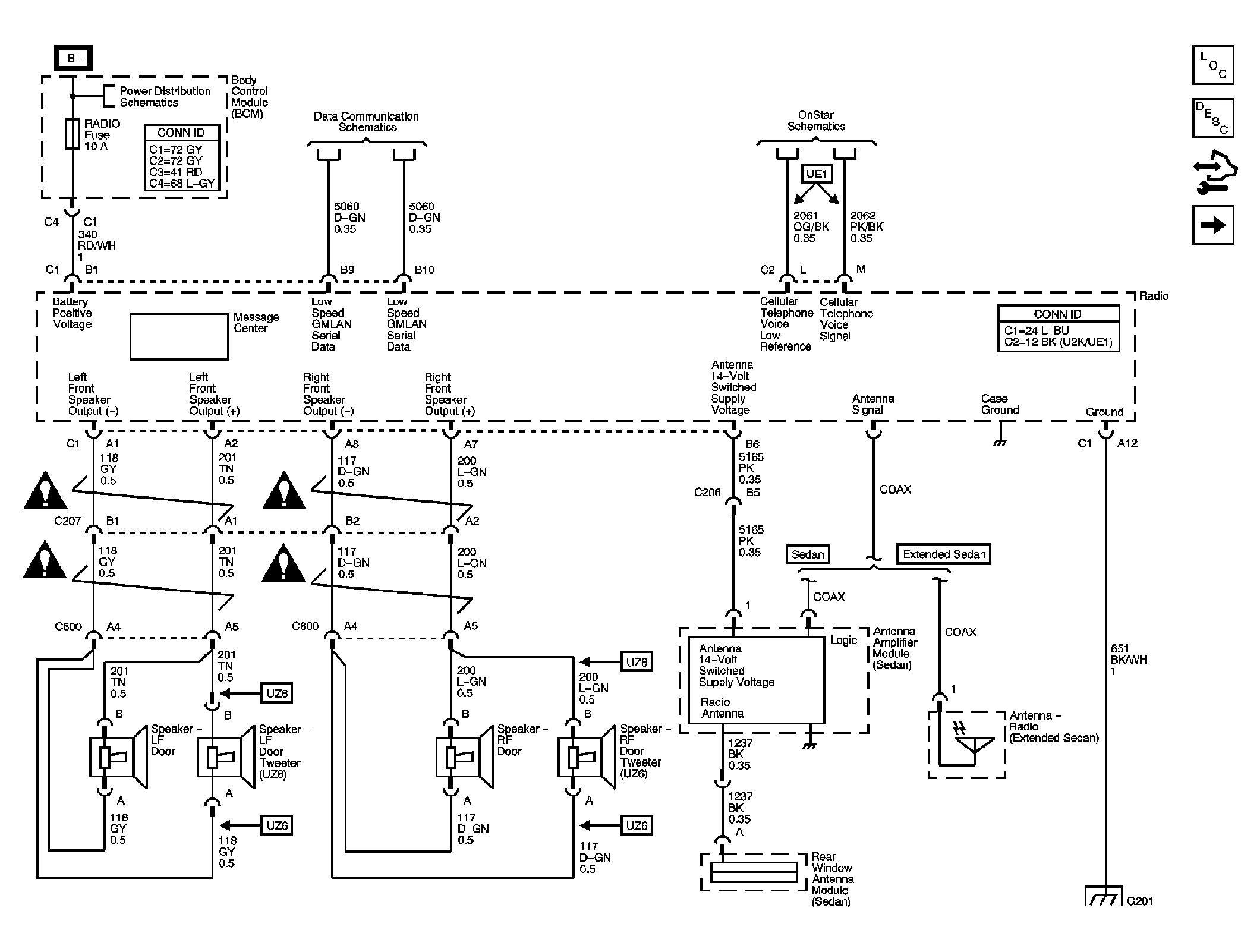

Fig 1: Power, Ground, Front Speakers, Antenna and References

GM1787451

Courtesy of GENERAL MOTORS CORP.

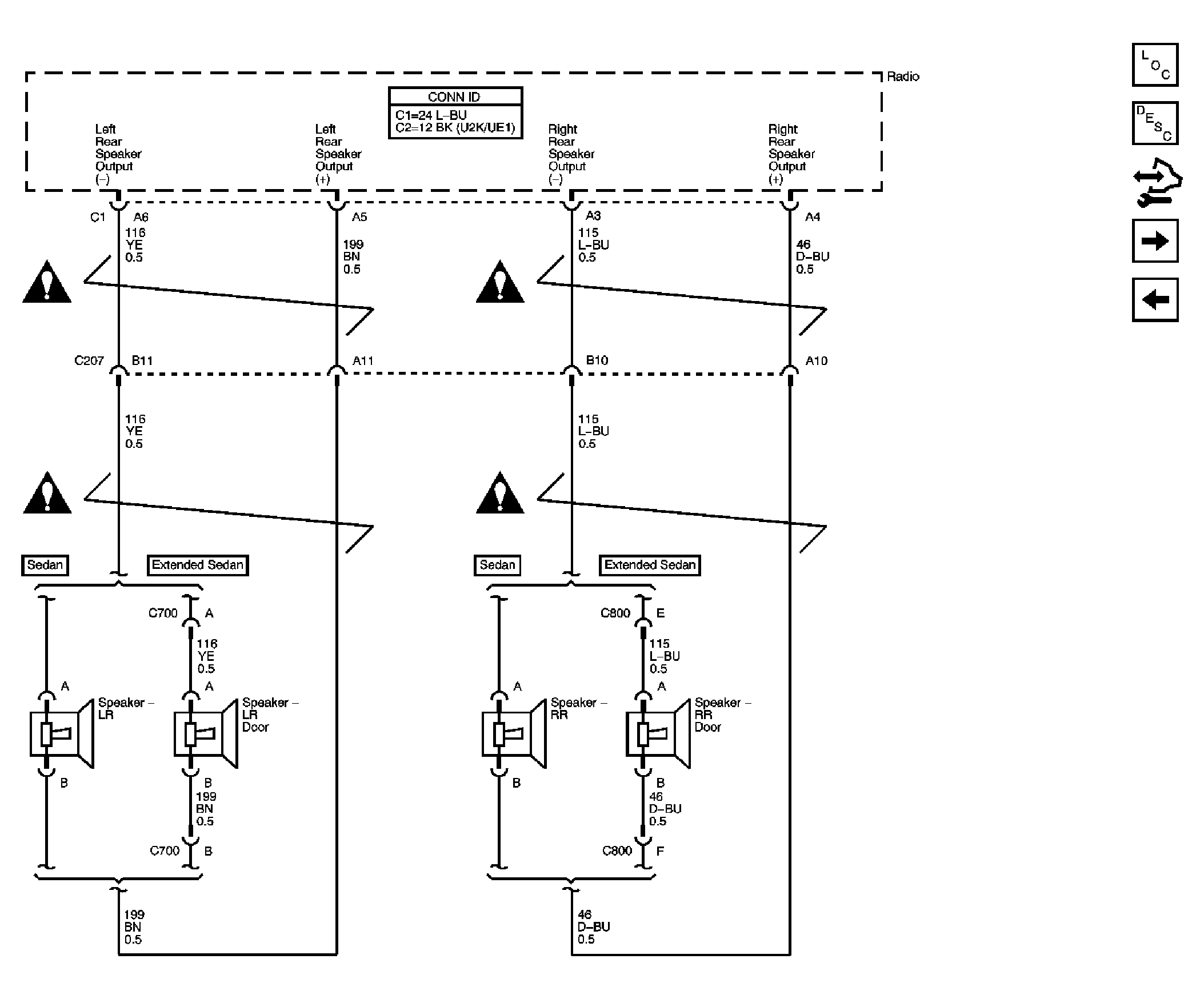

Fig 2: Rear Speakers w/o UK6, U32 or U2K

GM1787457

Courtesy of GENERAL MOTORS CORP.

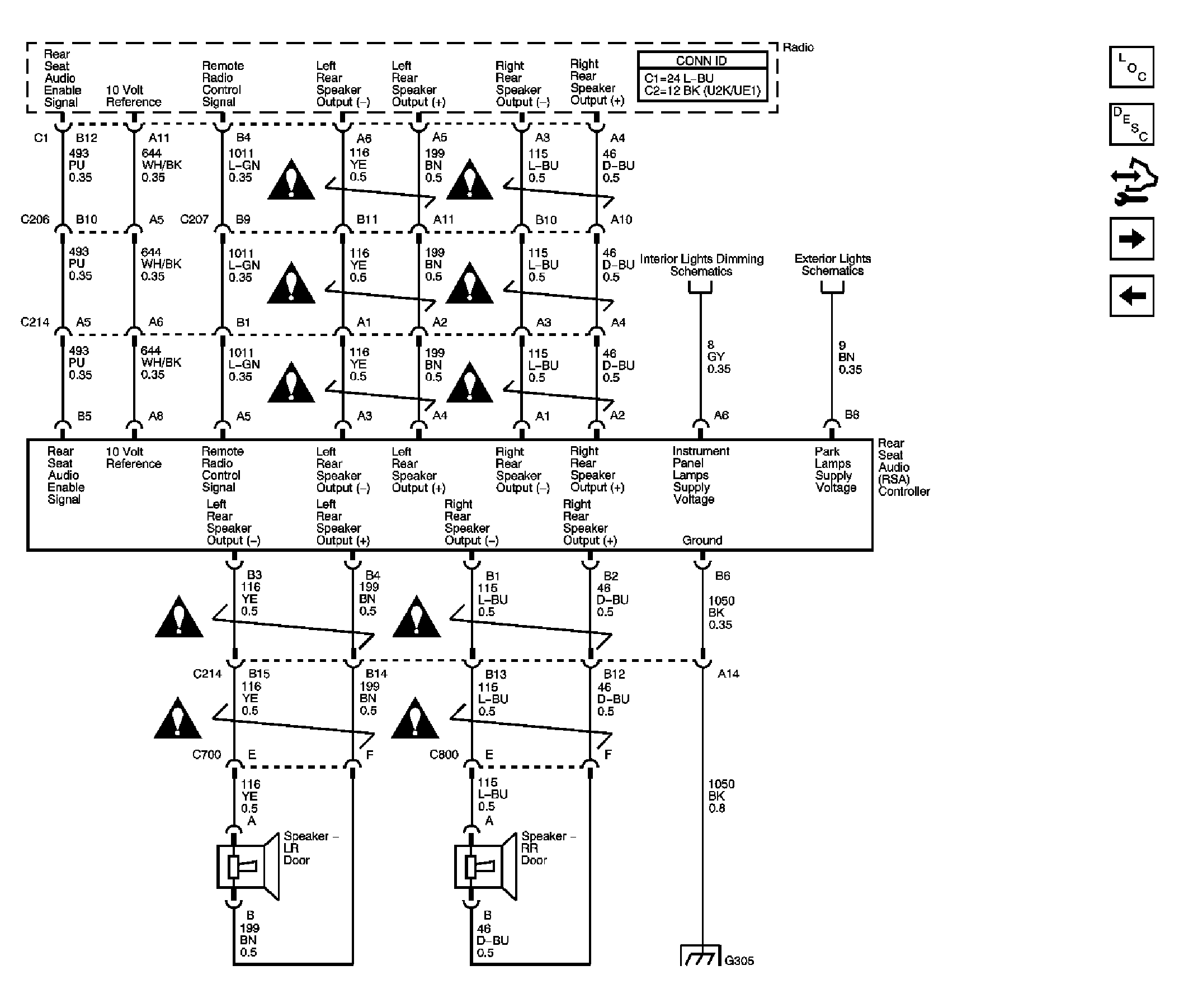

Fig 3: Rear Seat Audio (RSA) Controller

GM1787460

Courtesy of GENERAL MOTORS CORP.

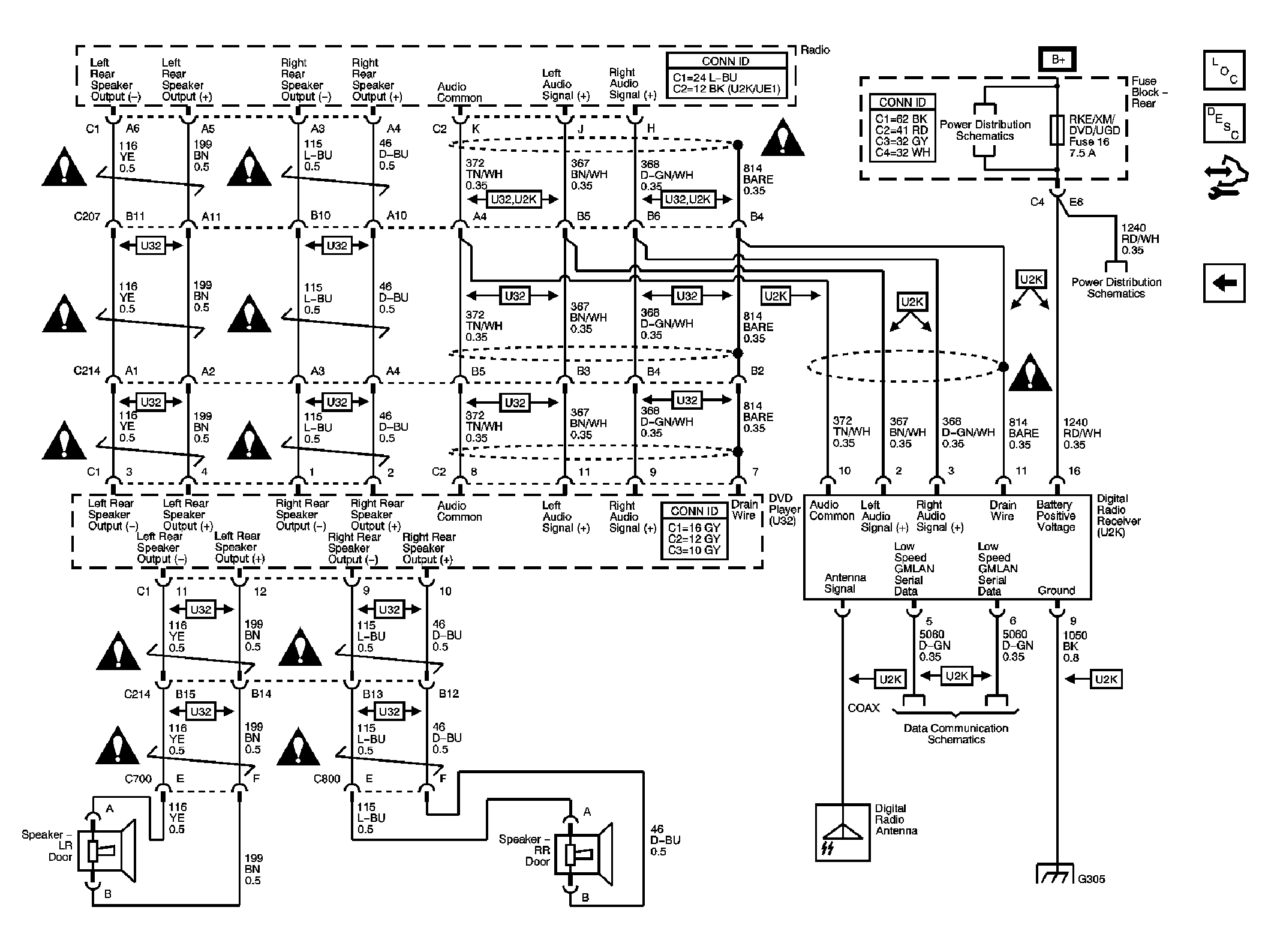

Fig 4: DVD Player and Digital Radio Receiver

GM1787461

Courtesy of GENERAL MOTORS CORP.

Fig 5: Redundant Radio Controls (3-Spoke)

GM1787462

Courtesy of GENERAL MOTORS CORP.

Fig 6: Redundant Radio Controls (4-Spoke)

GM1787464

Courtesy of GENERAL MOTORS CORP.
