Horns Component Views

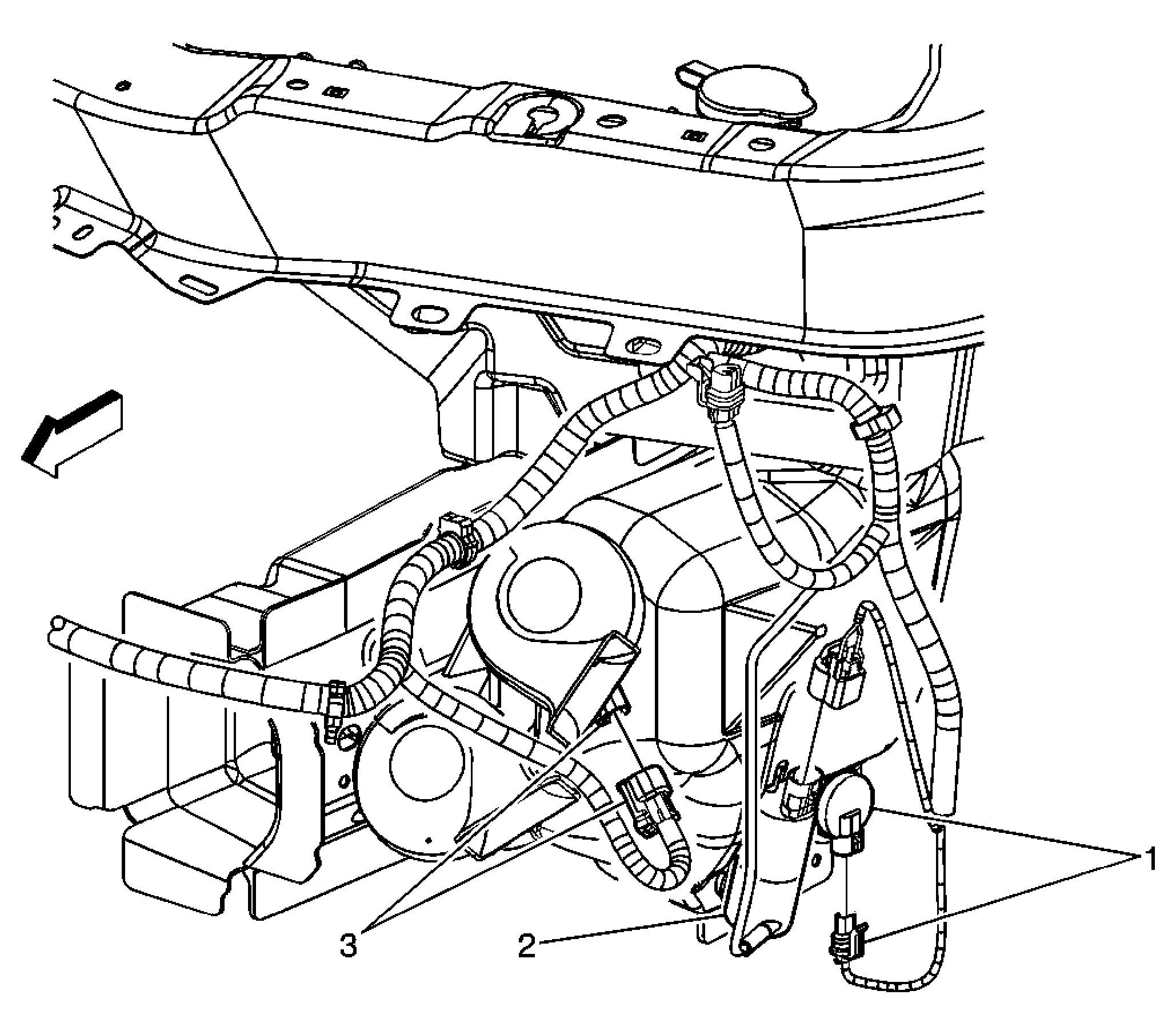

Fig 1: Left Front Fender Well

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Fluid Pump
3	Horn Assembly

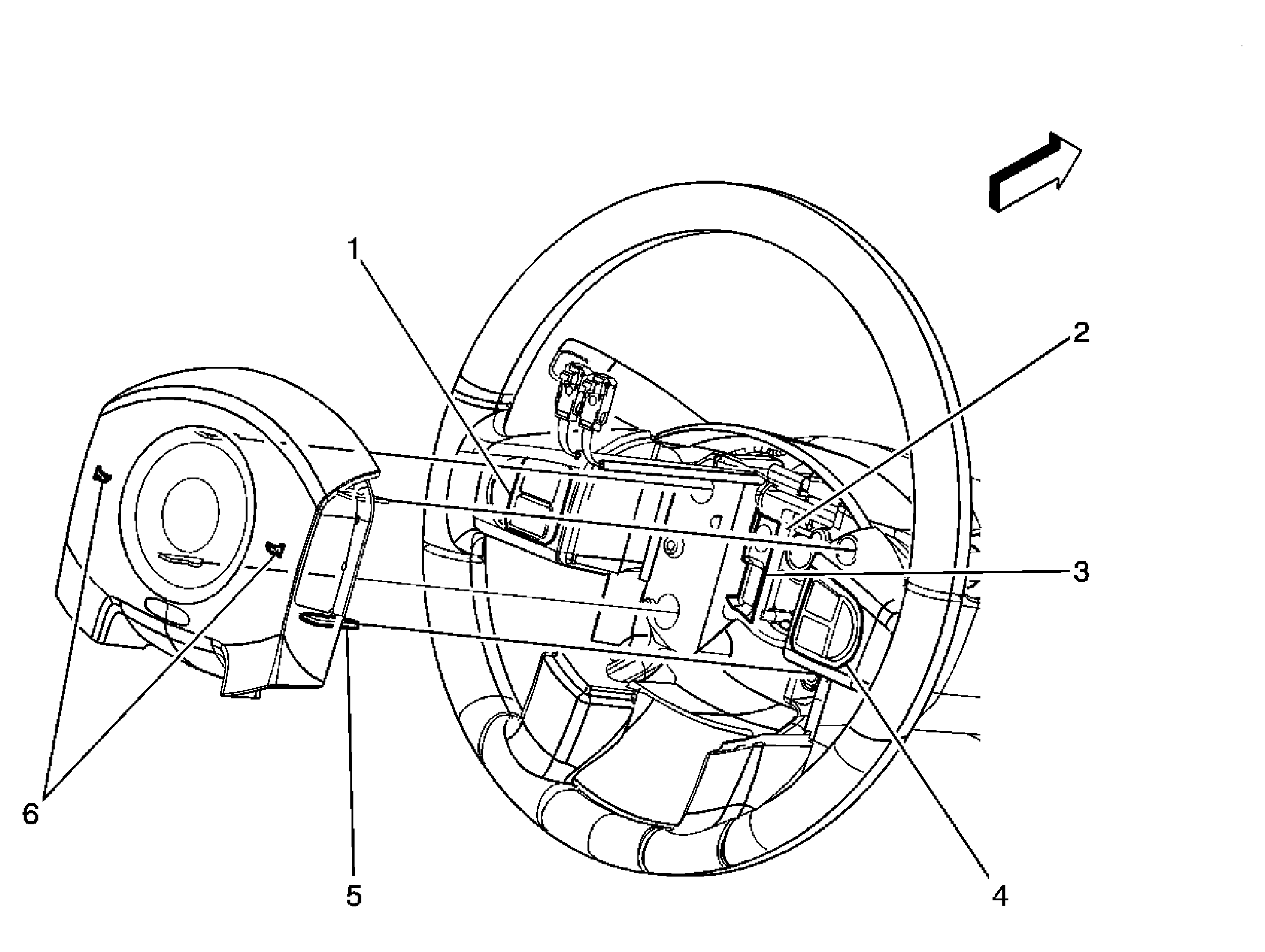

Fig 2: Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left
2	G216
3	Horn Switch
4	Steering Wheel Controls - Right
5	Inflatable Restraint Steering Wheel Module
6	Horn Buttons
