Installation Procedure

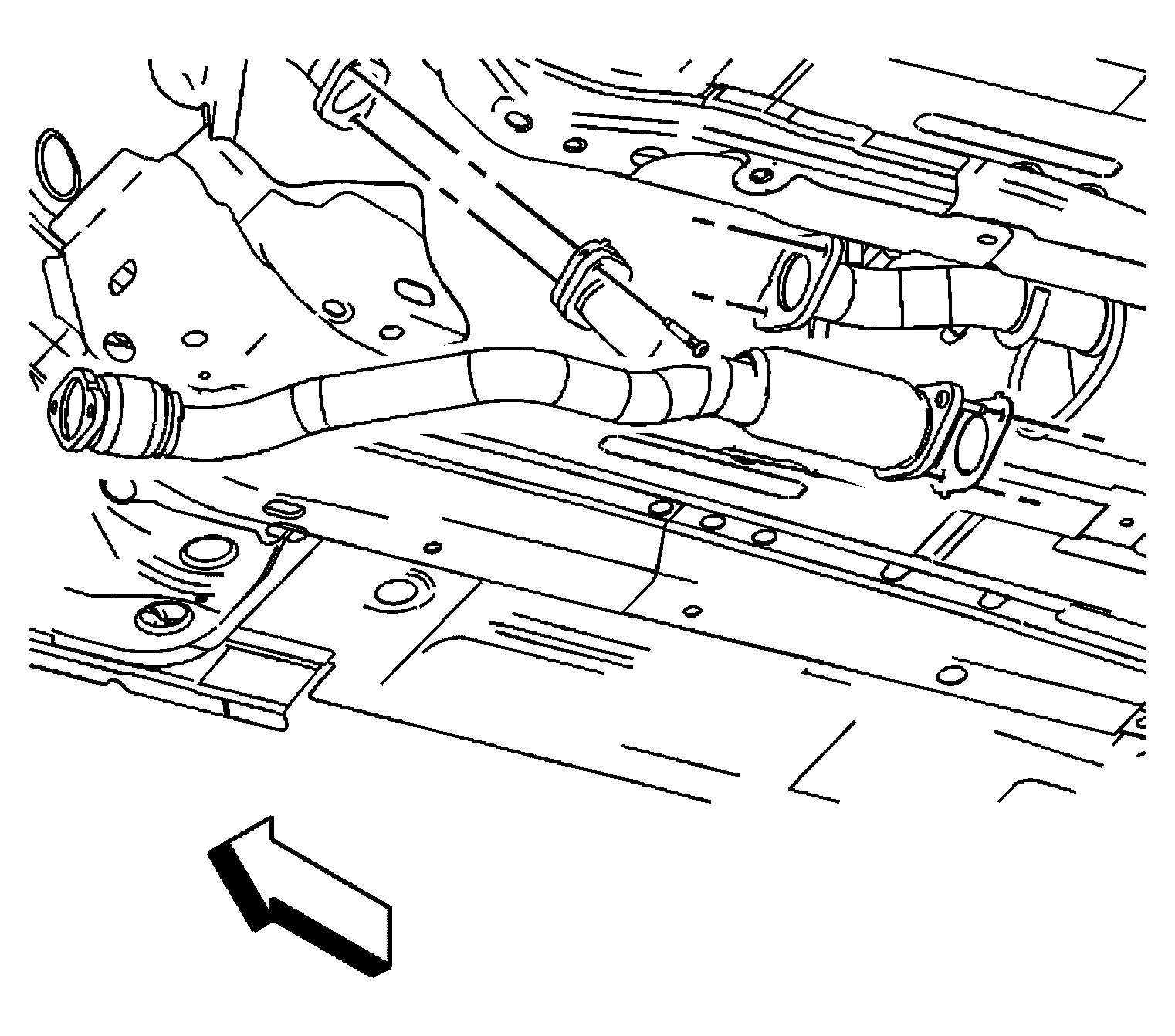

    Fig 1: Installing Exhaust Crossover Pipe
    GM1238994Courtesy of GENERAL MOTORS CORP.
  1. Using new gaskets, install the exhaust crossover pipe.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the exhaust crossover pipe nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).
