Fuel Hose/Pipes Routing Diagram

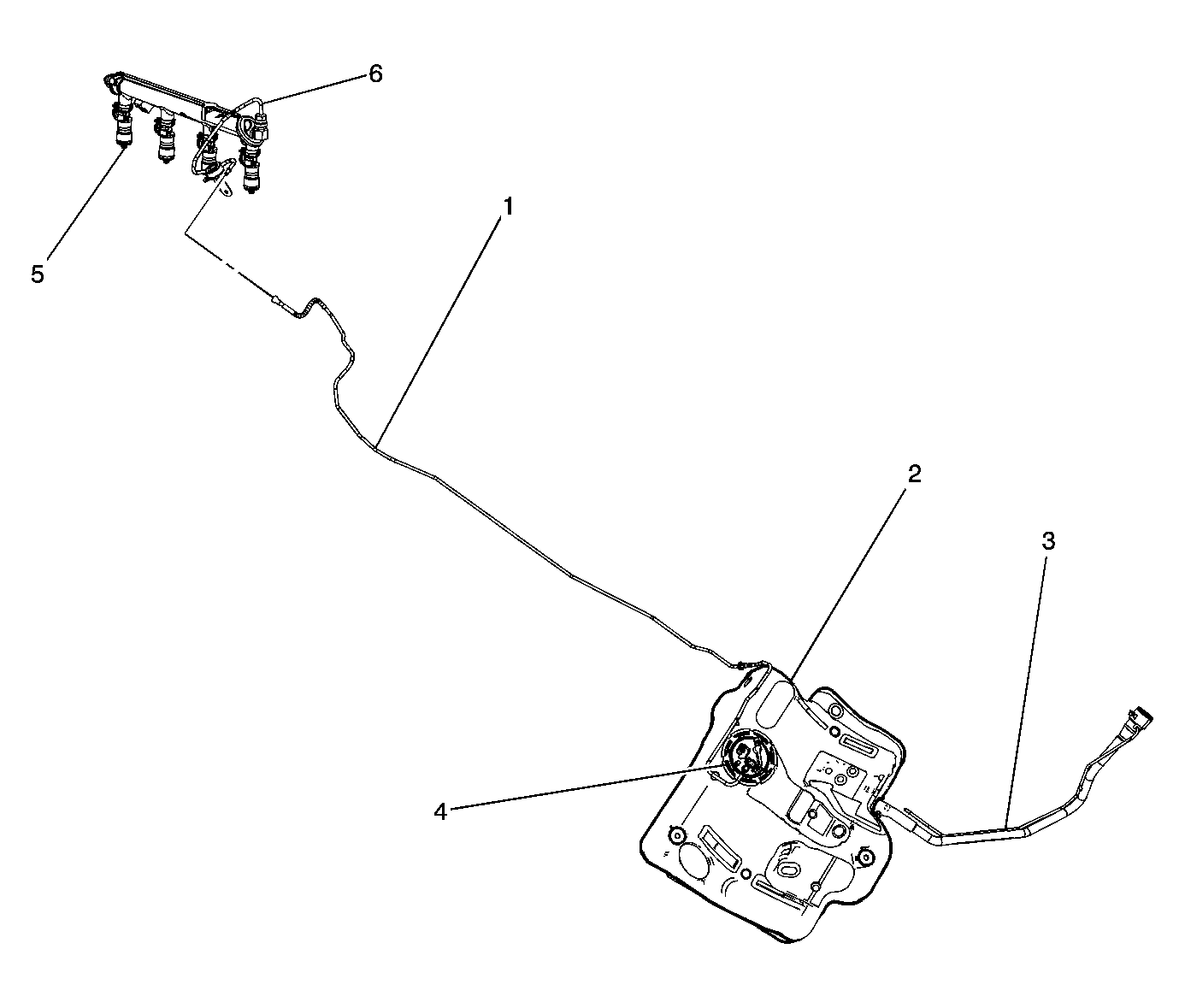

Fig 1: View Of Fuel Hose/Pipes Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Fuel Feed Pipe
2	Fuel Tank
3	Fuel Fill Pipe
4	Fuel Sender Assembly
5	Fuel Rail Assembly
6	Engine Compartment Fuel Feed Pipe
