Seat Belt Component Views

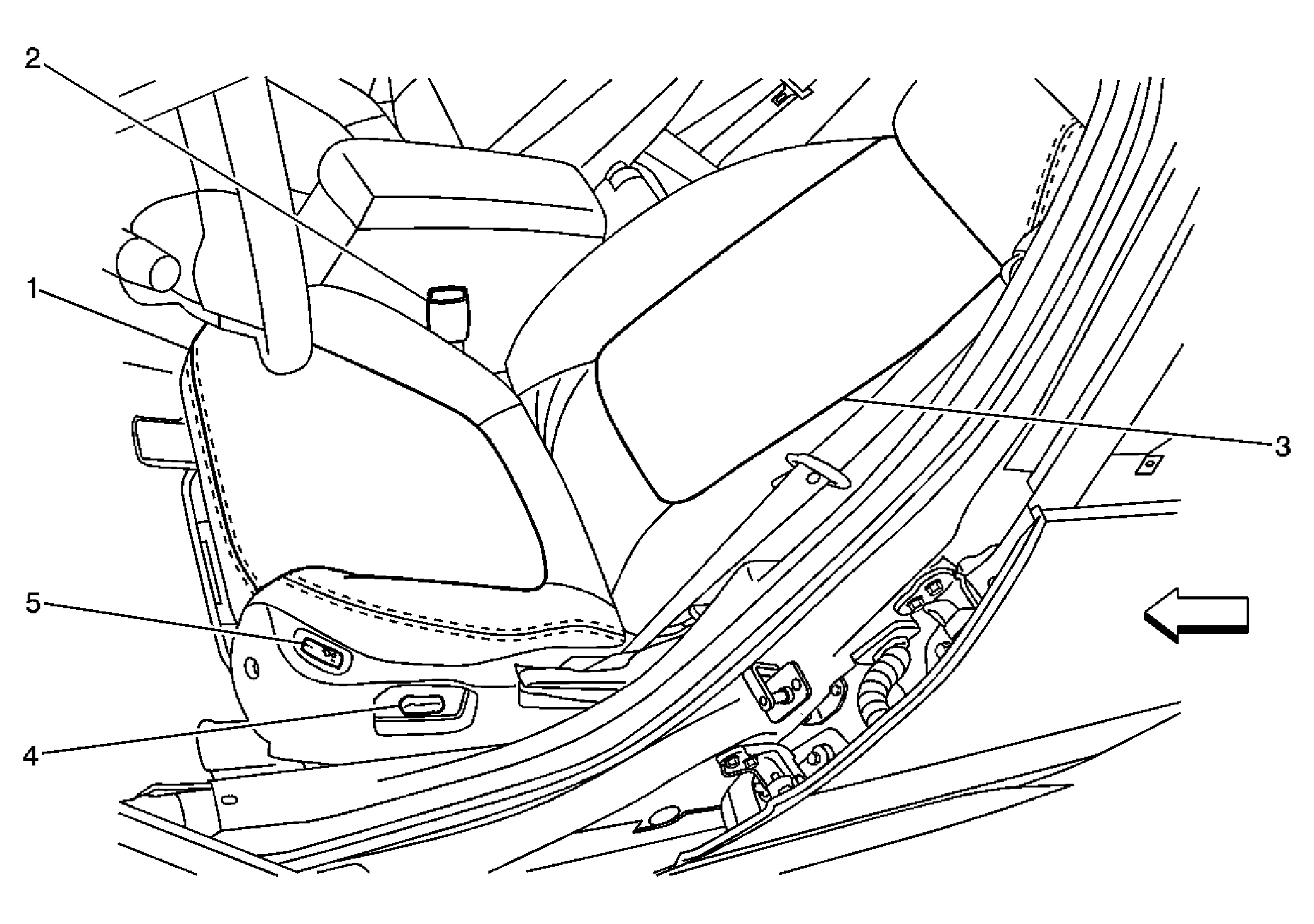

Fig 1: View Of Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Cushion (KA1)
2	Seat Belt Switch
3	Heated Seat Element - Driver Back (KA1)
4	Seat Adjuster Switch - Driver (AG1/ASN)
5	Heated Seat Switch - Driver (KA1)
