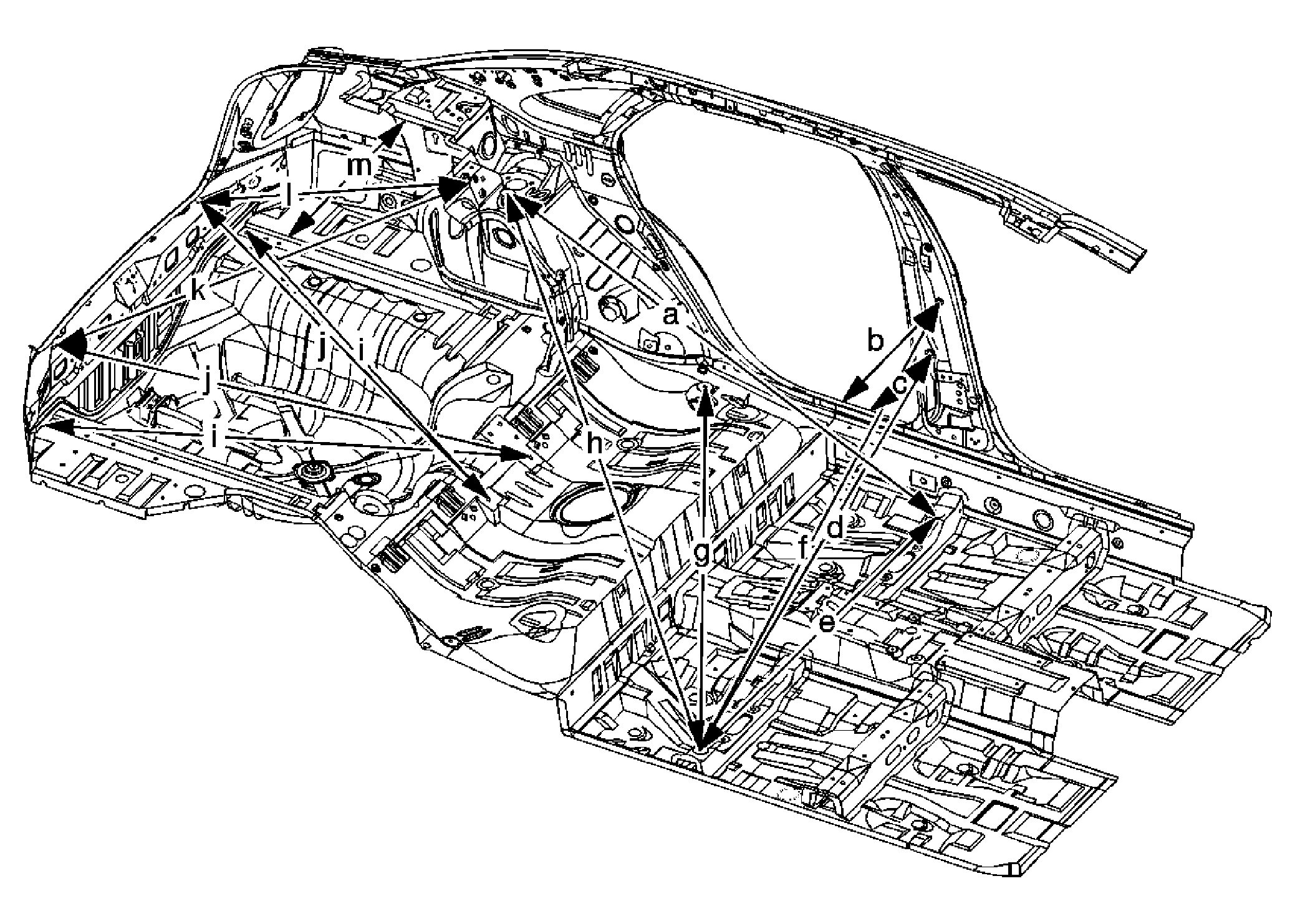

Dimensions - Frame: Floor
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 1,340.2 | 52.76 |
| B | 1,385.8 | 54.90 |
| C | 1,394.5 | 54.90 |
| D | 1,348.4 | 53.08 |
| E | 1,180 | 46.45 |
| F | 1,404 | 55.27 |
| G | 1,412.9 | 55.62 |
| H | 1,734.9 | 68.30 |
| I | 1,191.8 | 46.92 |
| J | 1,120.7 | 48.05 |
| K | 1,108.9 | 43.65 |
| L | 812.7 | 31.99 |
| M | 1,380 | 54.33 |
