Seat Belt Component Views

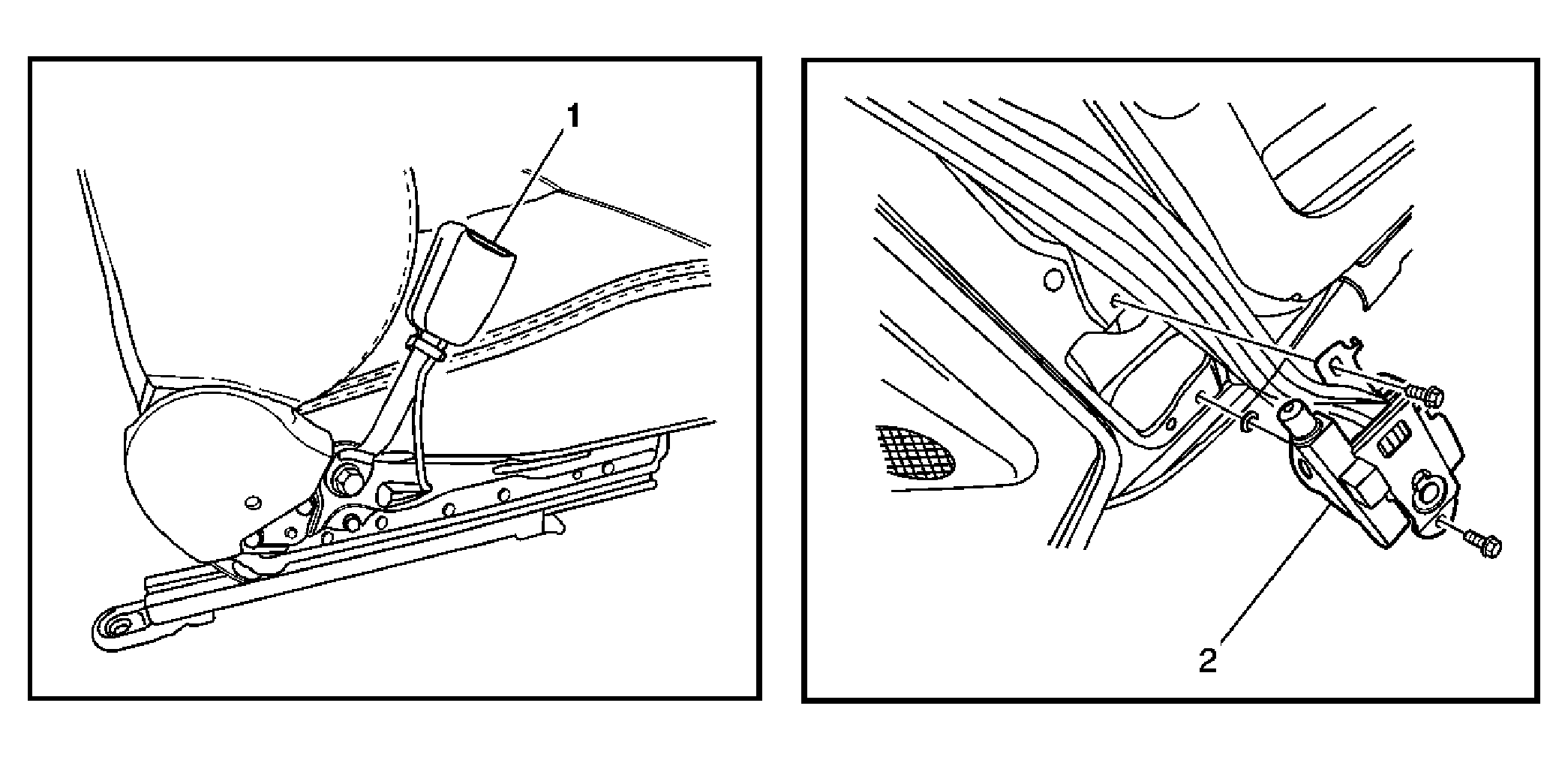

Fig 1: View Of Seat Belt Switch And Seat Belt Pretensioner
GM1480999Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Seat Belt Pretensioner - Driver and Passenger
